Philips MC145 - Disassembly Instructions - Internal Components; Remove CDM, Back Cabinet, and PCB Bracket; Remove Cassette Board and Front PCB Assembly

4 - 2
DISASSEMBLY INSTRUCTION
4 - 2
E1
D1

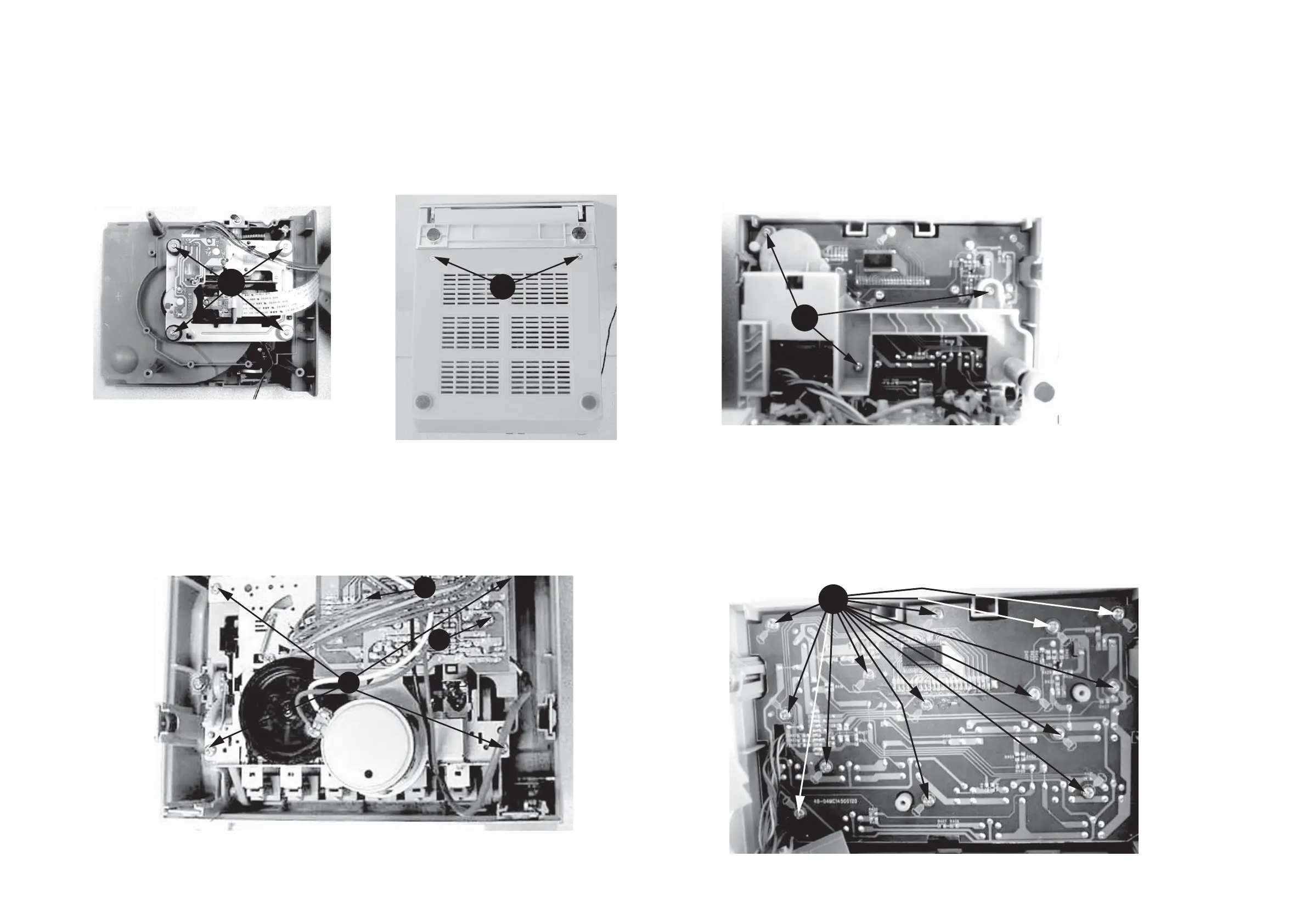

D. Remove CDM
D: Remove special screws (4 pcs)
E. Remove Back Cabinet
E1: Remove screws T3x8 (2 pcs)
F2
F1
F3
F. Remove Cassette Board Assy and Tape Deck
F1: Remove screw T3x8 (1 pc)
F2: Remove screw M3x6 (1 pc)
F3: Remove screws T3x10 (4 pcs)
G1
G. Remove PCB Bracket
G1: Remove screws T3x8 (3 pcs)
H1
H. Remove Front PCB Assembly
H1: Remove screws T3x8 (14 pcs)
