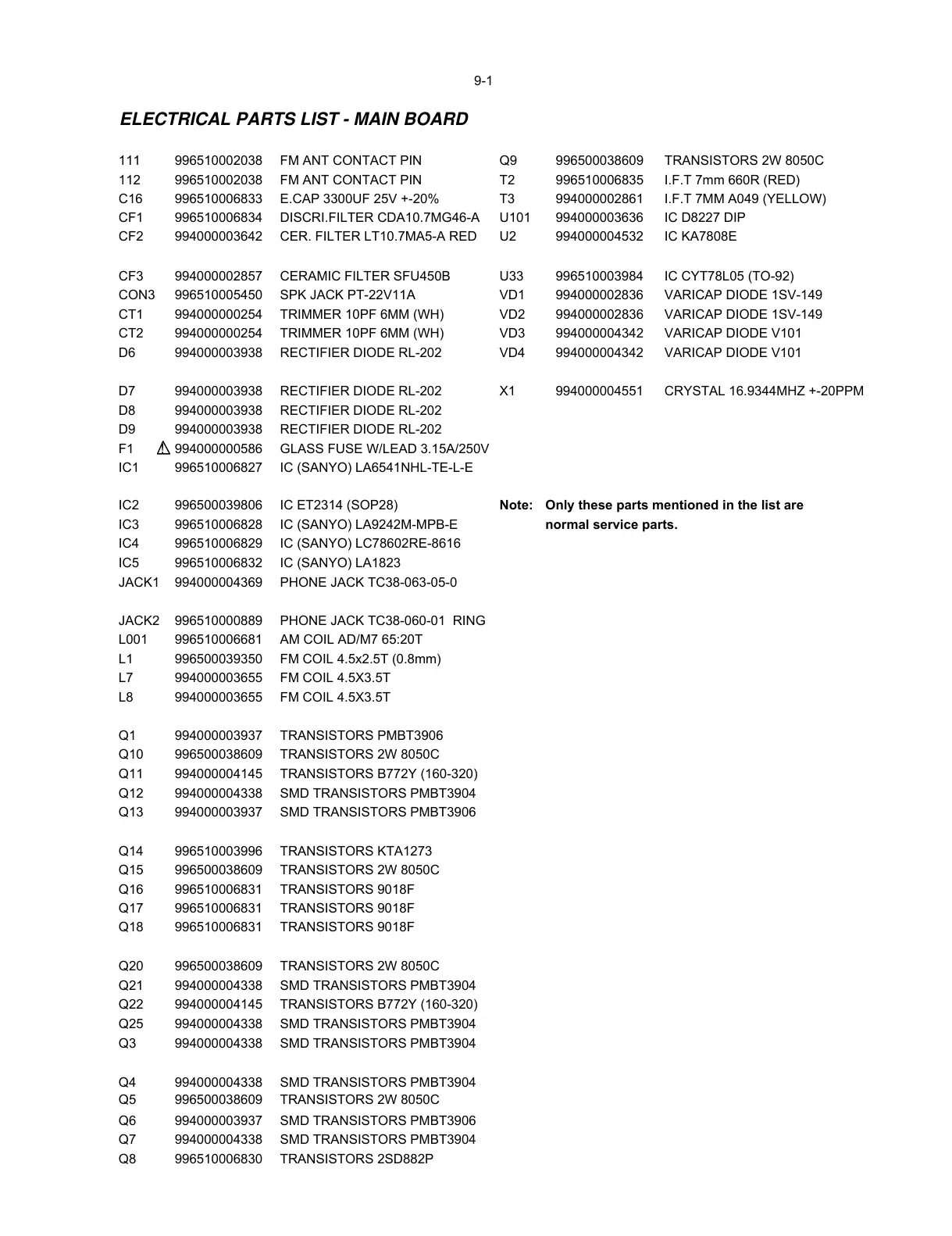

ELECTRICAL PARTS LIST - MAIN BOARD
111 996510002038 FM ANT CONTACT PIN Q9 996500038609 TRANSISTORS 2W 8050C
112 996510002038 FM ANT CONTACT PIN T2 996510006835 I.F.T 7mm 660R (RED)
C16 996510006833 E.CAP 3300UF 25V +-20% T3 994000002861 I.F.T 7MM A049 (YELLOW)
CF1 996510006834 DISCRI.FILTER CDA10.7MG46-A U101 994000003636 IC D8227 DIP
CF2 994000003642 CER. FILTER LT10.7MA5-A RED U2 994000004532 IC KA7808E
CF3 994000002857 CERAMIC FILTER SFU450B U33 996510003984 IC CYT78L05 (TO-92)
CON3 996510005450 SPK JACK PT-22V11A VD1 994000002836 VARICAP DIODE 1SV-149
CT1 994000000254 TRIMMER 10PF 6MM (WH) VD2 994000002836 VARICAP DIODE 1SV-149
CT2 994000000254 TRIMMER 10PF 6MM (WH) VD3 994000004342 VARICAP DIODE V101
D6 994000003938 RECTIFIER DIODE RL-202 VD4 994000004342 VARICAP DIODE V101
D7 994000003938 RECTIFIER DIODE RL-202 X1 994000004551 CRYSTAL 16.9344MHZ +-20PPM
D8 994000003938 RECTIFIER DIODE RL-202
D9 994000003938 RECTIFIER DIODE RL-202
F1 ! 994000000586 GLASS FUSE W/LEAD 3.15A/250V
IC1 996510006827 IC (SANYO) LA6541NHL-TE-L-E
IC2 996500039806 IC ET2314 (SOP28) Note: Only these parts mentioned in the list are
IC3 996510006828 IC (SANYO) LA9242M-MPB-E normal service parts.
IC4 996510006829 IC (SANYO) LC78602RE-8616
IC5 996510006832 IC (SANYO) LA1823
JACK1 994000004369 PHONE JACK TC38-063-05-0
JACK2 996510000889 PHONE JACK TC38-060-01 RING
L001 996510006681 AM COIL AD/M7 65:20T
L1 996500039350 FM COIL 4.5x2.5T (0.8mm)
L7 994000003655 FM COIL 4.5X3.5T
L8 994000003655 FM COIL 4.5X3.5T
Q1 994000003937 TRANSISTORS PMBT3906
Q10 996500038609 TRANSISTORS 2W 8050C
Q11 994000004145 TRANSISTORS B772Y (160-320)
Q12 994000004338 SMD TRANSISTORS PMBT3904
Q13 994000003937 SMD TRANSISTORS PMBT3906
Q14 996510003996 TRANSISTORS KTA1273
Q15 996500038609 TRANSISTORS 2W 8050C
Q16 996510006831 TRANSISTORS 9018F
Q17 996510006831 TRANSISTORS 9018F
Q18 996510006831 TRANSISTORS 9018F
Q20 996500038609 TRANSISTORS 2W 8050C
Q21 994000004338 SMD TRANSISTORS PMBT3904
Q22 994000004145 TRANSISTORS B772Y (160-320)
Q25 994000004338 SMD TRANSISTORS PMBT3904
Q3 994000004338 SMD TRANSISTORS PMBT3904
Q4 994000004338 SMD TRANSISTORS PMBT3904
Q5 996500038609 TRANSISTORS 2W 8050C
Q6 994000003937 SMD TRANSISTORS PMBT3906
Q7 994000004338 SMD TRANSISTORS PMBT3904
Q8 996510006830 TRANSISTORS 2SD882P
