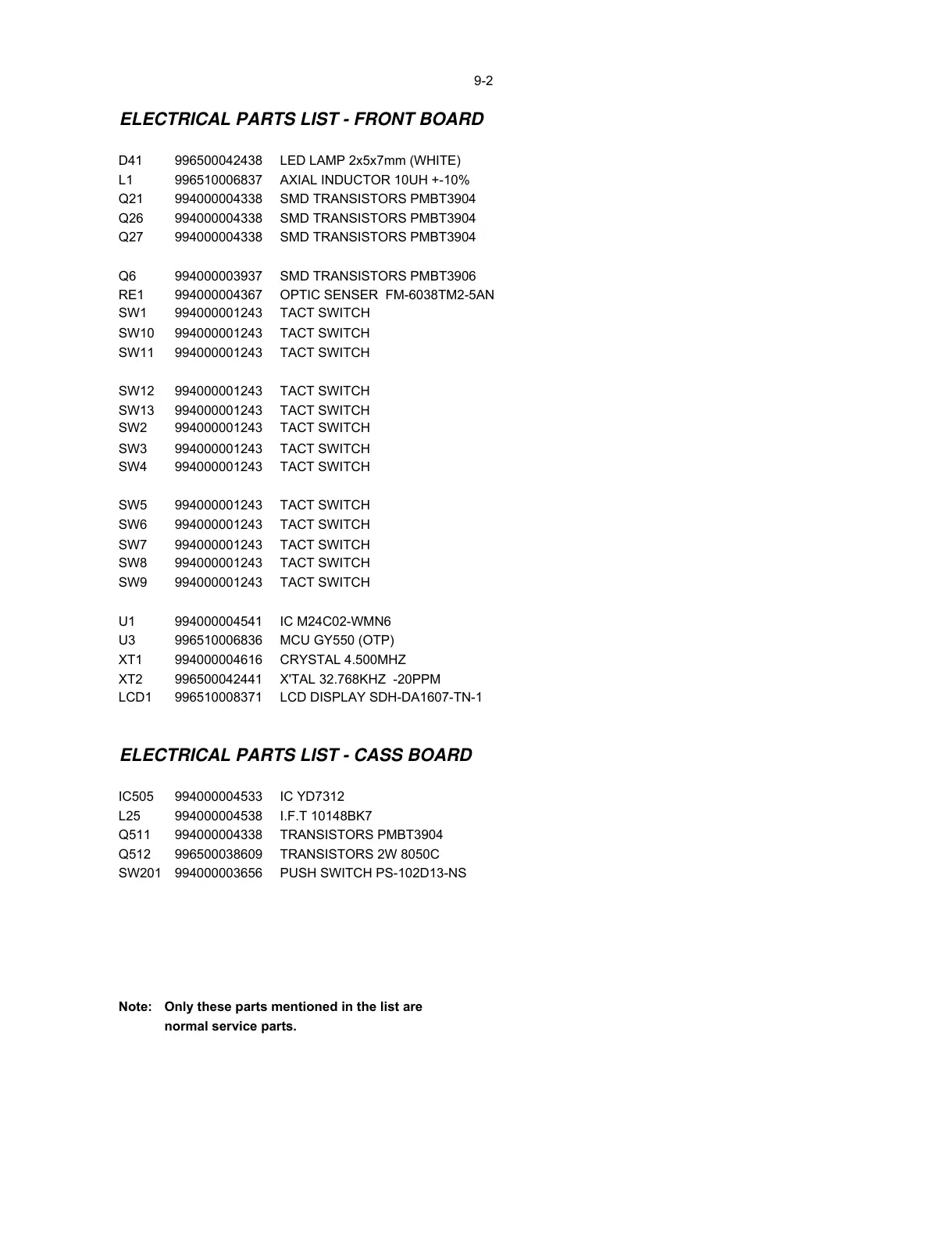

ELECTRICAL PARTS LIST - FRONT BOARD
D41 996500042438 LED LAMP 2x5x7mm (WHITE)
L1 996510006837 AXIAL INDUCTOR 10UH +-10%
Q21 994000004338 SMD TRANSISTORS PMBT3904
Q26 994000004338 SMD TRANSISTORS PMBT3904
Q27 994000004338 SMD TRANSISTORS PMBT3904
Q6 994000003937 SMD TRANSISTORS PMBT3906
RE1 994000004367 OPTIC SENSER FM-6038TM2-5AN
SW1 994000001243 TACT SWITCH
SW10 994000001243 TACT SWITCH
SW11 994000001243 TACT SWITCH
SW12 994000001243 TACT SWITCH
SW13 994000001243 TACT SWITCH
SW2 994000001243 TACT SWITCH
SW3 994000001243 TACT SWITCH
SW4 994000001243 TACT SWITCH
SW5 994000001243 TACT SWITCH
SW6 994000001243 TACT SWITCH
SW7 994000001243 TACT SWITCH
SW8 994000001243 TACT SWITCH
SW9 994000001243 TACT SWITCH
U1 994000004541 IC M24C02-WMN6
U3 996510006836 MCU GY550 (OTP)
XT1 994000004616 CRYSTAL 4.500MHZ
XT2 996500042441 X'TAL 32.768KHZ -20PPM
LCD1 996510008371 LCD DISPLAY SDH-DA1607-TN-1
ELECTRICAL PARTS LIST - CASS BOARD
IC505 994000004533 IC YD7312
L25 994000004538 I.F.T 10148BK7
Q511 994000004338 TRANSISTORS PMBT3904
Q512 996500038609 TRANSISTORS 2W 8050C
SW201 994000003656 PUSH SWITCH PS-102D13-NS
Note: Only these parts mentioned in the list are
normal service parts.
