Philips MCM128B - Disassembly Procedures; Bottom Cabinet Removal; Front Cabinet and Main Board Removal

DISASSEMBLY DIAGRAM

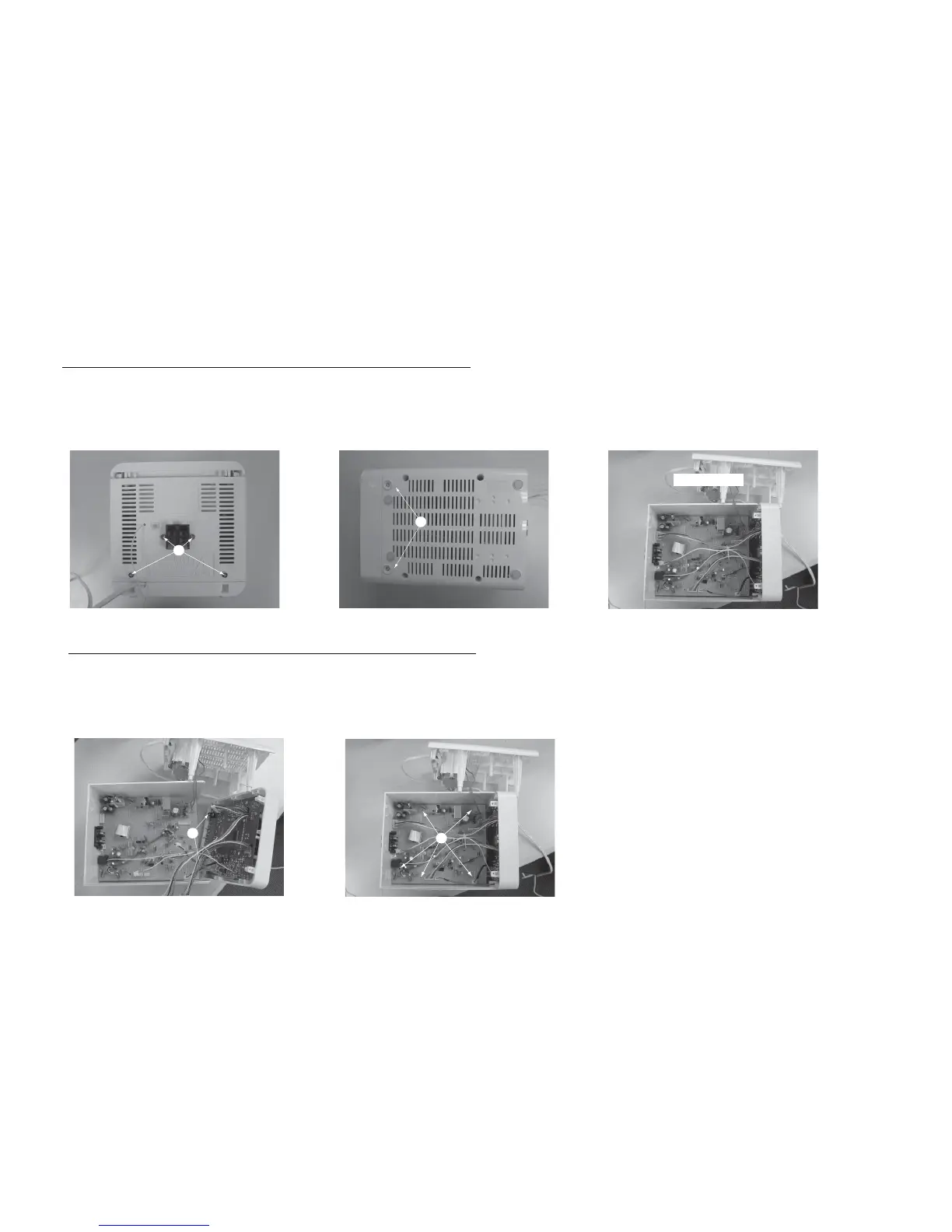

Dismantling of the Bottom Cabinet
1) Remove 4 screws A as indicated to loosen the Rear Cabinet.
2)
Remove 2 screws B as indicated to loosen the Bottom Cabinet.
Dismantling of the Front Cabinet and Main Board
1) Remove 2 screws C as indicated to loosen the Front Cabinet.
2)
Remove 5 screws D as indicated to loosen the Main Board.
A
B
BOTTOM CAB.
C
E
5 - 1 5 - 1
