Philips OccuSwitch LRM1070/00 - IRT9090 Remote Control Operations; Setting Light Level and Power-Up Behavior

Product Guide - LRM1070, LRM1080 7
Set required light level
Make certain that the required light level is available
and no daylight is entering the area.

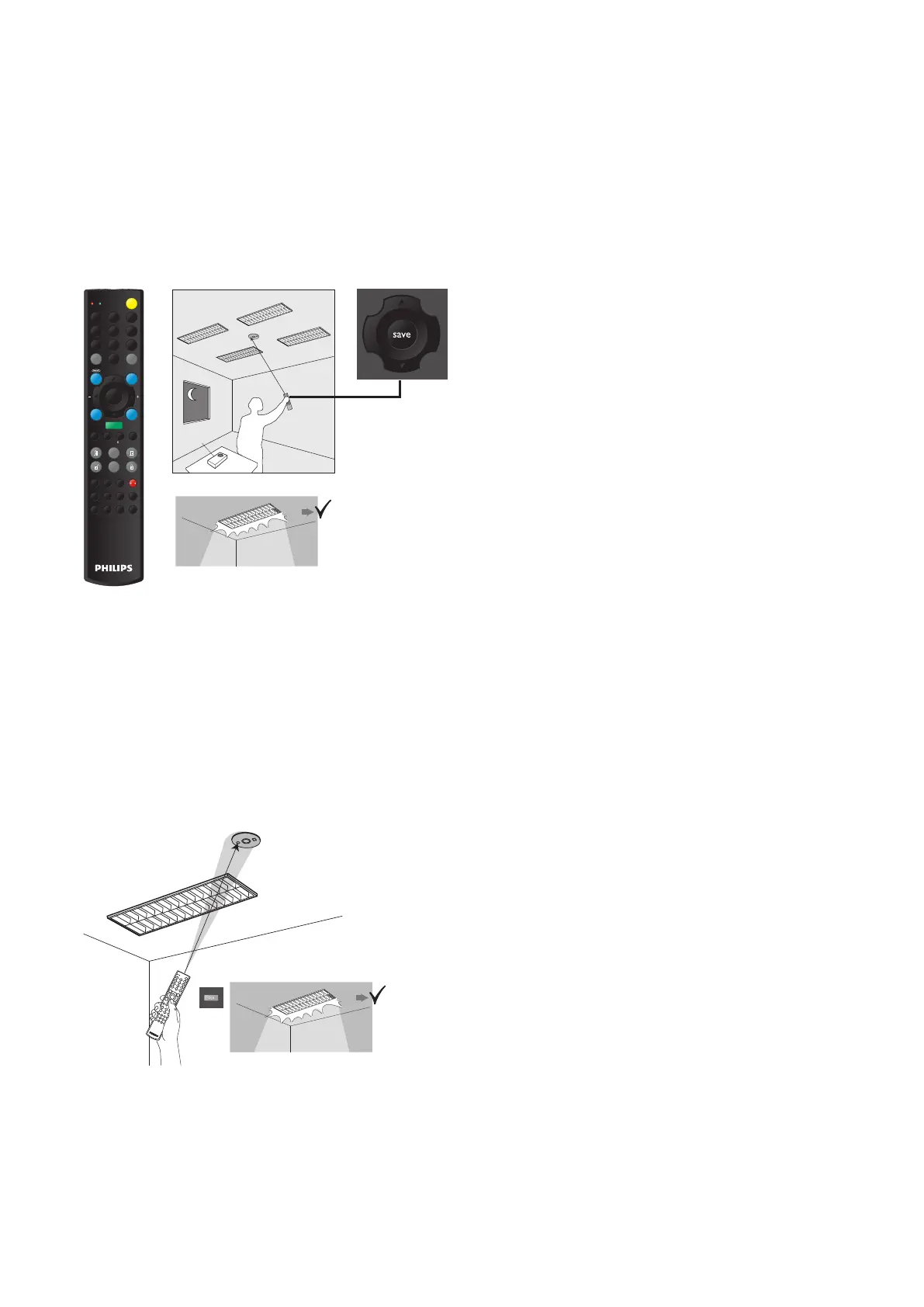

Calibrate by aiming the IRT9090 towards the
OccuSwitch and pressing the “save” button.
The lights will ash once to indicate the new level is
stored.
IRT9090 Calibrate light level
Change IR group
Both the OccuSwitch and remote controls can operate
in 7 dierent groups. Both the remote controls and
OccuSwitch must be in the same group.
Select the “IR group” button on the IRT9090, followed
by the desired IR group (A-G, buttons 1 to 7).
Aim the IRT9090 towards the OccuSwitch and press
the green “send” button. The lights will ash once to
indicate the new setting is stored.
Send command
Change power-up behaviour
The OccuSwitch switches the output on when it is
connected to the mains. If the area is vacated the
lights will switch o after 5 minutes.
It is possible to leave the output o and start
movement detection 30 seconds after the mains is
connected.
On the IRT9090 select the “power up” button,
followed by either “on” or “o”. Aim the IRT9090
towards the OccuSwitch and press the green “send”
button. The lights will ash once to indicate the new
setting is stored.
Restore defaults
To restore the default settings, aim the IRT9090
towards the OccuSwitch and press the “reset” button.
D Note
The IRT9090 will send the power on and IR group
settings together (if changed). To erase previous
settings press “reset” followed by “send” on the
IRT9090.
B Warnings
The OccuSwitch should not be used in the
following situations:
• In applications outside the specication range,
most notable heights above 3,5 meter.
• Environmental conditions other than in a normal
oce environment (temperature, humidity).
• In applications with heat sources like electrical
heaters, within the detection range of the
OccuSwitch.
• In combination with lighting sources, or other
devices, that can be damaged if they are
switched o and on in a short period of time.
B Warnings advanced version
The OccuSwitch should not be used in the
following situations
• In applications with (semi-continuous)
IR appliances like IRDA communication,
IR communication between PDA and phones
and other devices, headsets operating
with IR communication, etc. Please note
that some devices with IR communication
send IR messages, even when there is no
communication link. These features must be
disabled.
• In applications with electronic ballasts that
operate up to or near the IR transmission
frequency of 36Khz. Also when these
ballasts are not used in combination with the
OccuSwitch, but the light from the lamps they
operate is visible to the IR receiver.
IRT9090 (LRM1080)
70% G
min
100 h
group
link? mode?
mode
power up background IR group reset
add
pirdelay daylight RF channel
0
0
o
save
on
I/ II
O
)))
A-G
zone
%
on/o
87 9
50% E40% D 60% F
54 6
20% B10% A
II
30% C
PLBMS W/C
21 3
test
cong
scene
Max. 17m
= 1x
Max. 17m
= 1x
Luxmeter
Luxmeter
