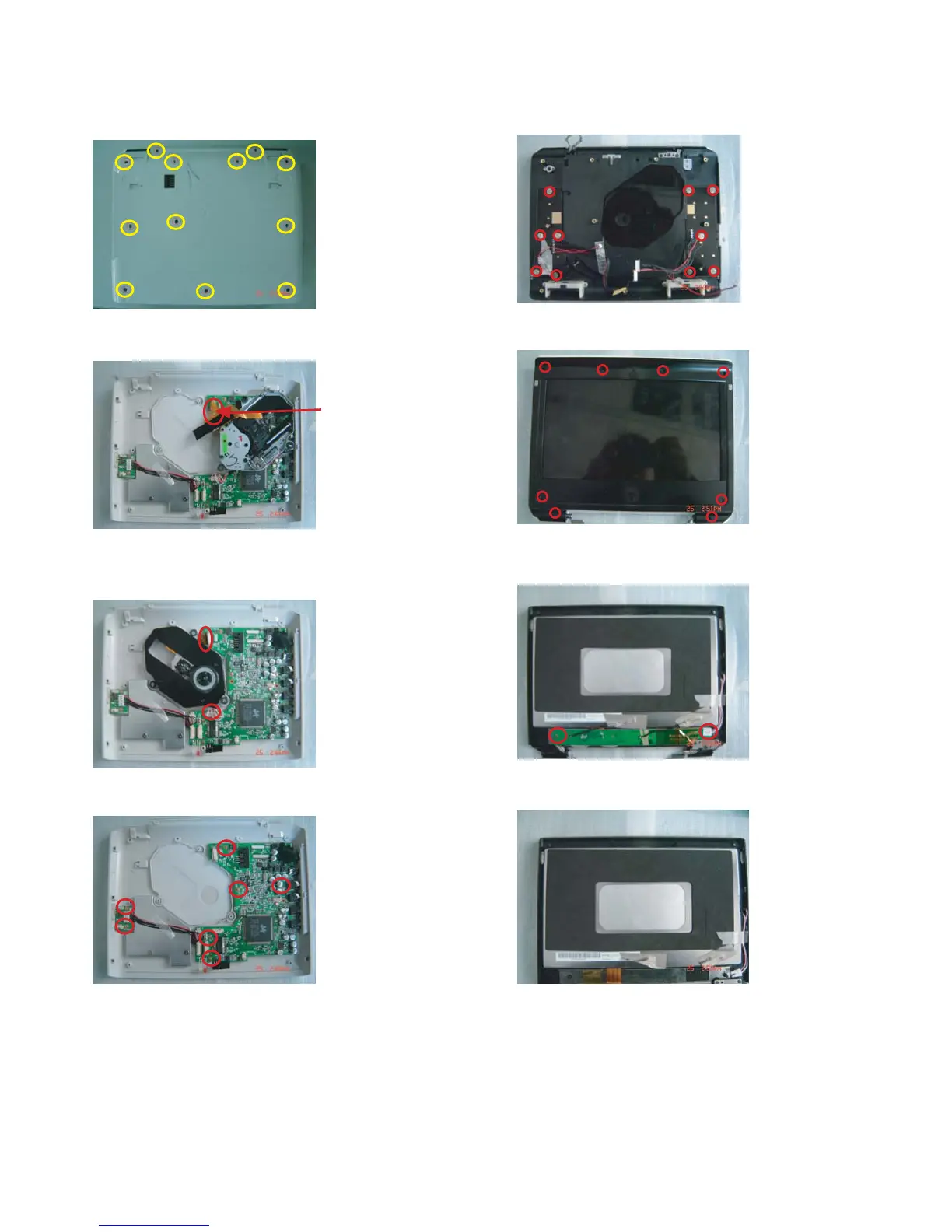

4.0 MECHNICAL INSTRUCTIONS
Fig.1
soldered
1. Back View as Fig.1
Remove screws to remove base
2. Soldered short pattern for laser diode as Fig.2
3.
Fig.2
Remove DVD driver and main board as Fig.3,4
Disconnect DVD driver and main board
Fig.3
4. Remove key board and other parts as Fig.5
Fig.5
5. Remove top cover as Fig.6
Fig.4
Remove main board
Fig.6
6.Disconnect TFT and PTH board
Remove PTH board as Fig.7.
7.
Fig.7
Remove LCD TFT as Fig.8.
Fig.8
