4.0 MECHNICAL INSTRUCTIONS
PET708
Fig.1

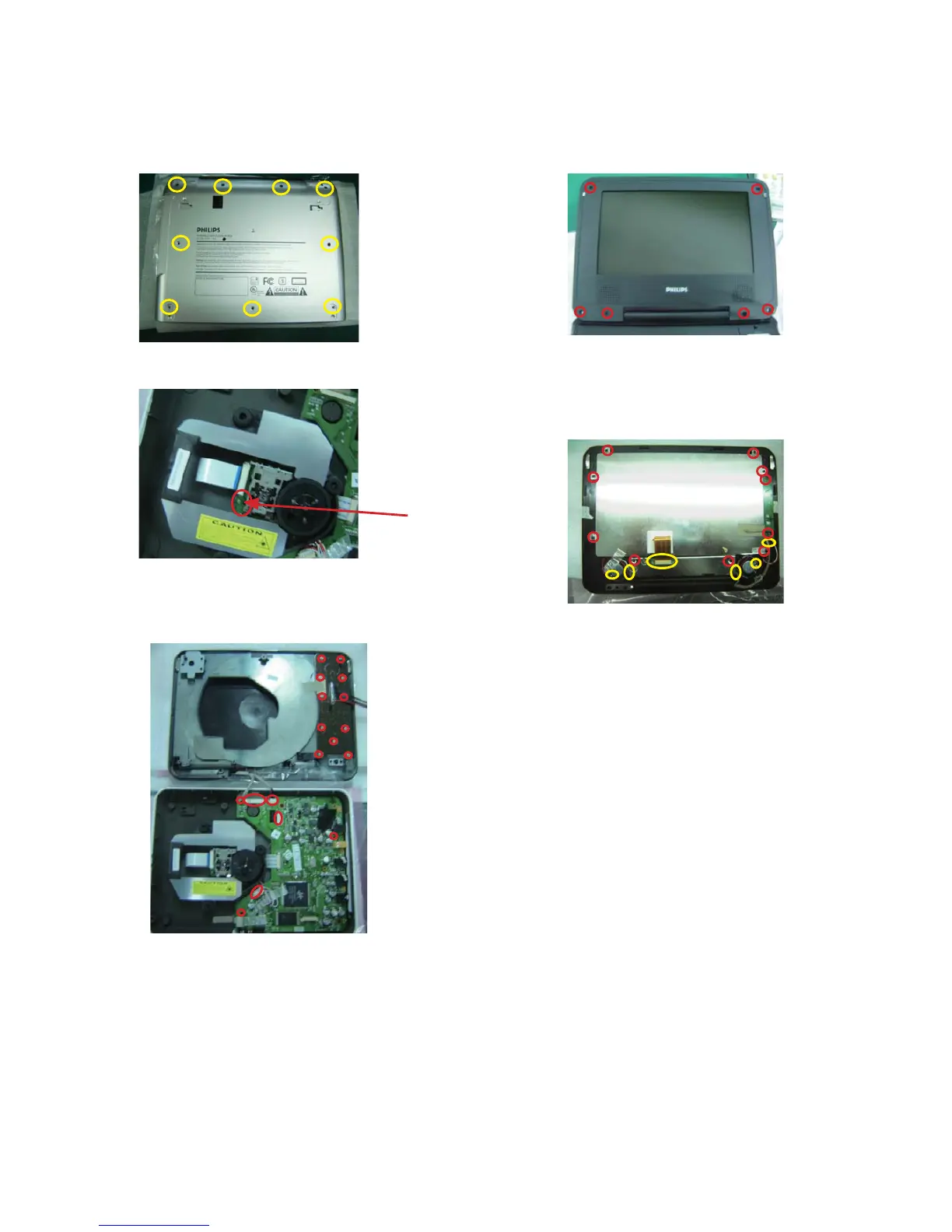

1. Back View as Fig.1
Remove screws to remove base
2. Soldered short pattern for laser diode as Fig.2
3.
Fig.2
Remove DVD driver and every PCB board as Fig.3
Broken connection of DVD driver and every PCB board
Remove DVD driver and main PCB and function PCB.
Fig.3
4.
Fig.4
5.
Remove top cover as Fig.5
Fig.5
Broken connection of speaker and IF board and
power board.
Remove screws to remove TFT board shield and
IF board and power board and LCD TFT as Fig.5.
soldered
