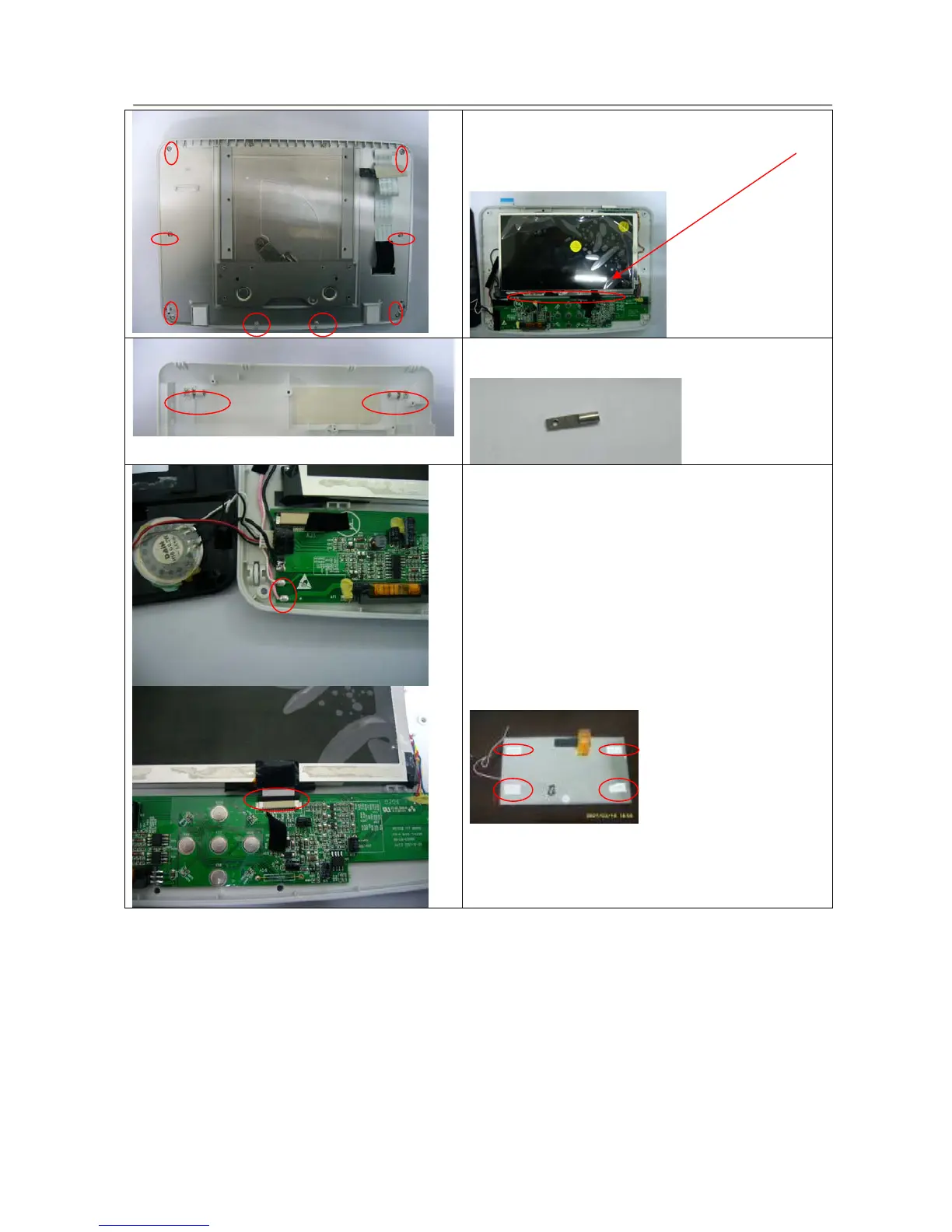

4.0 MECHANICAL INSTRUCTION
6. Remove 8pcs of screws on the TFT back
cabinet. Then you can open the display
frame, carefully! ( There is a catch as shown
in the pictures)
7. To remove the hinge, remove the screws
on the hinge.
8. To remove the TFT, de-soldering the wire
connected between panel and TFT board first;
After this,
up-plug the FFC from TFT board
which behind the black
flannel;
Then you can separate the panel.
Be aware that the panel is fixed by 4pcs two side
tape
