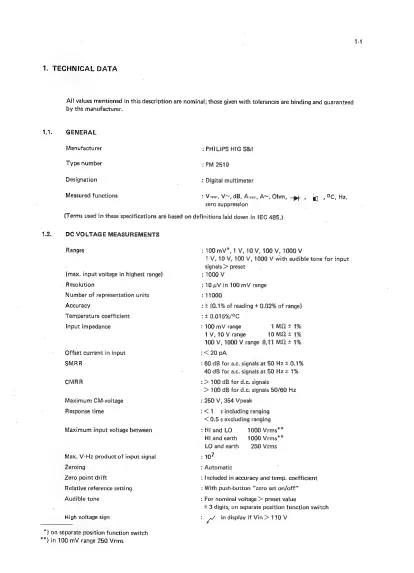

1. TECHNICAL DATA
1.1.
1.2.
All values mentioned in this description are nominal; those given with tolerances are binding and quaranteed
by the manufacturer.
GENERAL
Manufacturer
Type number
Designation
Measured functions
: PHILIPS HIG S&!
: PM 2519
: Digital multimeter
1 Var, V~, dB, Aar, AX, Ohm, pt, ig, °C, Hz,
zero suppression
(Terms used in these specifications are based on definitions laid down in IEC 485.)
DC VOLTAGE MEASUREMENTS
Ranges
(max. input voltage in highest range)
Resolution
Number of representation units
Accuracy
Temperature coefficient
Input impedance
Offset current in input
SMRR
CMRR
Maximum CM-voltage
Response time
Maximum input voltage between
Max. V-Hz product of input signal
Zeroing
Zero point drift
Relative reference setting
Audible tone
High voltage sign
*) on separate position function switch
**) in 100 :mV range 250 Vrms
: 100 mV*, 1 V, 10 V, 100 V, 1000 V
1V, 10 V, 100 V, 1000 V with audible tone for input
signals > preset
: 1000 V
: 10 nV in 100 mV range
: 11000
: + (0.1% of reading + 0.02% of range)
> $.0.015%/°C
: 100 mV range
1MQ + 1%
1V, 10 V range 10 MQ + 1%
100 V, 1000 V range 9,11 MQ + 1%
:<20 pA
: 60 dB for a.c. signals at 50 Hz + 0.1%
40 dB for a.c. signals at 50 Hz + 1%
:> 100 dB for d.c. signals
> 100 dB for d.c. signals 50/60 Hz
: 250 V, 354 Vpeak
:< 1 s including ranging
<0.5s excluding ranging
: HE and LO 1000 Vrms**
Hl and earth 1000 Vrms**
LO and earth 250 Vrms
: 107
: Automatic
: Included in accuracy and temp. coefficient
: With push-button ’zero set on/off”
: For nominal voltage > preset value
+ 3 digits, on separate position function switch
: “ in display if Vin> 110 V
