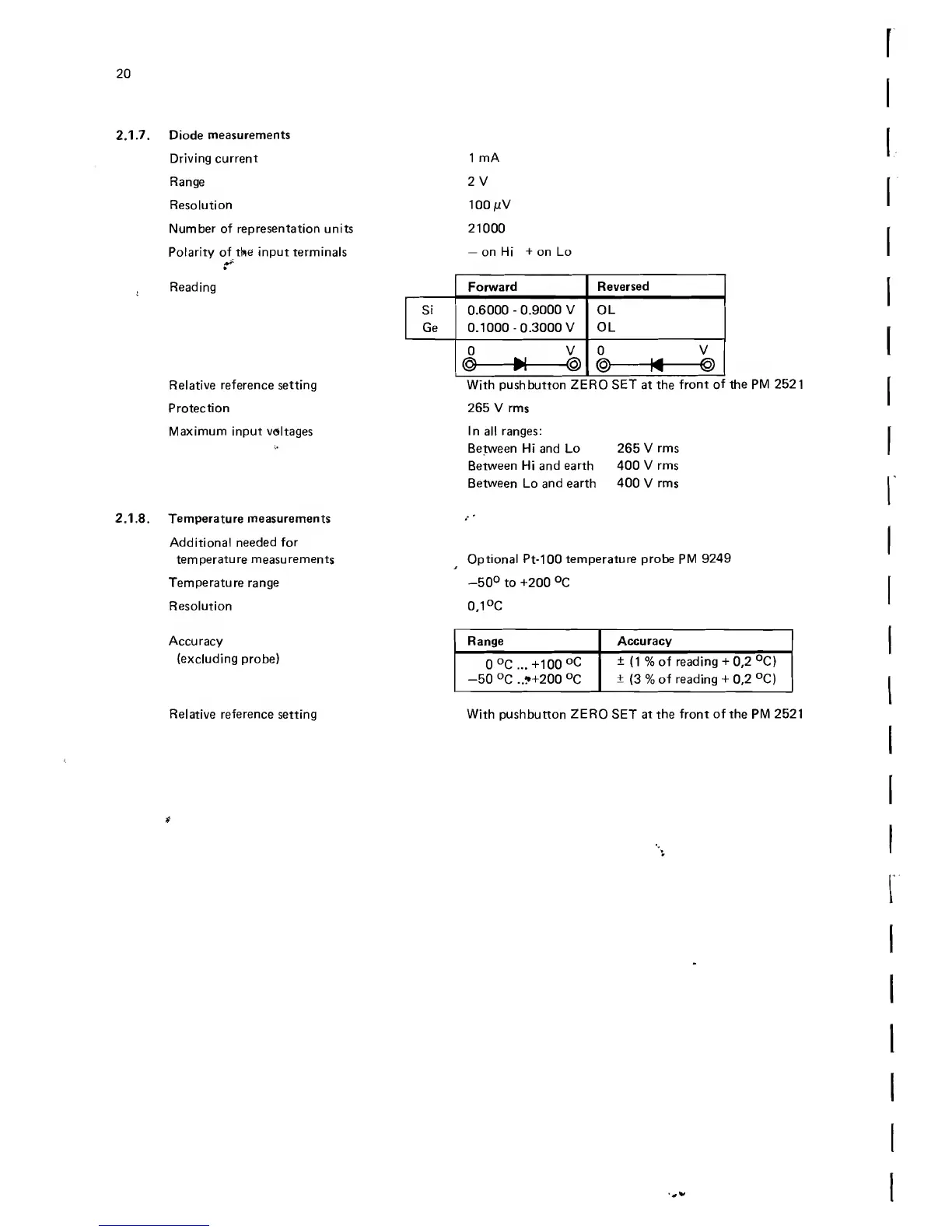

Philips pm2521 - 2.1.7. Diode measurements; 2.1.8. Temperature measurements

20
2.1.7. Diode measurements
Driving current
Range
Resolution
Number of representation units
Polarity of tine input terminals
»
Reading
Relative reference setting
Protection
Maximum input voltages
2.1.8. Temperature measurements
Additional needed for
temperature measurements
Temperature range
Resolution
Accuracy
(excluding probe)
Relative reference setting
1 mA
2 V
100 mV
21000
— on Hi + on Lo
Forward
Reversed
Si
Ge
0.6000 - 0.9000 V
0.1000 -0.3000 V
OL
OL
0 V
/S\ fcJ /«\
0 V
LM /ZS
^ W\ vQ;
vgl W
With pushbutton ZERO SET at the front of the PM 2521
265 V rms
In all ranges:
Between Hi and Lo 265 V rms
Between Hi and earth 400 V rms
Between Lo and earth 400 V rms
Optional Pt-100 temperature probe PM 9249
-50° to +200 °C
0,1°C
Range Accuracy
0 °C ... +100 °C
-50 °C ..*+200 °C
± (1 % of reading + 0,2 °C)
± (3 % of reading + 0,2 °C)
With pushbutton ZERO SET at the front of the PM 2521
