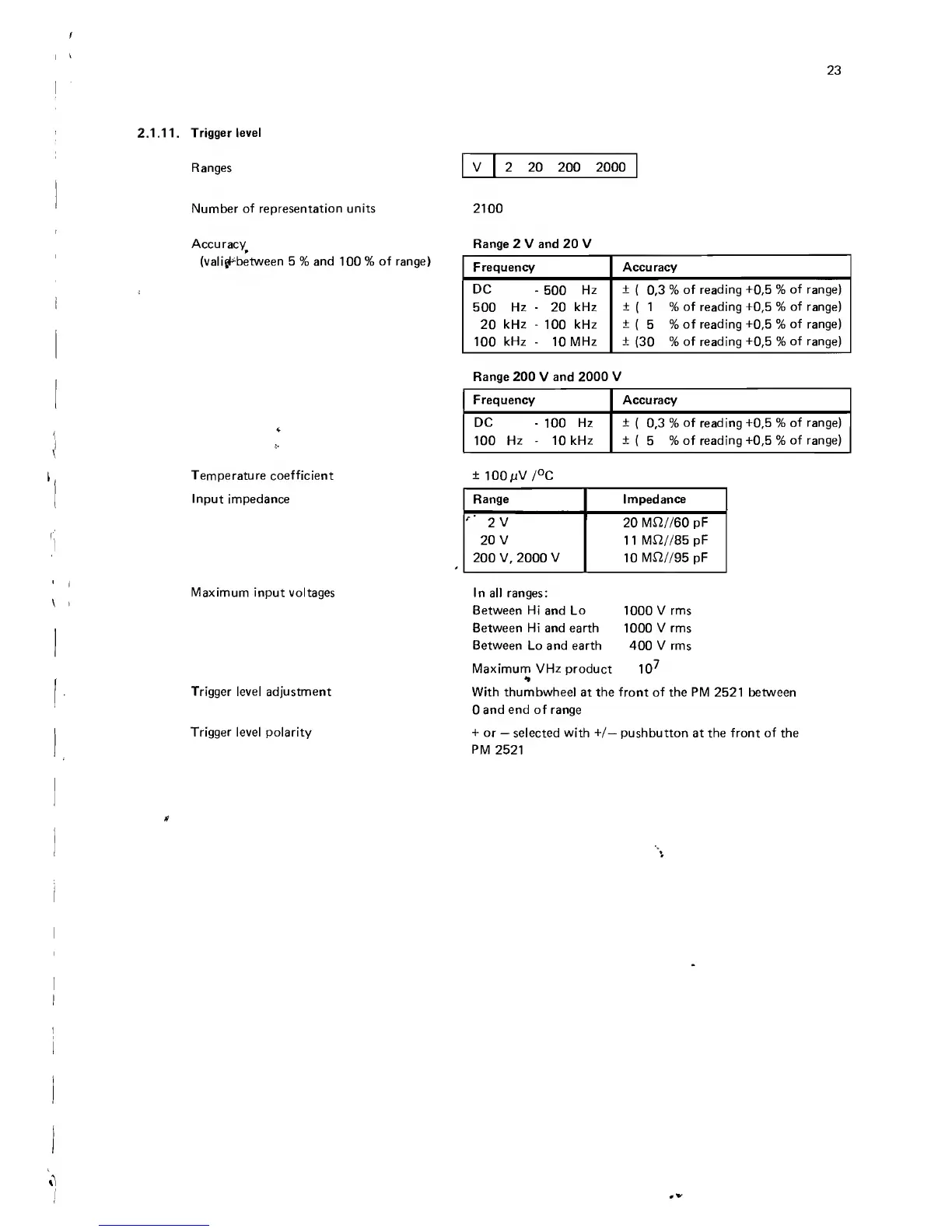

23
2.1.11.
Trigger
level
Ranges
V
2
20
200
2000
Number
of
representation
units
2100
Accuracy,
Range
2
V
and
20
V
(valigPbetween
5
%
and
100
%
of
range)
Frequency
Accuracy
DC
-
500
Hz
±
(
0,3
%
of
reading
+0,5
%
of
range)
500
Hz
-
20
kHz
+
(
1
%
of
reading
+0,5
%
of
range)
20
kHz
-
100
kHz
±
(
5
%
of
reading
+0,5
%
of
range)
100
kHz
-
10
MHz
±
(30
%
of
reading
+0,5
%
of
range)
Range
200
V
and
2000
V
Frequency
Accuracy
DC
-
100
Hz
100
Hz
-
10
kHz
±
(
0,3
%
of
reading
+0,5
%
of
range)
+
(
5
%
of
reading
+0,5
%
of
range)
Temperature
coefficient
Input
impedance
Maximum
input
voltages
Trigger
level
adjustment
Trigger
level
polarity
+
100/uV
/°C
Range
Impedance
''
2
V
20
V
200
V,
2000
V
20
MO//60
pF
11
M£2/785
pF
10
M£2/795
pF
In
all
ranges:
Between
Hi
and
Lo
1000
V
rms
Between
Hi
and
earth
1000
V
rms
Between
Lo
and
earth
400
V
rms
Maximum
VHz
product
10^
*
With
thumbwheel
at
the
front
of
the
PM
2521
between
0
and
end
of
range
+
or
—
selected
with
+/—
pushbutton
at
the
front
of
the
PM
2521
*
