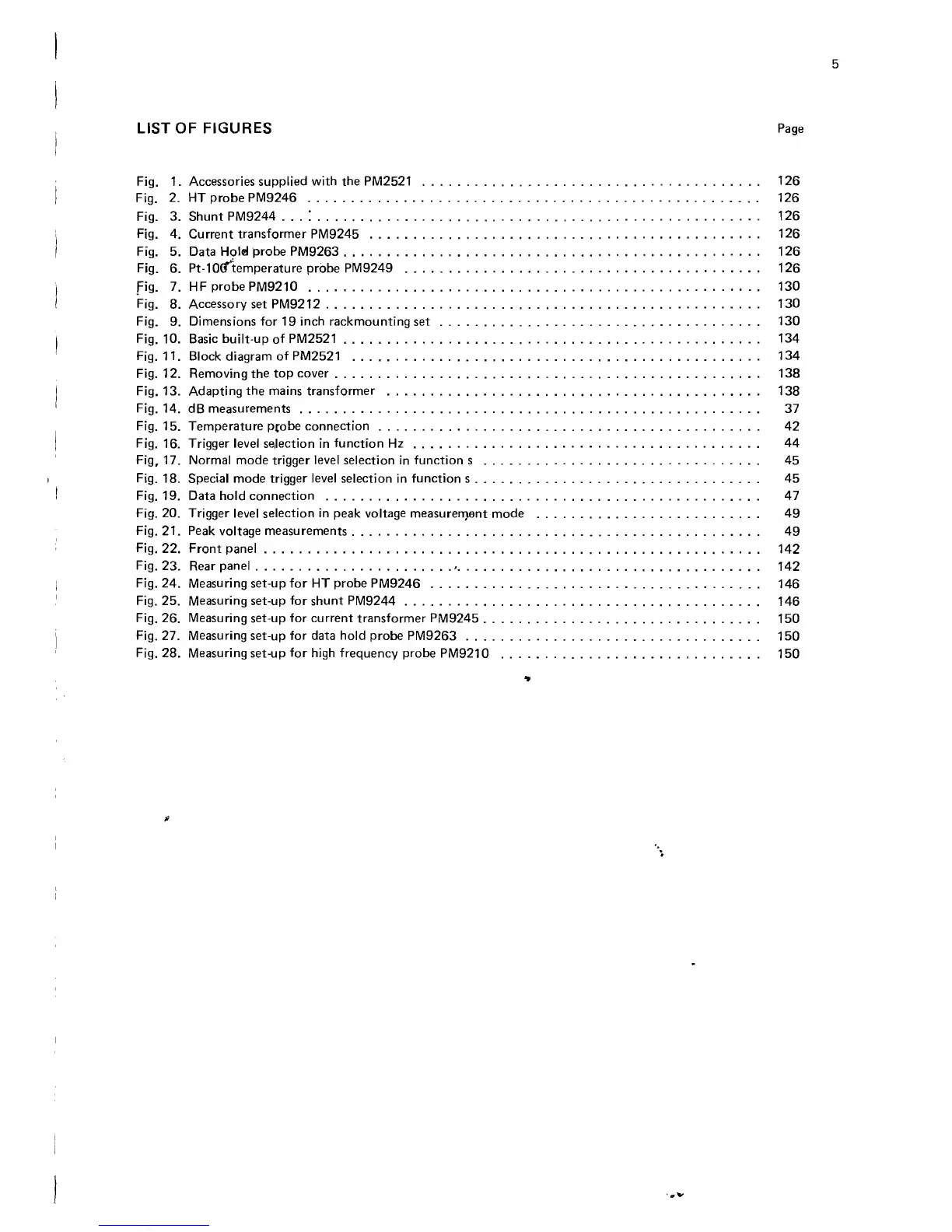

LIST OF FIGURES
Fig. 1. Accessories supplied with the PM2521 . 126
Fig. 2. HT probe PM9246 . 126
Fig. 3. Shunt PM9244 . . . !. 126
Fig. 4. Current transformer PM9245 . 126
Fig. 5. Data Hold probe PM9263 . 126
Fig. 6. Pt-10(ftemperature probe PM9249 . 126
Fig. 7. HF probe PM9210 . 130
Fig. 8. Accessory set PM9212. 130
Fig. 9. Dimensions for 19 inch rackmounting set. 130
Fig. 10. Basic built-up of PM2521 . 134
Fig. 11. Block diagram of PM2521 . 134
Fig. 12. Removing the top cover. 138
Fig. 13. Adapting the mains transformer . 138
Fig. 14. dB measurements. 37
Fig. 15. Temperature pcobe connection. 42
Fig. 16. Trigger level selection in function Hz. 44
Fig, 17. Normal mode trigger level selection in function s . 45
Fig. 18. Special mode trigger level selection in function s. 45
Fig. 19. Data hold connection . 47
Fig. 20. Trigger level selection in peak voltage measurerrjent mode . 49
Fig. 21. Peak voltage measurements. 49
Fig. 22. Front panel. 142
Fig. 23. Rear panel. 142
Fig. 24. Measuring set-up for HT probe PM9246 . 146
Fig. 25. Measuring set-up for shunt PM9244 . 146
Fig. 26. Measuring set-up for current transformer PM9245 . 150
Fig. 27. Measuring set-up for data hold probe PM9263 . 150
Fig. 28. Measuring set-up for high frequency probe PM9210 . 150
