Pin Assignment

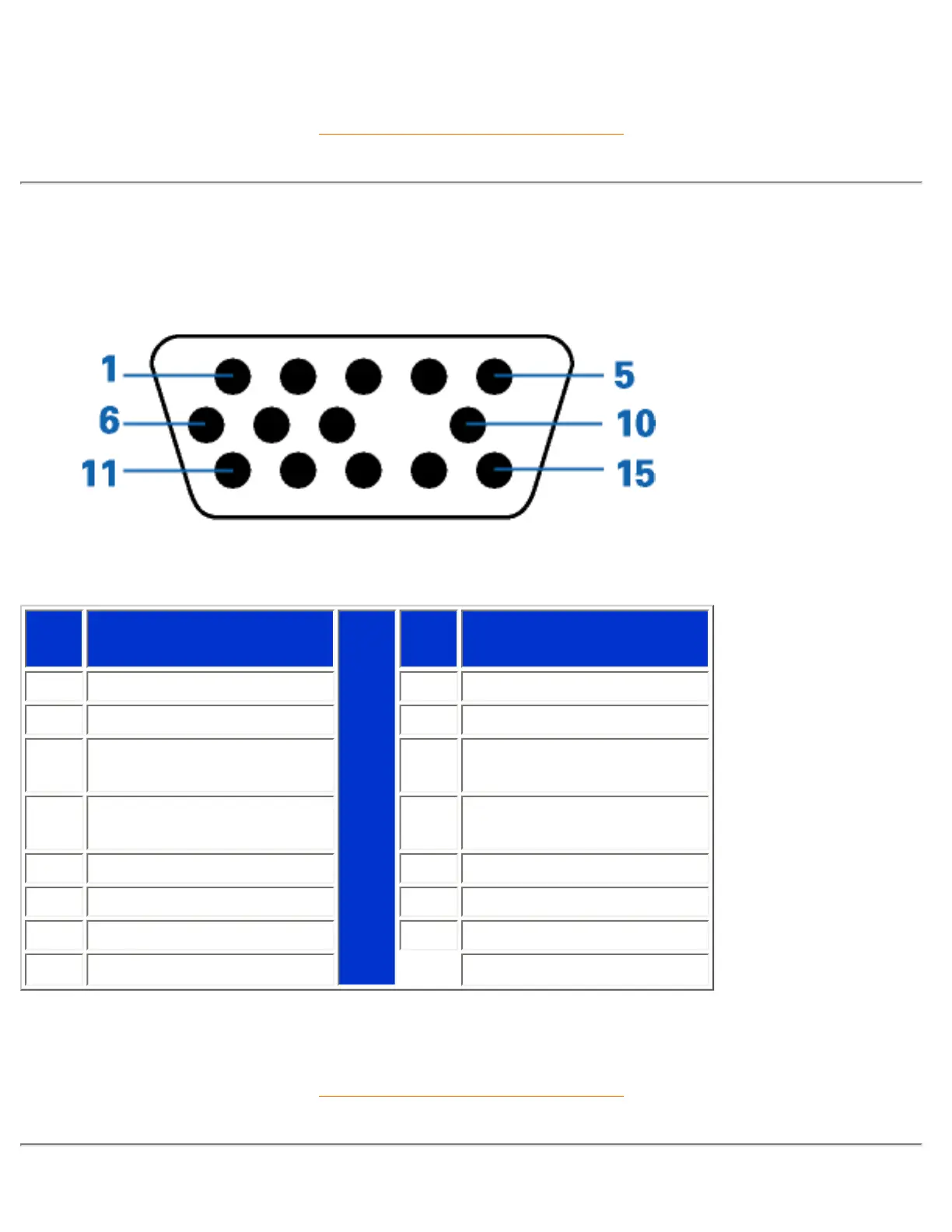

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
No.
Assignment
Pin
No.
Assignment
1 Red video input 9 +5V (PC)
2 Green video input&SOG 10 Logic ground
3 Blue video input 11
Identical output -
connected to pin 10
4
Identical output -
connected to pin 10
12 Serial data line (SDA)
5 Ground 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
