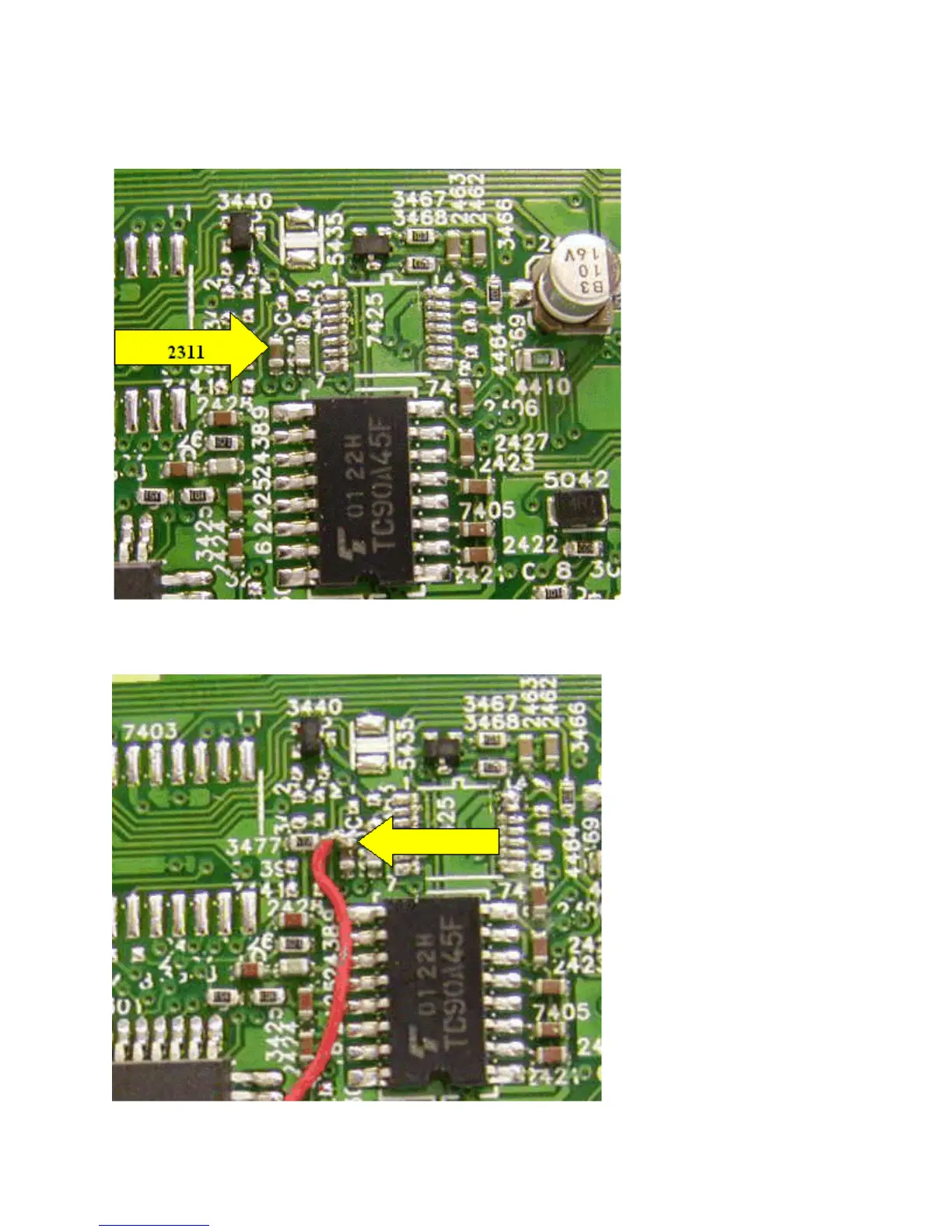

Step 4 - Locate Component 2311
Locate component 2311 as shown below.
Step 5 - Place Jumper (Top)
Place Jumper Wire at the top of component.
