8

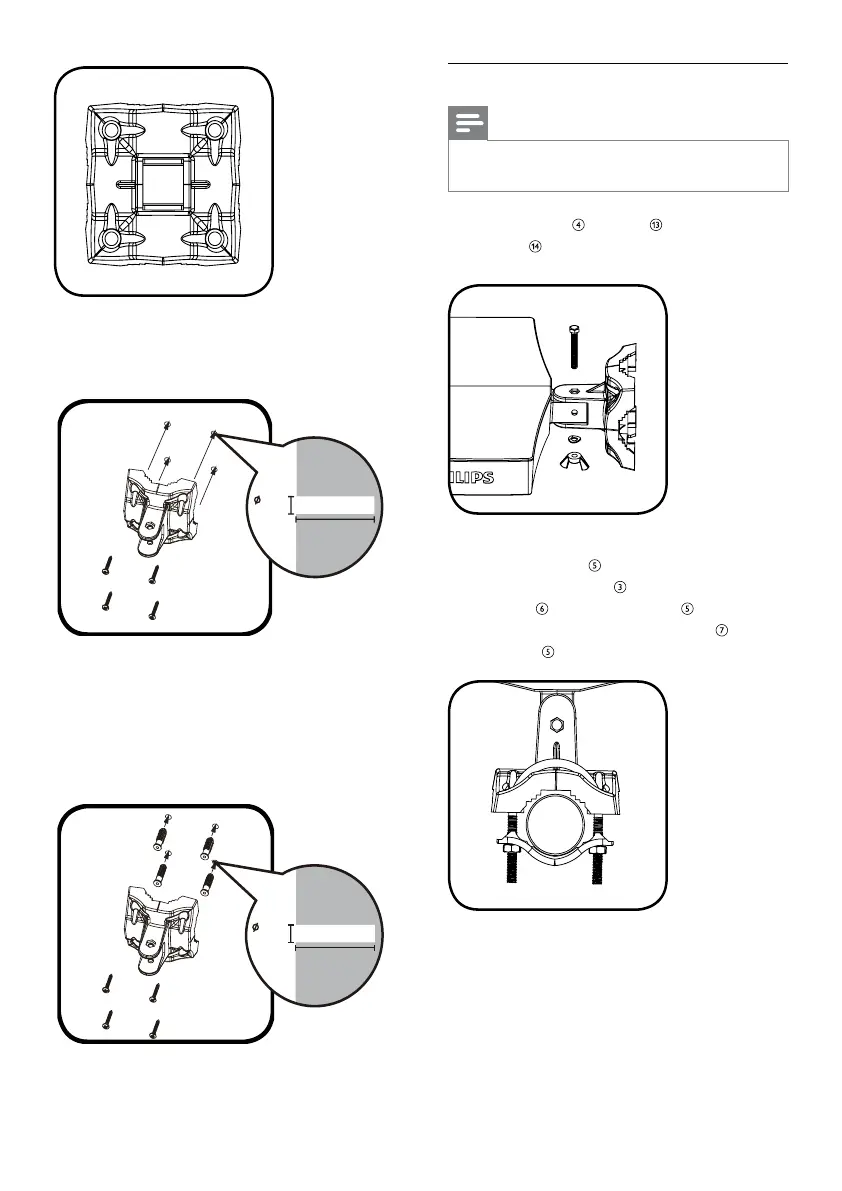

For outdoor mast mount installation
Note
•
Complete all assembly work on the ground.
Raise the completed antenna after assembly.
1 Use the nut , washer , and hexagon
screw
to attach the antenna to the
wall/mast bracket.
2 Insert U-bolts into the holes of the
wall/mast bracket . Slide the mast
clamps onto the U-bolts . Attach
the four nuts with lock washers to the
U-bolts .
3 For wood wall
Usethewoodscrewstoxtheantenna
tothewoodwallrmly.
For concrete wall
Drill four holes on concrete wall, put four
plastic anchors into the holes. Use wood
screwstoxtheantennatotheconcrete
wallrmly.
27±5mm
1 1”±0 2”
3 2mm
(1/8”)
35±5mm
1 4”±0 2”
7 9mm
(5/16”)
EN
