Philips TC5.1L - 1 Technical Specifications, Connections and Chassis Overview

Technical Specifications, Connections and Chassis Overview
EN 2 TC5.1L CB1.
1. Technical Specifications, Connections and Chassis Overview
1.1 Technical Specifications
Tuning - technology : PLL
Tuning - presets/channels : 181
Freq Bands : Full-Cable
TV Systems Off Air/ Cable : NTSC M (3.58 - 4.5)
TV Systems Multi : NTSC
Mains voltage : 180-240V
(29PT6457/44)
: 100-120V
: (29PT6457/55)
Mains frequency : 50/60Hz
Power consumption : 90W (29PT6457/44)
: 95W (29PT6457/55)
Standby Power consumption : <3W (29PT6457/44)
: <1W (29PT6457/55)
Sound Systems : BTCS SAP
Audio output (RMS) : 2x5W
Scan Modes : 4:3
Sound Features : AVL, Mute
Sound Control : 4 sound modes
: Balance
: Bass Boost
: Treble Boost,
: Volume
Menu Languages : American English,
French, Spanish
Clock/Timer Function : Sleep timer
Terrestrial Antenna in : 75 Ohm (F type)
1.2 Connection overview
1.2.1 Connections
Figure 1-1 Aerial connection
Aerial - In
- - F-type Coax, 75 ohm D

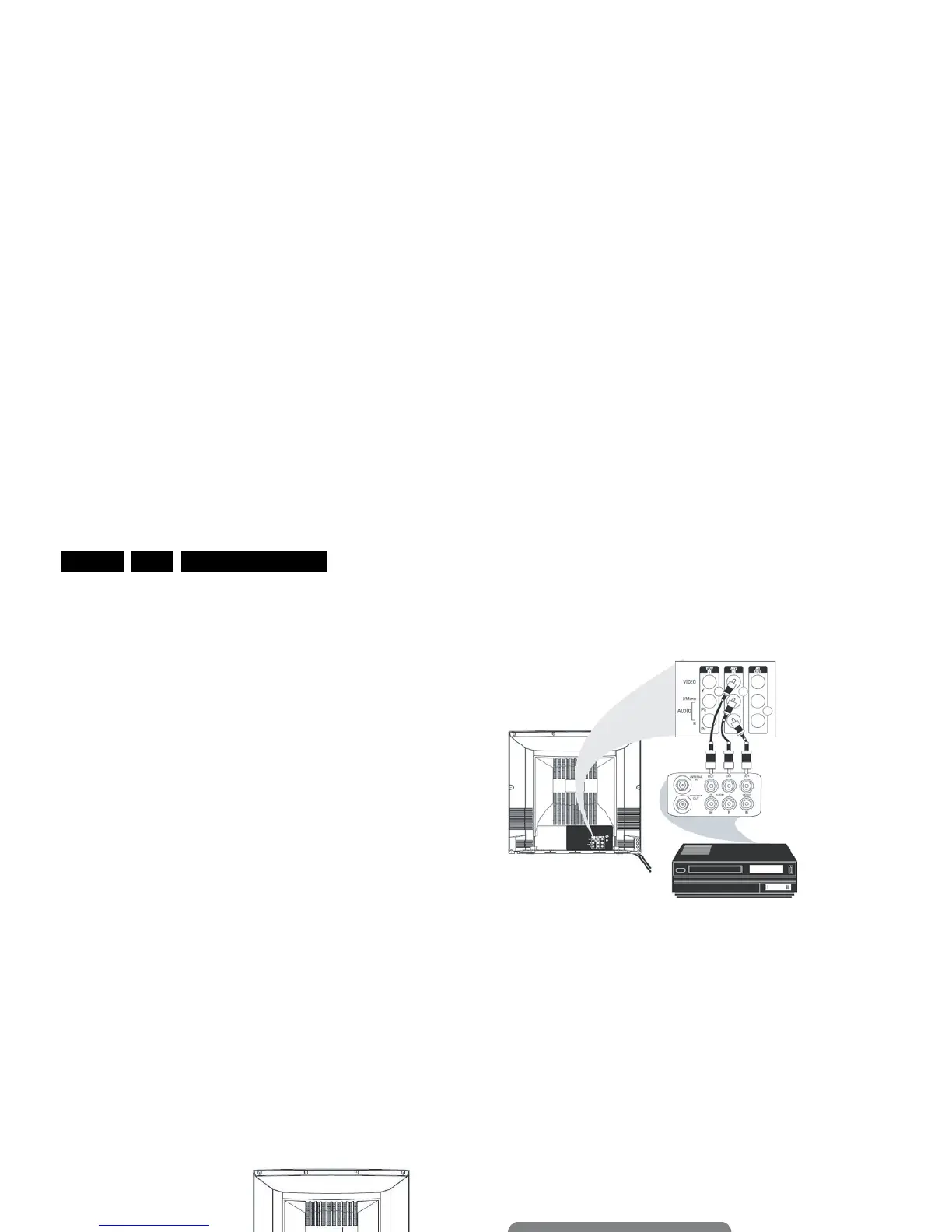

Figure 1-2 Rear audio and video connections
Cinch: Video CVBS - Out, Audio - Out
Ye - Video CVBS 1 V
PP
/ 75 ohm kq
Wh - Audio L 0.5 V
RMS
/10 kohm kq
Rd - Audio R 0.5 V
RMS
/ 10 kohm kq
Cinch: Video YUV- In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video U 0.7 V
PP
/ 75 ohm jq
Rd - Video V 0.7 V
PP
/ 75 ohm jq
Cinch: Audio - Out
Rd - Audio - R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm kq
Figure 1-3 Side audio and video connections
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
G_16340_001.eps
100306
G_16340_002.eps
100306
H_17480_008.eps
050707
