Philips US2-PH61156 User Manual

• Two 75-ohm coaxial cables with F-type connectors
• If your TV does not have a VHF 75-ohm F-connector, you will also
need a 75-ohm-to-300-ohm matching transformer
• One video shielded cable with RCA Plugs and one audio (stereo)
cable with RCA Plugs OR Dubbing Cable for VCR/DVD with RCA
Plugs OR 3 shielded cables with RCA Plugs
• One S-Video cable
PARTS REQUIRED continued

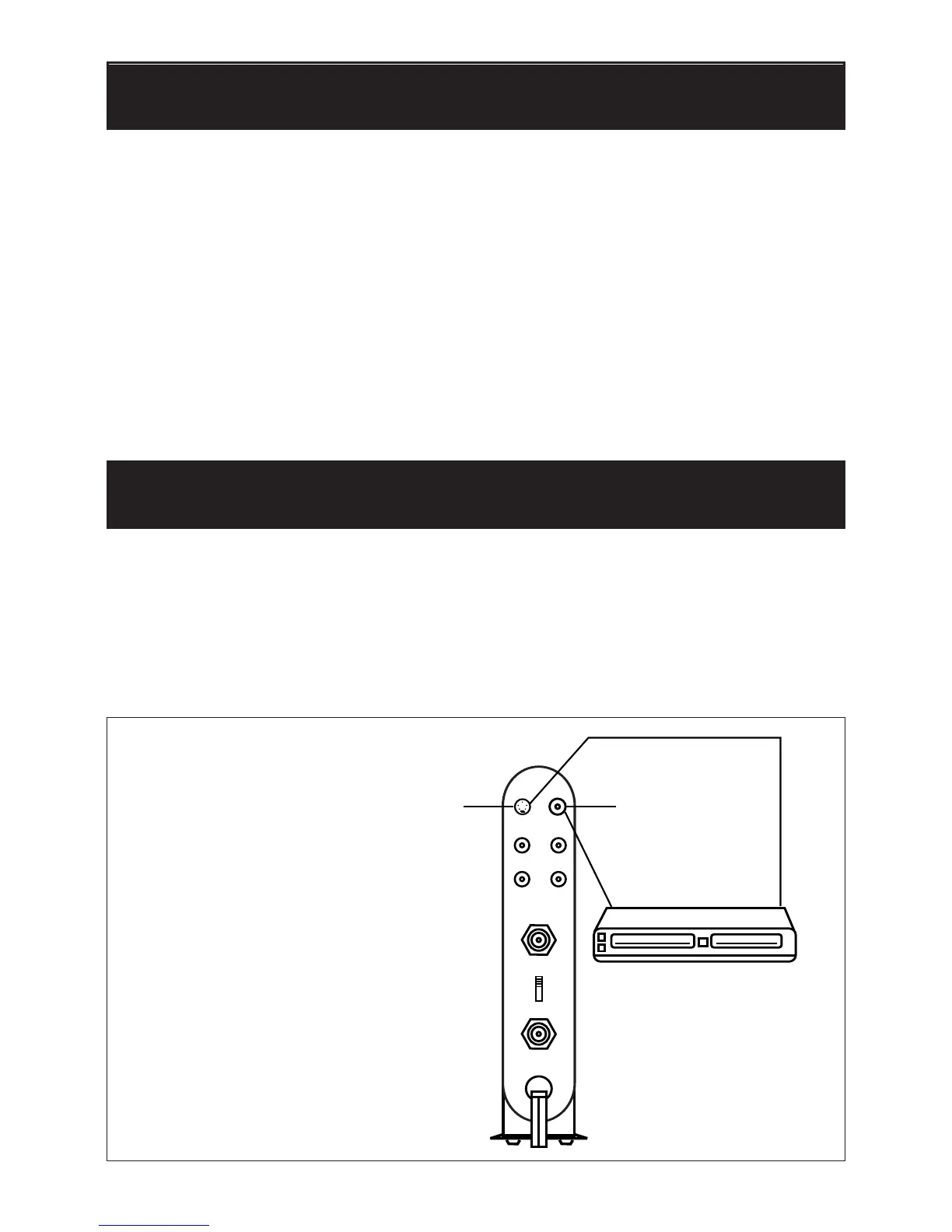

Follow these steps to connect your RF Modulator:
1. Connect an S-Video or video cable between the S-Video or video
output jack on your video source and the RF Modulator’s
S-VIDEO IN
or VIDEO IN jack.
CONNECTIONS
VIDEO IN
Jack
S-VIDEO IN
Jack
OR
Video
Output
Video Source
S-Video
Output
ANT IN
TO TV
4
3
Channel
AUDIO IN

AUDIO OUT
L
R
VIDEOS-VIDEO
AC 120V
60Hz/4.5W
Note: If both the
S-Video and standard
video are hooked up,
the S-Video will be
given priority

Philips US2-PH61156 Specifications

Packaging Dimensions

packaging dimensions	6.5 x 11 x 3.2 inch
gross weight	1.33811 lb
nett weight	1.11732 lb
tare weight	0.22079 lb

Inner Carton

inner carton dimensions	11.2 x 7 x 11.4 inch
gross weight	5.41863 lb
nett weight	4.46928 lb
tare weight	0.94934 lb

Outer Carton

outer carton dimensions	21.4 x 12.2 x 23.6 inch
gross weight	32.75 lb
nett weight	26.8157 lb
tare weight	5.9343 lb
