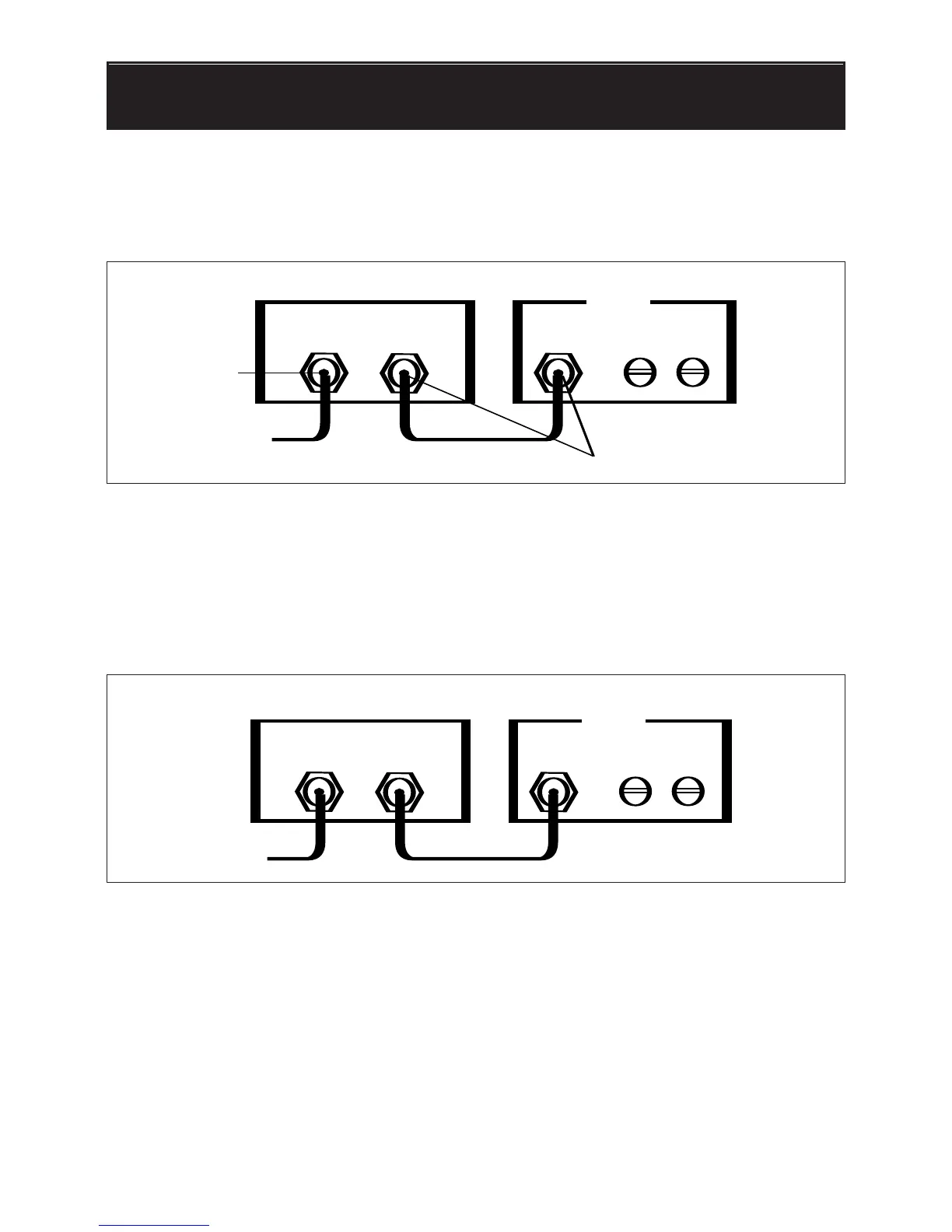

b. Then add a 75-ohm coaxial cable connected between the TO TV
terminal on the RF Modulator and 75-ohm VHF input terminal on
your TV.
• If your TV is not already connected to another VHF source:
a. Connect the input sources (antenna, cable TV, VCR, etc.) 75-ohm
cable to the RF Modulator’s
ANT IN terminal.
b. Connect a 75-ohm coaxial cable between the
TO TV terminal on the
RF Modulator and the 75-ohm VHF input terminal on your TV.
Note: If your TV has only 300-ohm VHF screw terminals, use a
75-ohm-to-300-ohm matching transformer to complete the connection.
4. Plug the RF Modulator’s power cord into a standard AC outlet.
CONNECTIONS continued
a. Disconnect the input sources 75-ohm cable from the TV’s 75-ohm
VHF input terminal, and reconnect it to the RF Modulator’s
ANT IN
terminal.
To Next Page
