Fig. D1 Fig. D3
Fig. D2
Fig. 1
Fig. 2
Fig. 3
(A)
(B)
(S1a)
(S1a)
(S1a)
(S1b)
(S1c)
[1]
Top cover
[1]
Bracket
(L2c)
(L2c)
(L2d)
(L2b)
(L2a)
(L2a)
(L2b)
(S2b)
(S2a)
Foot assy
Foot(rear)
Earth plate
<Note 2a>
[2]
Bottom cover
(L3a)
(L3a)
CN901
WR3a
<Note 3a>
(L3a)
[3]
Front panel
assembly
“a” <Note 3b>
Knob
(Jog/shuttle)
WR3b
<Note 3a>
CN3012
CN7192
Front panel
back side
WR3a
(S3a)
(S3b)
WR3b
Jog board
assembly
<Note 3c>
Jack
board
assembly

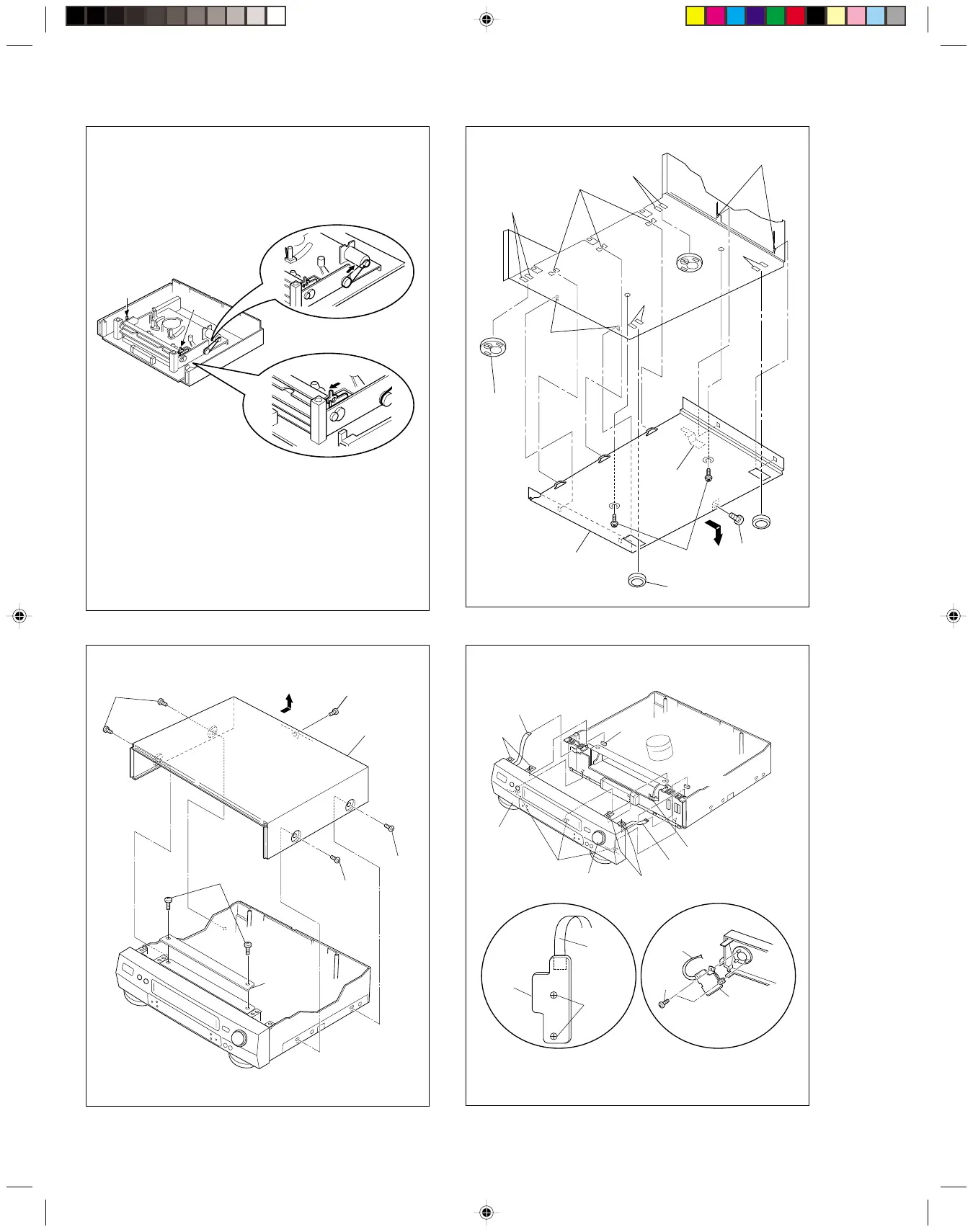

Procedures for Lowering the Cassette holder assembly
As the mechanism of this unit is integrated with the Housing
assembly, the holder must be lowered and the two screws un-
screwed when removing the Mechanism assembly.
Procedures for Lowering the Cassette holder assembly
Turn the loading motor pulley in the direction as indicated by
Fig.2. As both (A) and (B) levers are lodged twice, push the
levers in the direction as indicated by Fig.3 to release them.
When pushing the levers, do it in the order of (A), (B), (B),
(A). When the holder has been lowered, turn the pulley until
the cassette holder is securely in place without allowing any
up/down movement.
