Philips VR140/02 - Page 13

1-7-9 HE490DC
[6] Main CBA
(S-6)
(S-6)
(S-7)
[5] Deck Assemb
ly
FE Head
Cylinder Assembly
AC Head
Assembly
TOP VIEW
From
FE Head
From
Cylinder
Assembly
From
AC Head
Assembly
Lead with
blue stripe
Lead with
blue stripe
Desolder
from bottom
Lead with
blue stripe
From
Capstan Motor
Assembly

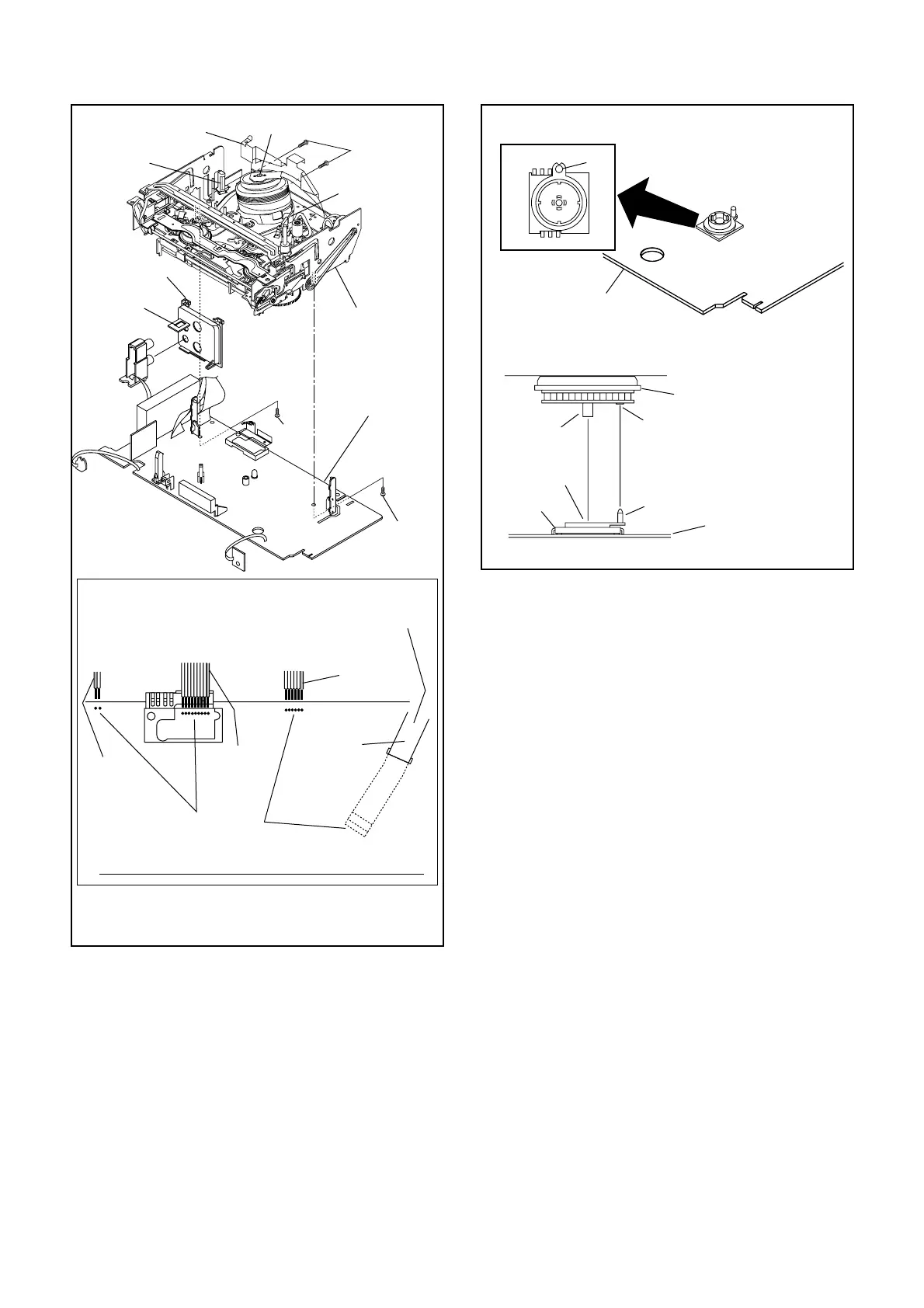

Lead connections of Deck Assembly and Main CBA
Printing
side
[7] Cylinder Shield
[8] Rear Panel
(L-3)
Fig. 5
LD-SW
Pin
Hole
Hole
Shaft
Cam Gear
[6] Main CBA
[5] Deck Assembly
[6] Main CBA
SW507
LD-SW
Pin
Fig. 6
