Philips VR140/02 - Page 38

1-10-62
1-10-63

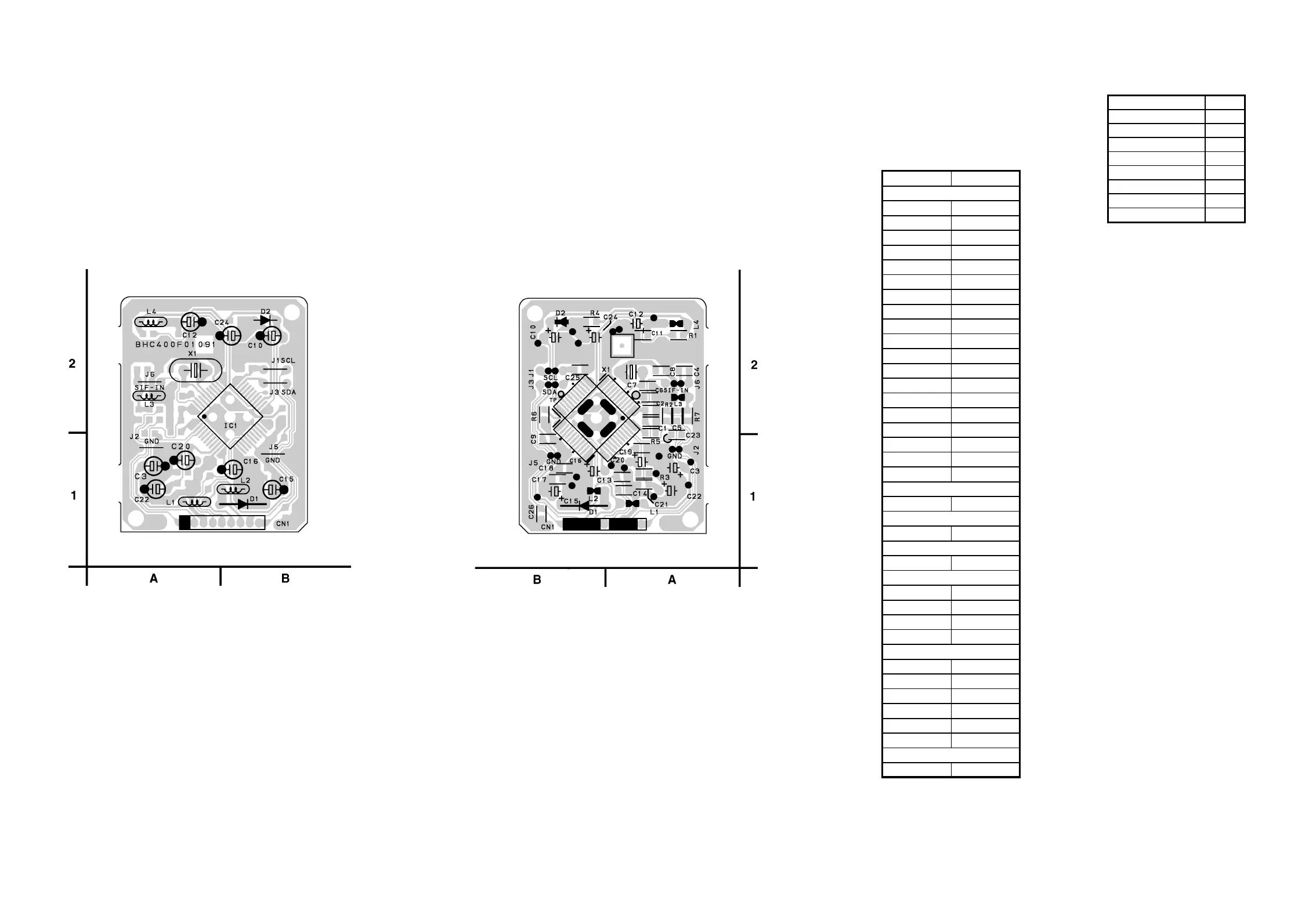

AFV CBA Top View ( R, S, T, U ) AFV CBA Bottom View ( R, S, T, U )
BHC400F01091
AFV CBA Parts Location Guide
Ref No. Position
C1 A-2
C4 A-2
C5 A-2
C6 A-2
C7 A-2
C8 A-2
C11 A-2
C12 A-2
C13 B-1
C14 A-1
C15 B-1
C16 B-1
C17 B-1
C19 A-1
C20 A-1
C21 A-1
C22 A-1
C23 A-1
C24 B-2
CN1 B-1
D2 B-2
IC1 B-2
L1 A-1
L2 B-1
L3 A-2
L4 A-2
R1 A-2
R2 A-2
R4 B-2
R5 A-1
R6 B-2
R7 A-2
X1 B-2
RESISTORS
CRYSTAL OSCILLATORS
CAPACITORS
CONNECTORS
DIODES
ICS
COILS
Comparison Chart of
Models and Marks
MODEL MARK
VR140/02 N
VR140/07 O
VR140/39 P
VR140/58 Q
VR840/07 R
VR840/16 S
VR840/39 T
VR840/58 U
