USER MANUAL – SMART7 PRO™
© 2023 Phillips Connect LLC Smart7 Pro User Manual Page 2 of 9
1. INTRODUCTION
The Smart7 Pro™ 4G LTE Asset Tracking Gateway from Phillips Connect is a vehicle tracking device that
combines GPS location with LTE and Bluetooth. Smart7 Pro monitors vehicle and asset functions and
collects data for tracking and analysis.
The Smart7 Pro Gateway appears to the user of a server application as a single endpoint device. It can
be queried, updated, and configured either through a serial connection or an over-the air (OTA) LTE IP
connection. Smart7 Pro presents itself over the connections as an enhanced cellular modem with
attached functional elements. These elements include:
• GPS location engine
• General Purpose Bidirectional I/O (GPIO) pins
• Relay drive pin output
• CAN Communication
• BLE 5.2 provides expandable sensor connectivity

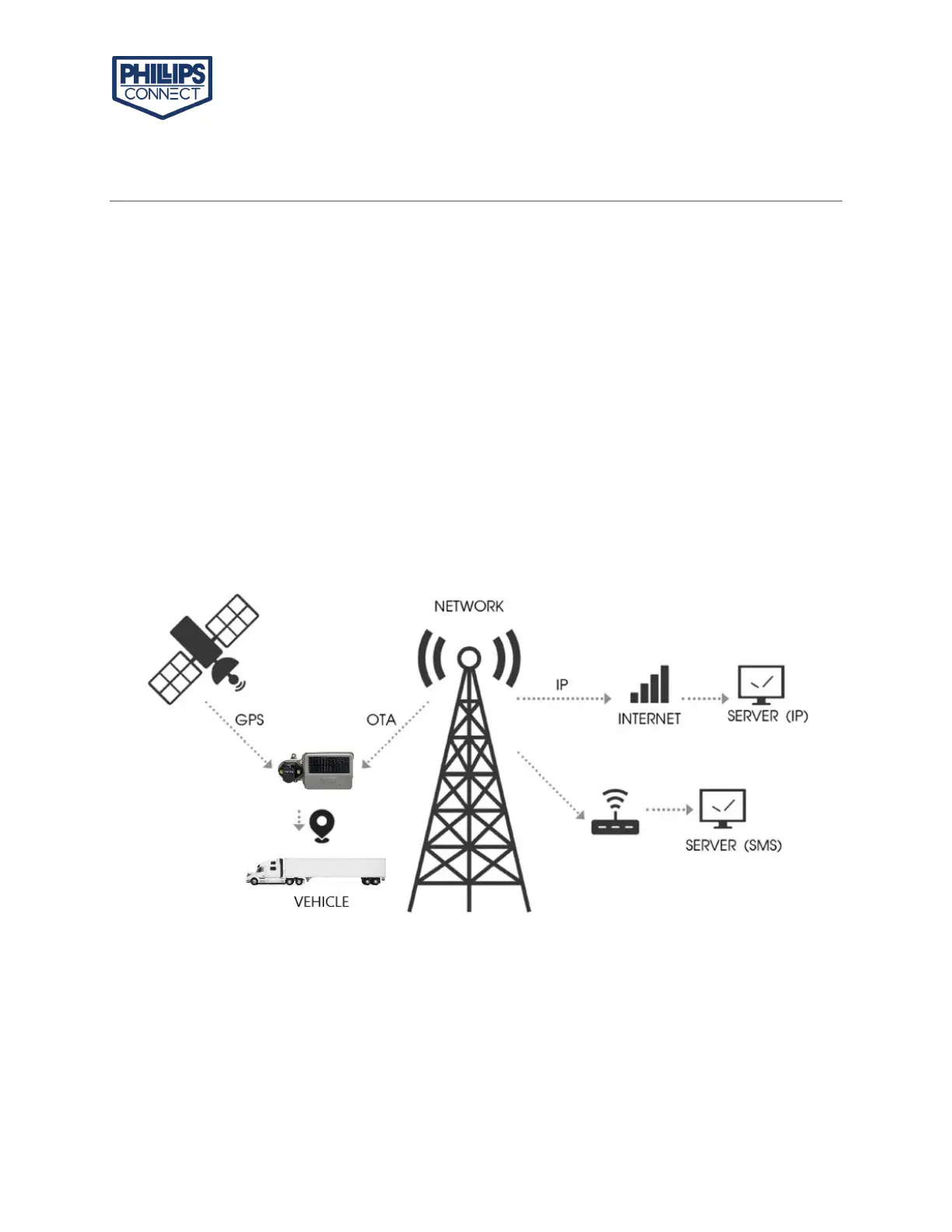

The following is a typical application scenario:
