1 2
3

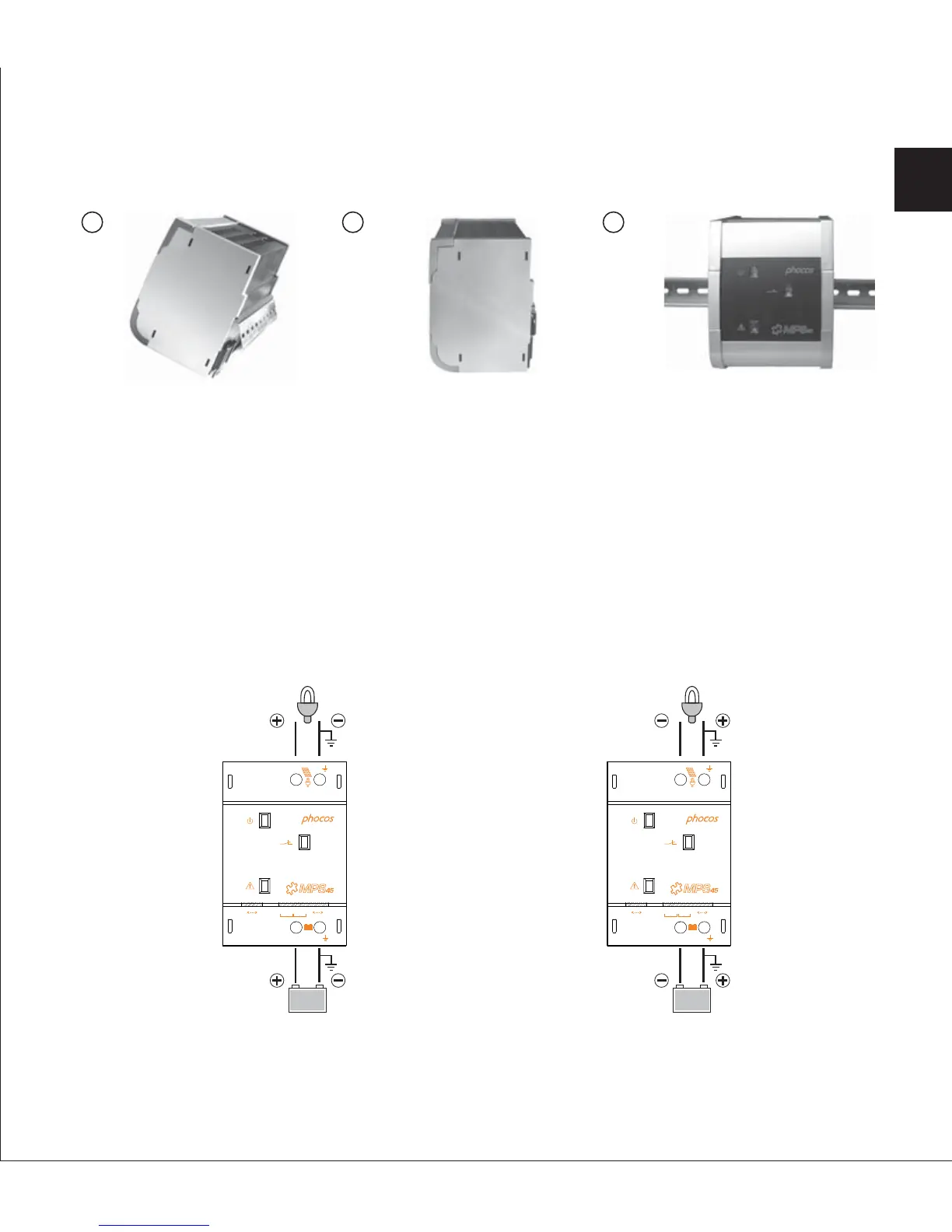

Please see fig 1, 2 and 3 which shows how to install the MPS controller on a standard 35 mm
DIN Rail.
Mount DIN Rail onto a vertical surface.
Mount MPS in a manner that ensures there is enough space above and below the unit to ensure
vertical air flow through the ventilation grill.
1.3.2 Grounding
MPS can work in negative or positive grounded systems.
Select the type of grounding according your system requirements. Respect that all components
in your system should use the same type of grounding!
1.3 Installation Instruction
1.3.1 Wall Mounting
Positive groundedNegative grounded
29
com
com
A
B
87654321
AddressMode
com
com
A
B
87654321
AddressMode
EN
