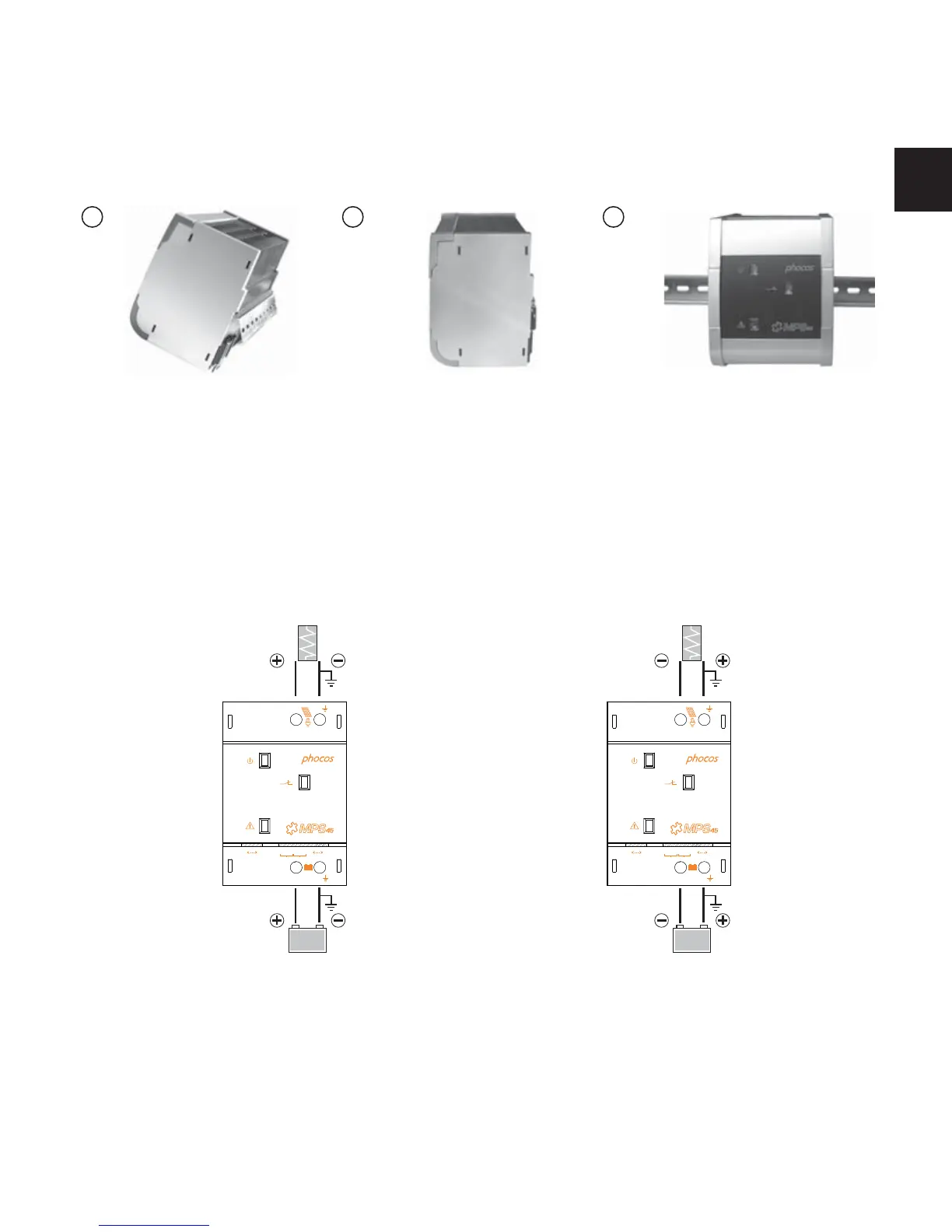

Please see fig .1, 2 and 3 showing how to install the MPS controller on a standard 35 mm DIN Rail.
Mount Din Rail onto a vertical surface.
Mount MPS in a way that ensures there is enough space below and above for the air to vertically
air flow through the ventilation grill.
3.3.3 Connecting the battery
Respect that batteries store a substantial amount of energy which can produce high current
and electric arc when a short circuit is applied to the battery. It is recommended to install a
battery fuse which must be able to carry currents of 1.5 times of your nominal system current
1 2
3
3.3.2 Grounding
MPS can work in negative or positive grounded systems.
Select the type of grounding according to your system requirements. Respect that all components
in your system should use the same type of grounding!
Positive groundedNegative grounded
com
com
A
B
87654321
AddressMode
com
com
A
B
87654321
AddressMode
Dump load Dump load
39
EN
3.3 Installation Instruction
3.3.1 Wall Mounting
