Typical combinations of antennas and adapter cables
105542_en_00 PHOENIX CONTACT 165

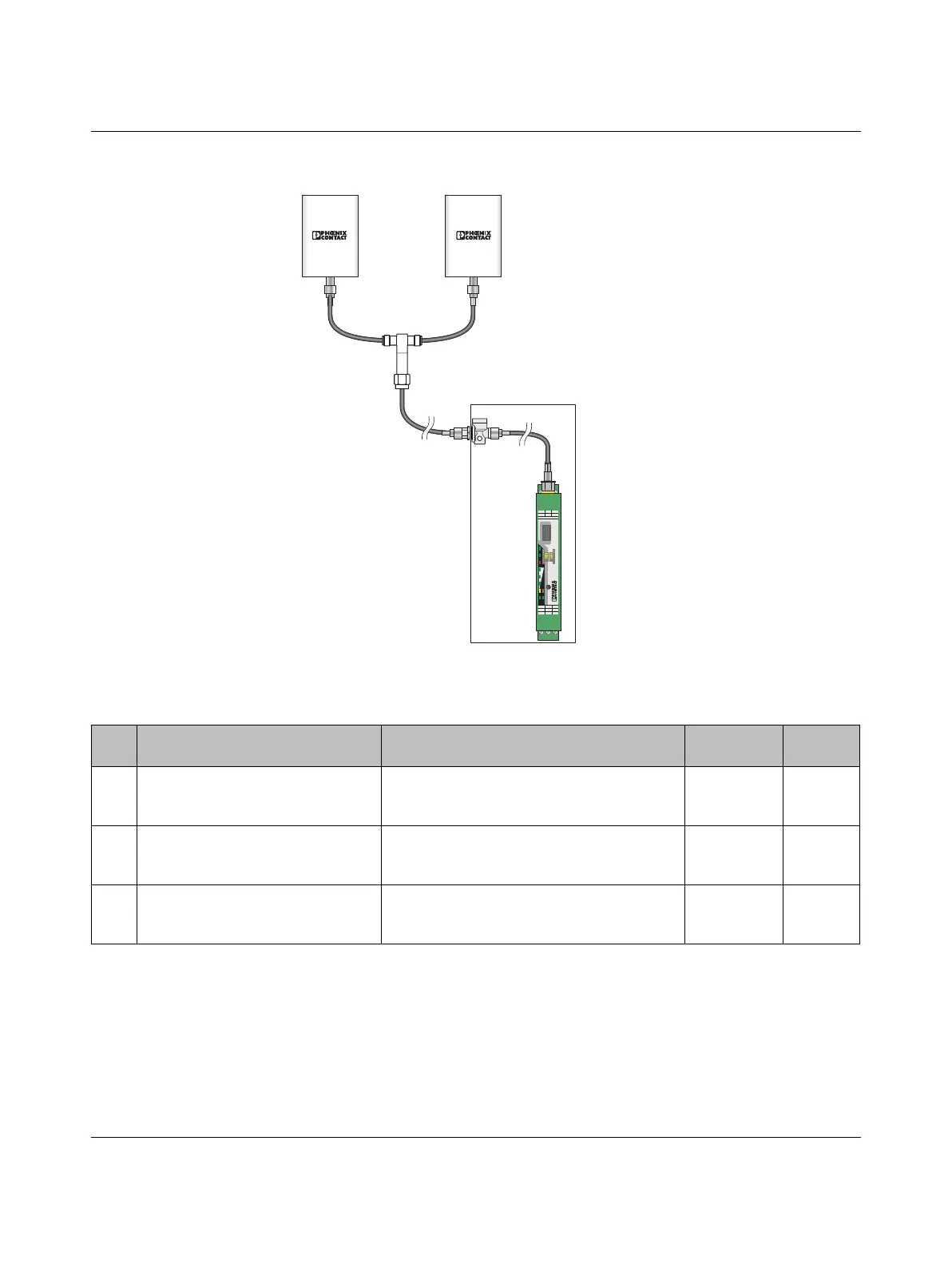

Panel antennas, 8 dBi, with 2-way outdoor antenna splitter
Figure A-7 Panel antennas, 8 dBi, with 2-way outdoor antenna splitter
Items 4 and 5 are optional.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
11
2
2
3
4
5
6
Item Product Description Connection Order
No.
1
RAD-ISM-2400-ANT-PAN- 8-0 Panel antenna, 2.4 GHz, 8 dBi gain, linear ver-
tical polarization, h/v 75°/70° apex angle, IP55
degree of protection
SMA
(female)
2867610
2
RAD-PIG-EF316-SMA-SMA Adapter cable, pigtail 50 cm, insertion loss
1.5 dB at 2.4 GHz
SMA (male)
 SMA
(male)
2885618
3
RAD-ISM-2400-SPL-2-SMA 2-way distributor for antenna signals (antenna
splitter), insertion loss per path 3 dB at
2.4 GHz
2 x SMA
(female) 
SMA (male)
2885595
