14
3. Preparing the charger
a) Plug the larger end of the charging cable into the power
supply.
b) Plug the smaller end into the USB port on the charger.
c) Plug the power supply into a power outlet.
d) The indicator light is green when the charger
is connected to the power supply.

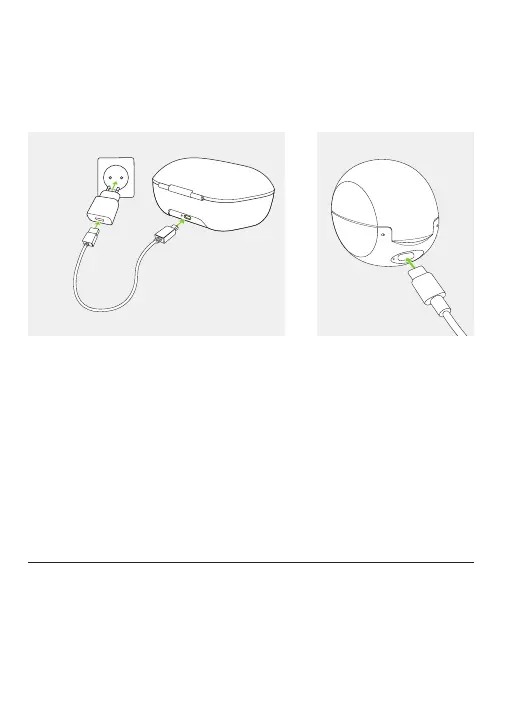

Connecting the power supply
a
b
d
c
b
d
Power supply specication
Power supply output voltage 5 VDC +/-10%, current 1 A
Charger input voltage 5 VDC +/-10%, current 1 A
USB cable specications 5 V min. 1 A, USB-A to USB-C,
maximum length 3 m
