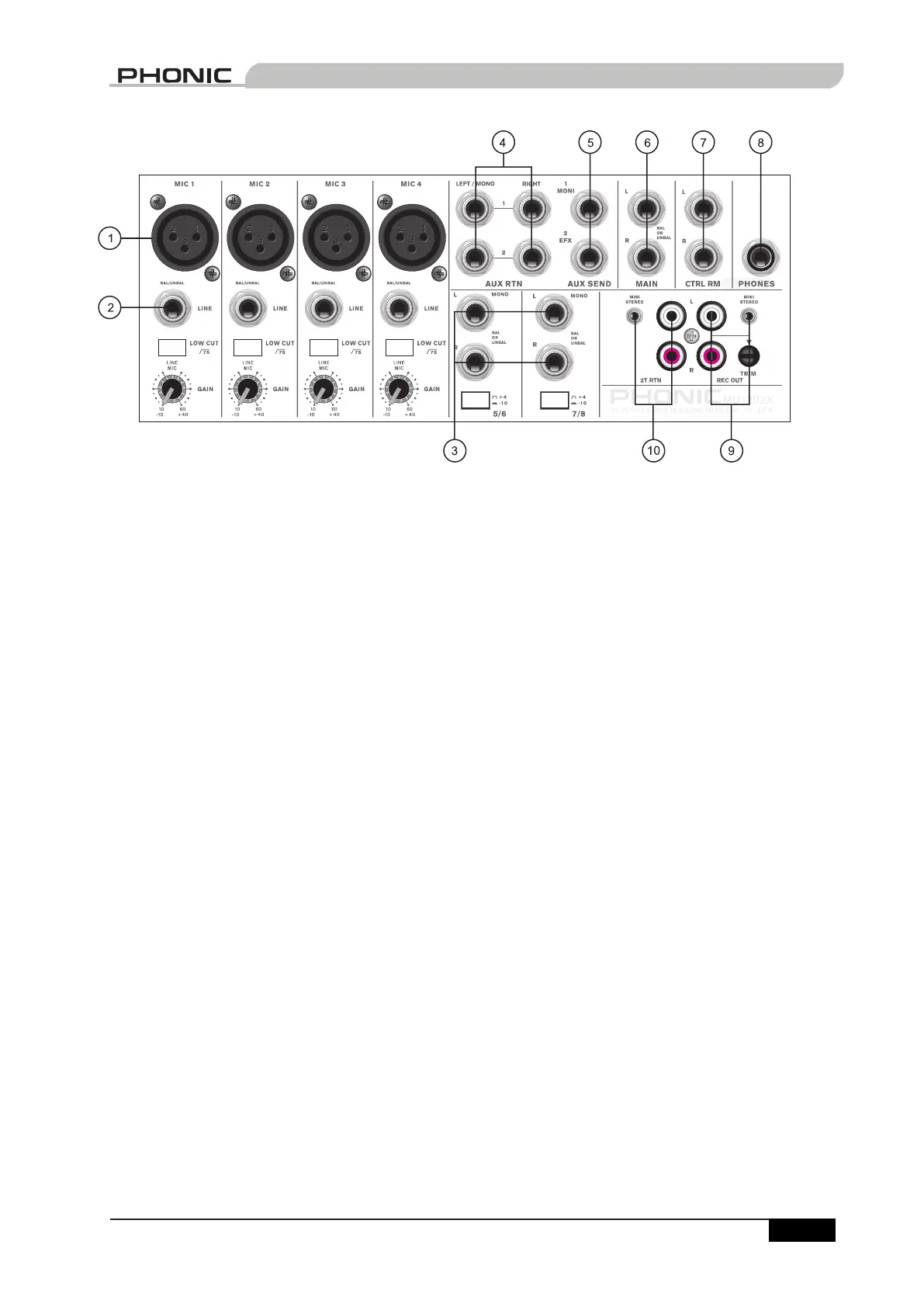

5. AUX / Effects Send
These 1/4” TS outputs may be used to connect to an
external digital effect processor, or even to an amplier
and speakers (depending on your desired settings), to
the mixer.
6. Main L and R Outputs
These two ports will output the nal stereo balanced line
level signal sent from the main mixing bus. The primary
purpose of these jacks is to send the main output to
external devices, which may include power ampliers
(and in-turn, a pair of speakers), other mixers, as well
as a wide range of other possible signal processors
(Equalizers, Crossovers, etcetera).
NB. When sending unbalanced signals from this output, a 1/4" TRS stereo plugs
must be used and have the ring-pin disconnected, as to avoid damaging this
mixer.
7. Control Room Outputs
These two 1/4” Phone Jack outputs feed the signal
altered by the CTRL RM / PHONES level control (Or
CTRL RM / SUBMIX level control on the MU1202X) on
the face of the mixer. This output has extensive use, as it
can be used to feed the signal from the mixer to an active
monitor, for the monitoring of the audio signal from within
a booth, among other possible uses.
8. Phones
This stereo output port is suited for use with headphones,
allowing monitoring of the mix. The audio level of this
output is controlled using the CTRL RM / PHONES
level control (Or CTRL RM / SUBMIX level control on
the MU1202X).
9. Record Out
These outputs will accommodate RCA cables, able to be
fed to a variety of recording devices. Also included is a
mini stereo jack for the addition of recording devices such
as MD players, and even laptop computers, as well as a
Trim control, allowing users to control the output signal
level, ensuring total control over recording quality.
10. 2T Return
These RCA and mini stereo inputs are used to connect
the mixer with external devices, such as tape and CD
players, or even Laptop computers, receiving a signal
from another source and feeding it to the Main L-R
mixing bus.
MU1202X
