Phonocar VM 024 - Connessioni • Connections

2
IT/GB

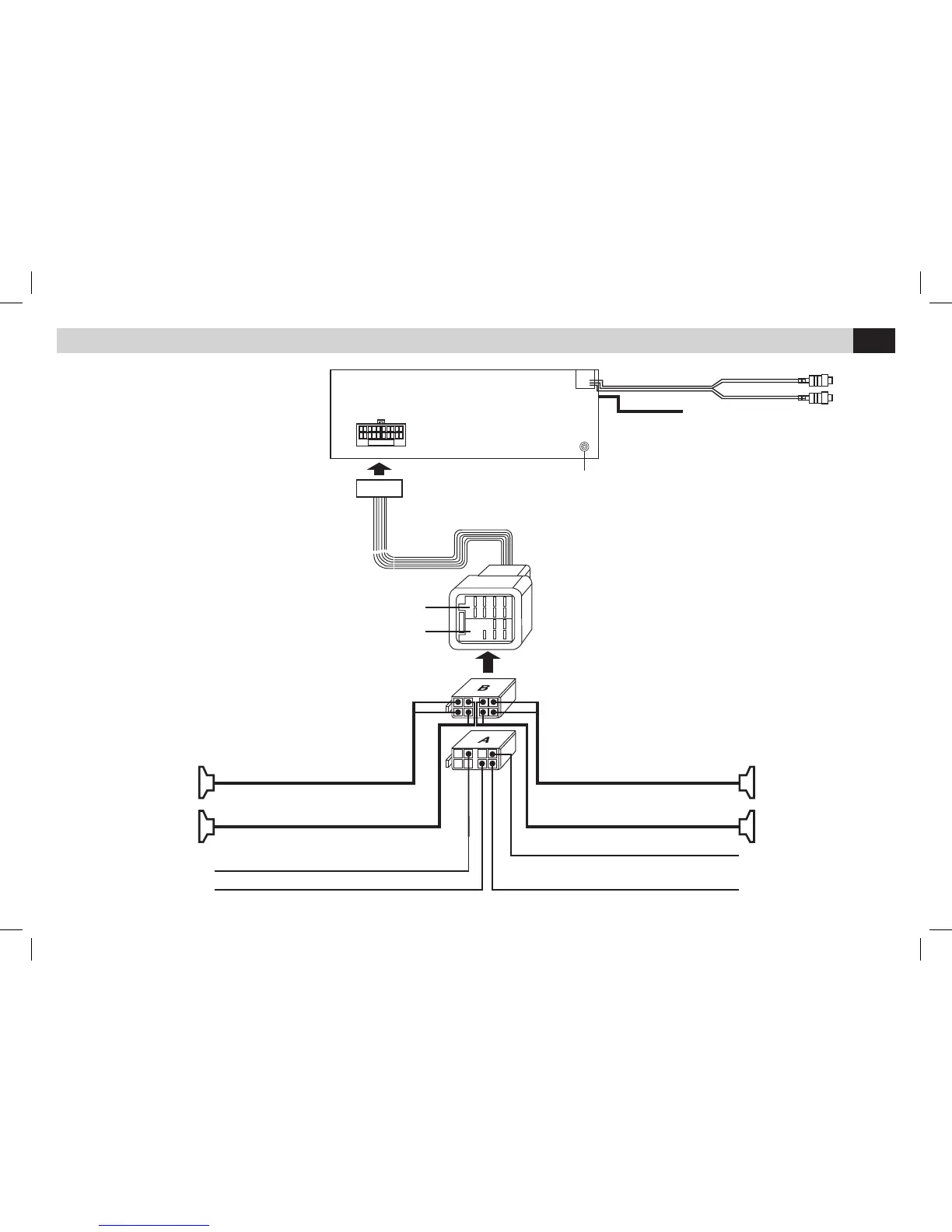

CONNESSIONI • CONNECTIONS
+ BLU / BLUE REMOTE
+12V ROSSO SOTTOCHIAVE
RED IGNITION SWITCH
- NERO MASSA / BLACK GROUND
+12V GIALLO PERMANENTE
YELLOW MEMORY BACK-UP
GRIGIO AP ANTERIORE DX
GREY SPEAKERS FRONT DX
VIOLA AP POSTERIORE DX
VIOLET SPEAKERS REAR DX
USCITA / OUTPUT
AUDIO
IR ESTERNO
COMANDI AL VOLANTE
IR OUTER STEERING
WHEEL
ANTENNA
AERIAL
BIANCO / WHITE SX
ROSSO / RED DX
B
A
1
2
3
4
5
6
5
4
7
8
7
8
BIANCO AP ANTERIORE SX
WHITE SPEAKERS FRONT SX
VERDE AP POSTERIORE SX
GREEN SPEAKERS REAR SX
