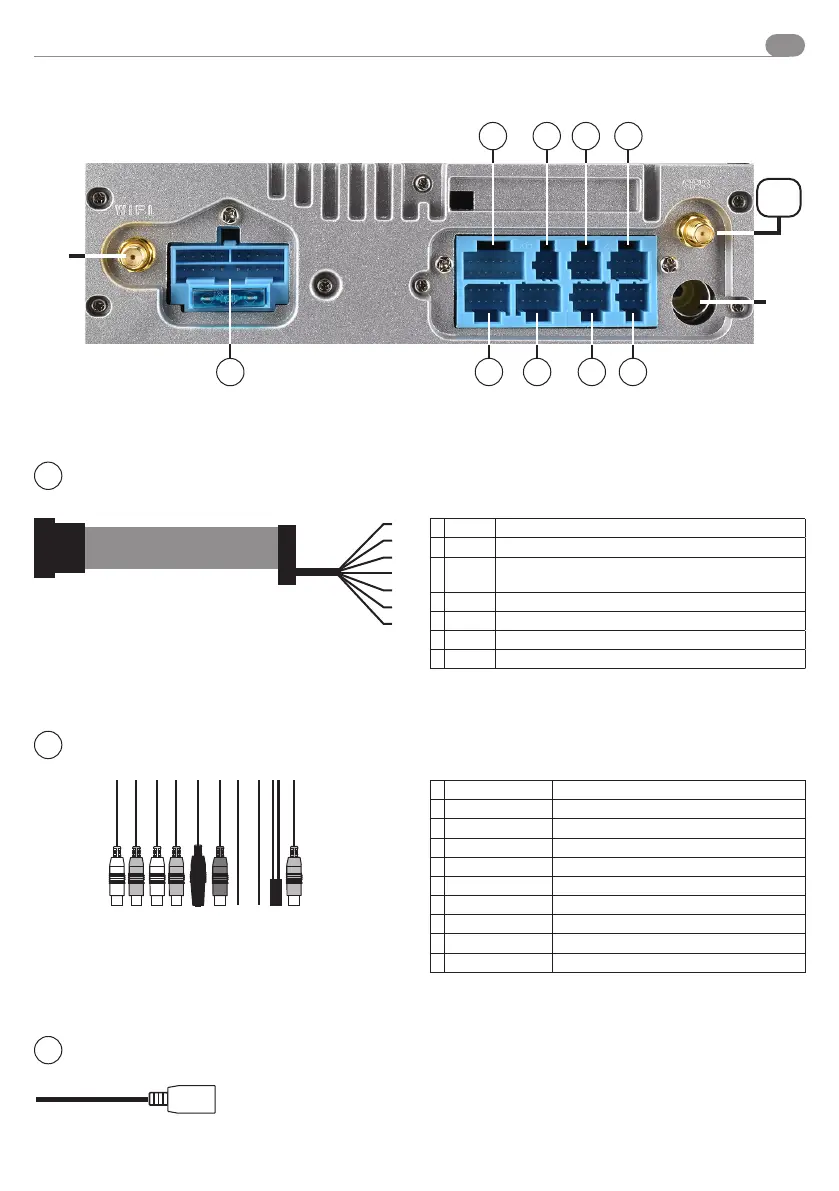

Connections
1
DAB INPUT 1
POWER SUPPLY, LOUDSPEAKERS’ OUTPUTS, SWC
A
B
C
D
E
F
G
A
KEY 1 Green-White, SWC Line
B
KEY 2 Grey-White, SWC Line
C
KEY
GND
Black, Ground SWC
D
BACK Brown, Rear camera activation +12V reversing light
E
P.ANT Blue, Electric Antenna ON
F BRAKE
Pink
G F.CAM
Blue-White, 12V (Activated by connecting the BACK cable)
1
2
9
3
8
4
7
5
6
GPS
ANTENNA
AERIAL
FM/AM
WI-FI
6
3
CABLING IN/OUT
A
RL OUT White - Rear Left
B
RR OUT Red - Rear Right
C
FR OUT White - Front Left
D
FL OUT Red - Front Right
E
MICROPHONE
F
SUB OUT Black - Sub Woofer Output
G
VIDEO OUT Yellow - Video Output
H
AUX VIDEO IN Yellow - Video Input
I
CAN-BUS IN NOT ENABLED
J
CENT AUTO Brown - Audio output
A B C D E F G H I J
USBOTG-11
USB
To Next Page
