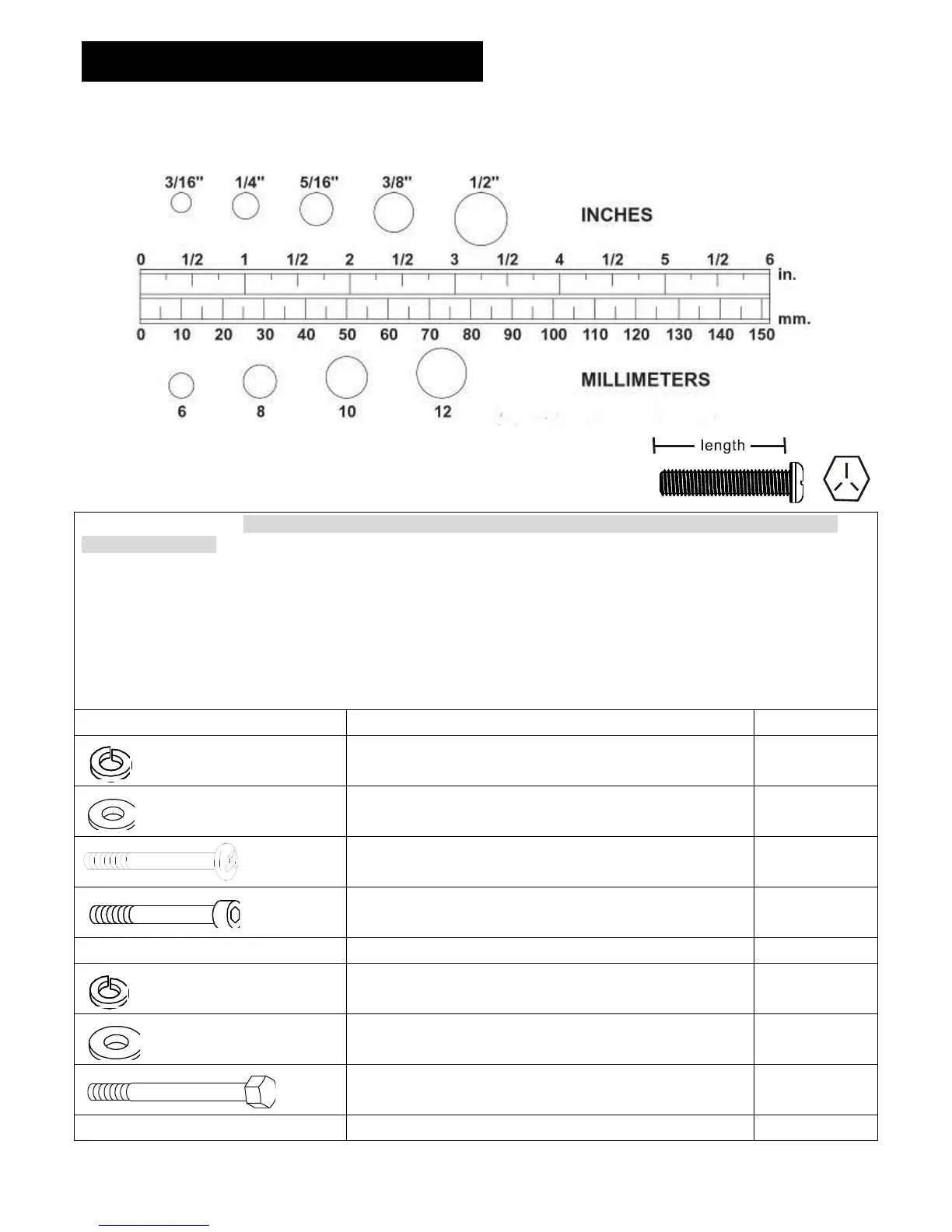

“HARDWARE IDENTIFICATION CHART”
Unpack the box in a clear area. Follow the List of Hardware Kit below. This chart is provided to help identify the hardware
used in the assembly process. Place the washers, the end of bolts, or screws on the circles to check for the correct
diameter. User the small scale to check the length of the bolts and screws. Do not dispose of the packing material until the
assembly process is completed
NOTICE: The length of all bolts and screws except those with flat heads is
Measured from below the head to the end of the bolt or screw. Flat head
bolts and screws are measured from the top of the head to the end of the
bolt or screw
After unpacking the unit, you will notice that the package includes 2 bags of hardware (HARDWARE KIT A and
HARDWARE KIT B).
Assembly’s Step 1~5: Using HARDWARE KIT A
Assembly’s Step 6~8 : Using HARDWARE KIT B
Assembly’s Step 9~11 : Using HARDWARE KIT C
Note:
Please review below to know the content of each hardware kit (A and B)
Some small parts may have been pre-attached for shipping. If a part is not in the hardware bag, check to see if it has been
pre-assembled.
HARDWARE KIT A
Part No. and Description
Q’TY
92 Lock Washer (M8)
6 pcs
94 Washer (8x16x2.0t)
95 Washer (8x23x2.0t)
2 pcs
2 pcs
108 Screw, Round Head (M5xp0.8x40mm)
1 pc
121 Bolt, Socket Head (M8xp1.25x30mm)
125 Bolt, Socket Head (M8xp1.25x70mm)
126 Bolt, Socket Head (M8xp1.25x90mm)
2 pcs
2 pcs
2 pcs
HARDWARE KIT B
Part No. and Description
Q’TY
92 Lock Washer (M8)
14 pcs
94 Washer (8x16x2.0t)
14 pcs
115 Bolt, Hex Head (M10xp1.5x90mm)
1 pc
