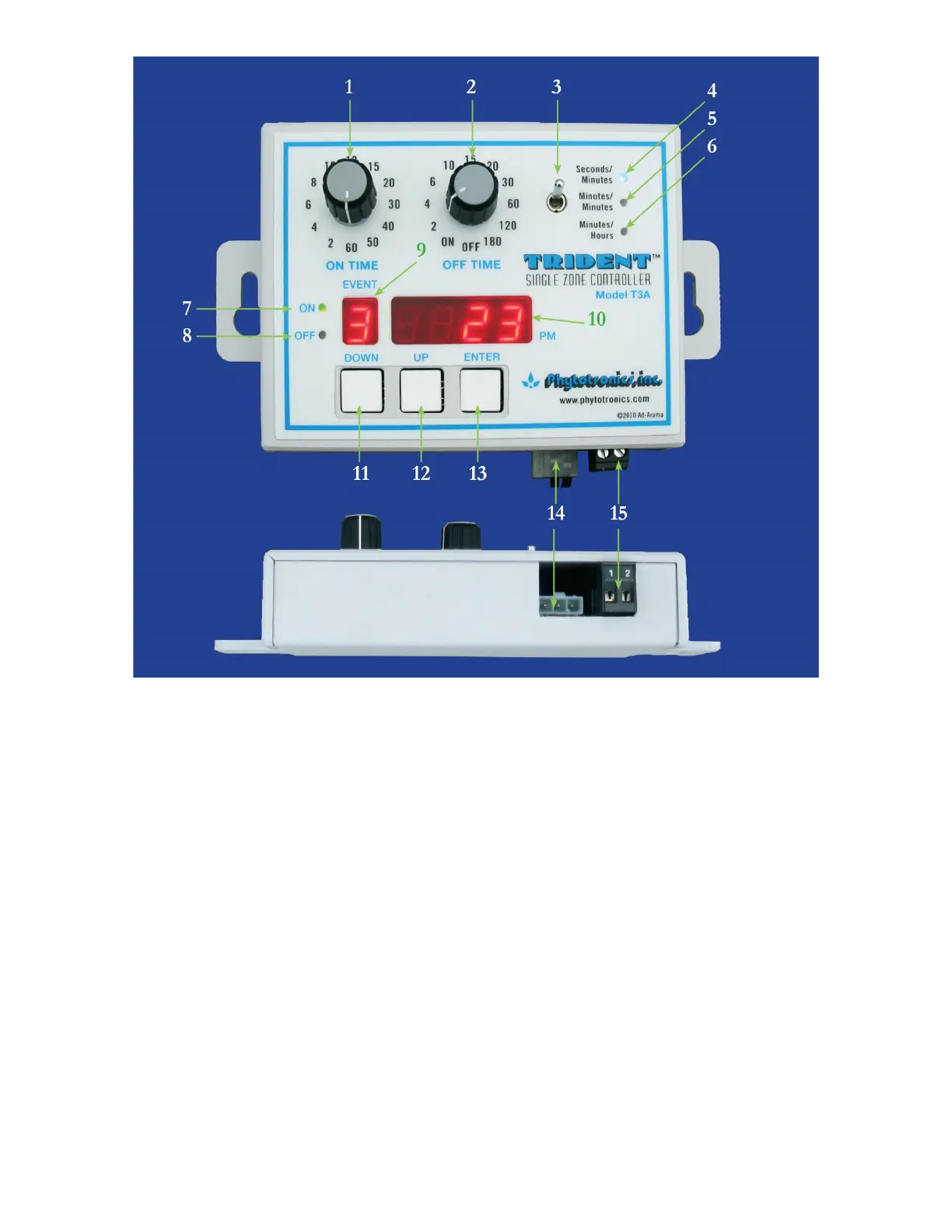

1) “ON” Time Rotary Switch
2) “OFF” Time (or Time Between Cycles) Rotary Switch
3) MODE Selector Switch
4) Seconds/Minutes (“A” Mode) LED
5) Minutes/Minutes (“B” Mode) LED
6) Minutes/Hours (“C” Mode) LED
7) Solenoid “ON” LED
8) Solenoid “OFF” LED
9) Event (or Program) 7- Segment Display
10) Clock/Timer 7- Segment Display
11) “DOWN” Button
12) “UP” Button
13) “ENTER” Button
14) Power Plug (24 Volts AC)
15) Solenoid Plug
1
Connecting Power
