Manual P3010 Page 4/8
2.3 Installation/Connection

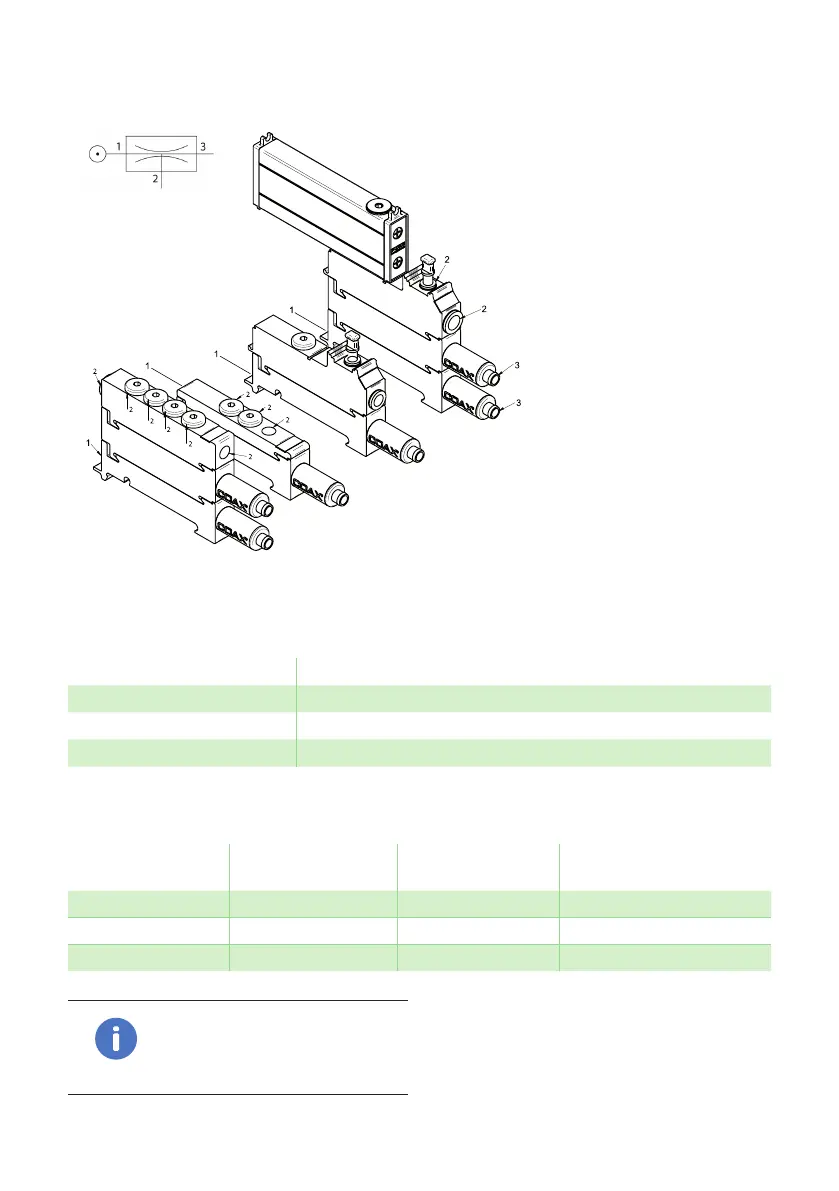

Figure 1 Connections.
Recommended hose dimensions in mm
[in.] (internal diameter)
Connections COAX® cartridge (type & number) Pi12-3, Si08-3, Xi10-3
1 Compressed air ≥ 4 [≥0.16]
2 Vacuum ≥ 8 [≥0.31]
3 Exhaust ≥ 10 [≥0.39]
Feed pressure, vacuum level and exhaust
pressure
COAX
®
cartridge Feed pressure
MPa [psi]
Max. vacuum
-kPa [-inHg]
Max. exhaust pressure
MPa [psi]
Pi48-2, Pi48-3 0.3–0.4 [43.5–58] 90 [26.6] 0.13 [18.9]
Si32-2, Si32-3 0.6 [87] 75 [22.2] 0.07 [10.2]
Xi40-2, Xi40-3 0.45 [65.3] 94 [27.7] 0.09 [13.1]
Note!
Maximum installation cable
length: 30 m.
