Manual P3010 Page 7/8
3. Mounting and
accessories

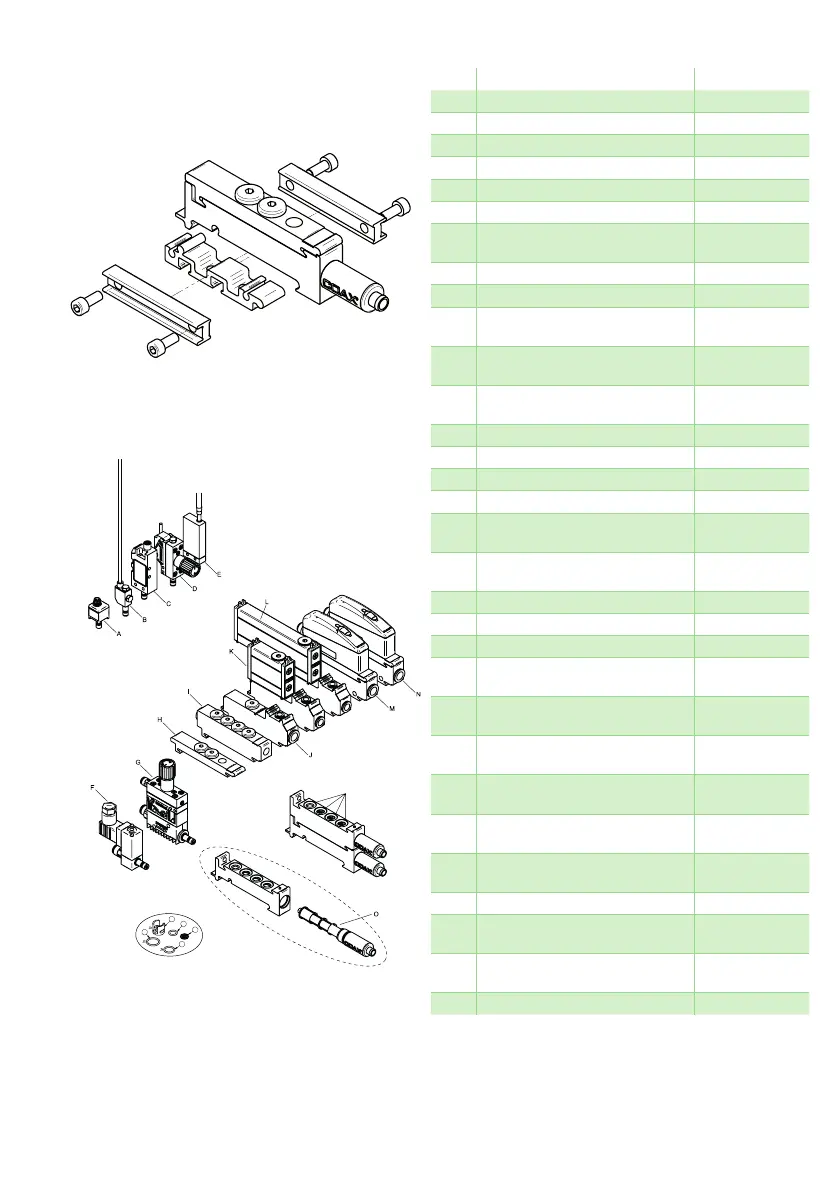

Figure 3 Mounting and accessories.
4. Spare parts
P
5
4
2
3
1
Q
Figure 4 Spare parts.
Pos Description Spare part no.
A Vacuum switch VS4015 30 -kPa 0110245
A Vacuum switch VS4015 50 -kPa 0110246
A Vacuum switch VS4015 70 -kPa 0110247
B Vacuum switch, PNP NO LM8 0107731
C Vacuum switch, PNP NO MM8 0107729
C Vacuum switch, NPN NO MM8 0107730
D Vacuum switch Inductive, adj.,
knob, PNP/NPN NO/NC
0104350
E Vacuum switch, PNP NO DM8 0107732
E Vacuum switch, NPN NO DM8 0107733
F Solenoid valve DS23 cpl., Con-
trol of ON/OFF
0104274
G Vacustat, 2/2 NO, small hys-
teresis
0118100
G Vacustat, 2/2 NO, large hys-
teresis
0118200
H Connection Module 3X1/8” 0104269
I Connection Module 6X1/8” 0104270
J Quick-release module 8/6 - 3 0104271
J Quick-release module 10/6 - 3 0104351
K Quick-release tank module
30cm
3
0104272
L Quick-release tank module
60cm
3
0104273
M Function P3010 AVM2 NO 0117921
M Function P3010 AVM2 NC 0117920
N Function P3010 CU NO 0117696
O COAX
®
Cartridge Mini Pi12-3
FS
0104265
O COAX
®
Cartridge Mini Pi12-3
AFS
0106676
O COAX
®
Cartridge Mini Si08-3
FS
0113579
O COAX
®
Cartridge Mini Si08-3
AFS
0113581
O COAX
®
Cartridge Mini Xi10-3
FS
0120775
O COAX
®
Cartridge Mini Xi10-3
AFS
0120776
P O-rings P3010, NBR, 4 pcs 3113922
Q Spare part kit COAX
®
cartridge
MINI
0109532
R Extension module P3010, excl.
vacuum cartridge
0104268
S Vacuum filter P3010 0104341
