PIAGGIO MP3 300 - Page 68

03_35
03_36

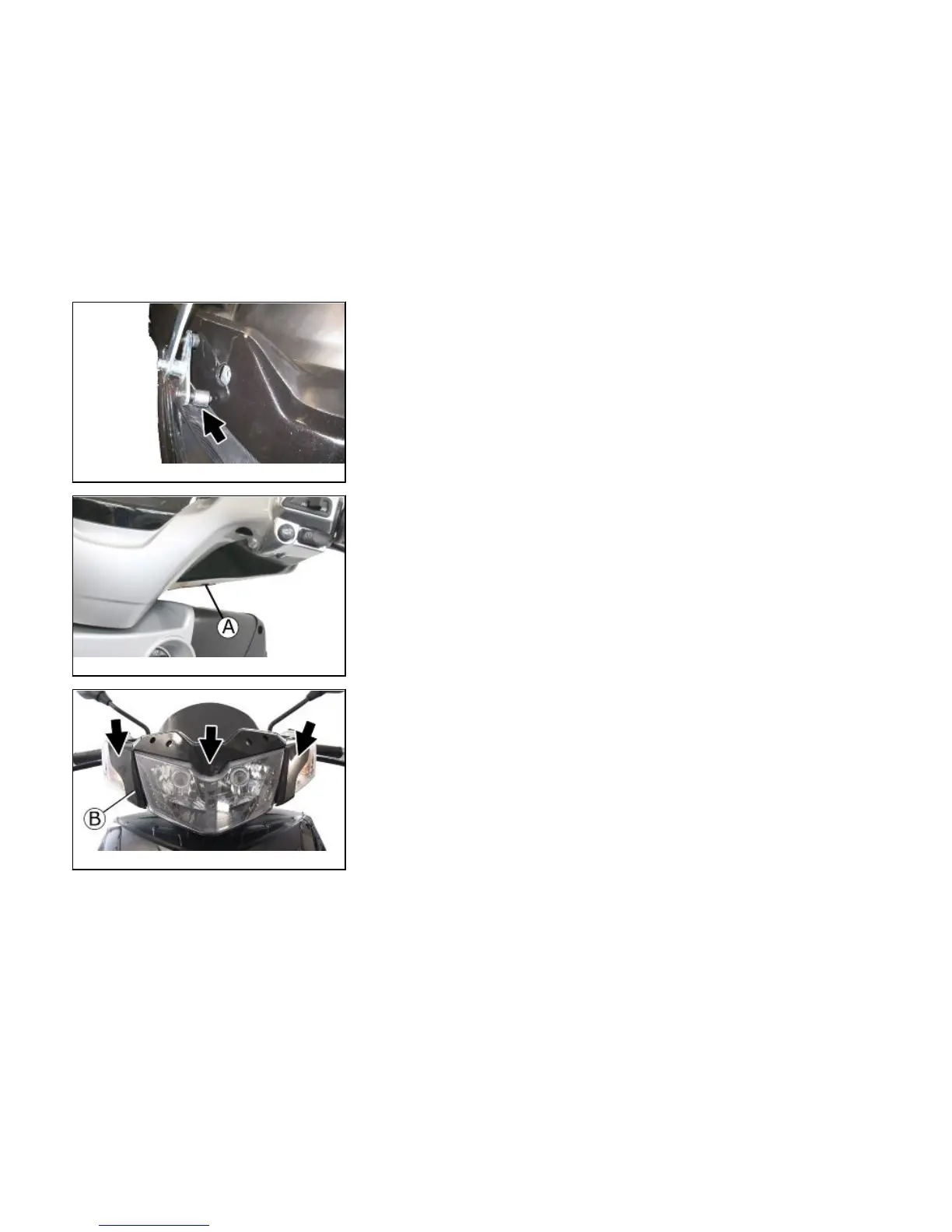

- Remove the 2 screws "A" right and left at the back of the handlebar.
03_37
- Remove the head lamp surround "B"
WARNING!: the surround is fastened, where indicated in the figure, with the trigger
slots. Pay attention, during the removal to not damage them or even break them.
68
3 Maintenance
