03_38

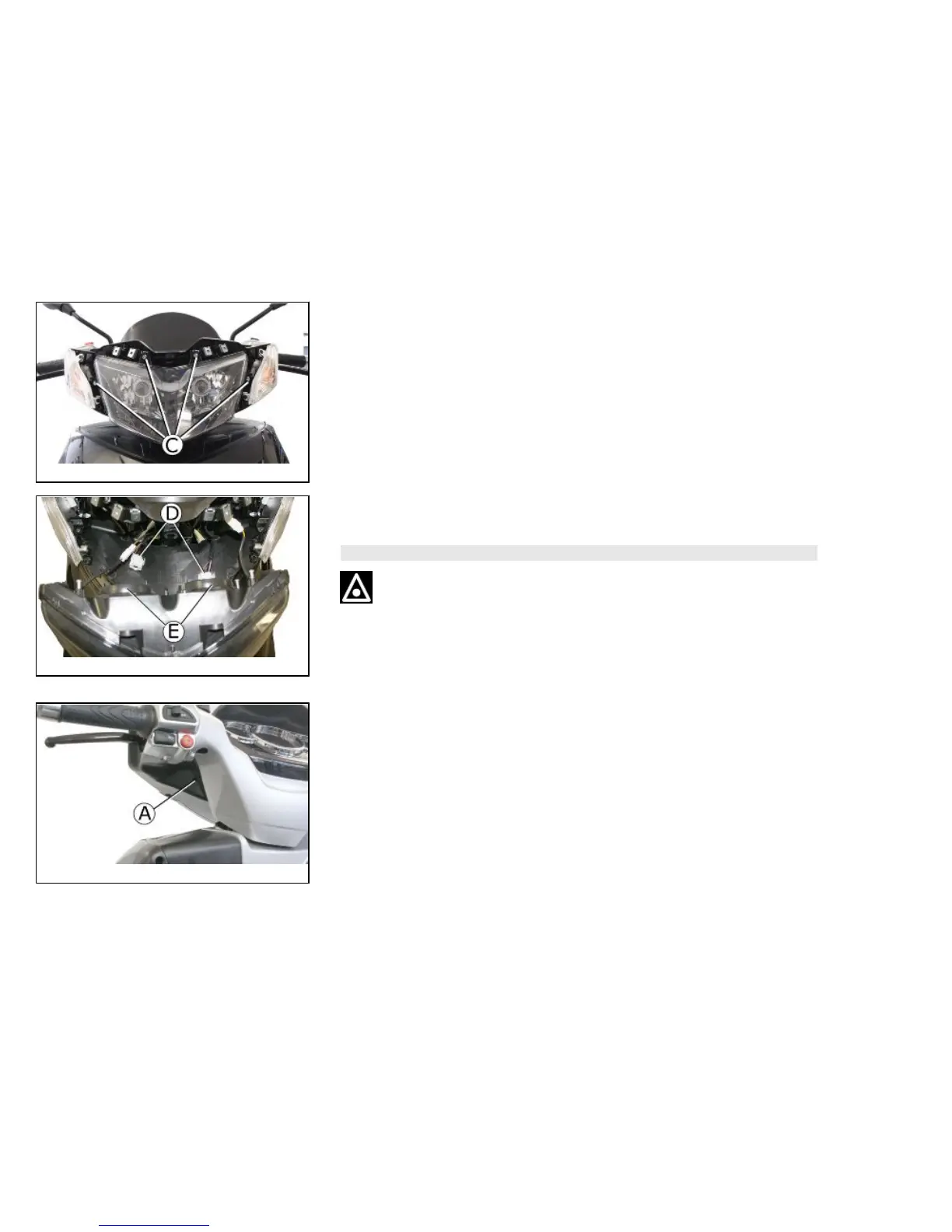

- Remove the 4 fixing screws "C" of the front light unit.
03_39
- Remove the headlight. Remove the bulb connectors "D" and access the bulbs by
removing the rubber cover "E".
WARNING
HIGH- AND LOW-BEAM BULBS ARE HALOGEN TYPE: DO NOT TOUCH THEM
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
03_40
Headlight adjustment (03_40, 03_41)
Proceed as follows:
1. Position the unloaded vehicle, in running order and with the tyres inflated to the
prescribed pressure, on a flat surface 10 m away from a half-lit white screen; ensure
that the longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the borderline of the projected light beam is
lower than 9/10 and higher than 7/10 of the distance from the ground to the centre of
the vehicle headlight;
3. Otherwise, adjust the headlight with the screw «A» indicated in the figure
To carry out this operation, it is not necessary to remove any cover.
69
