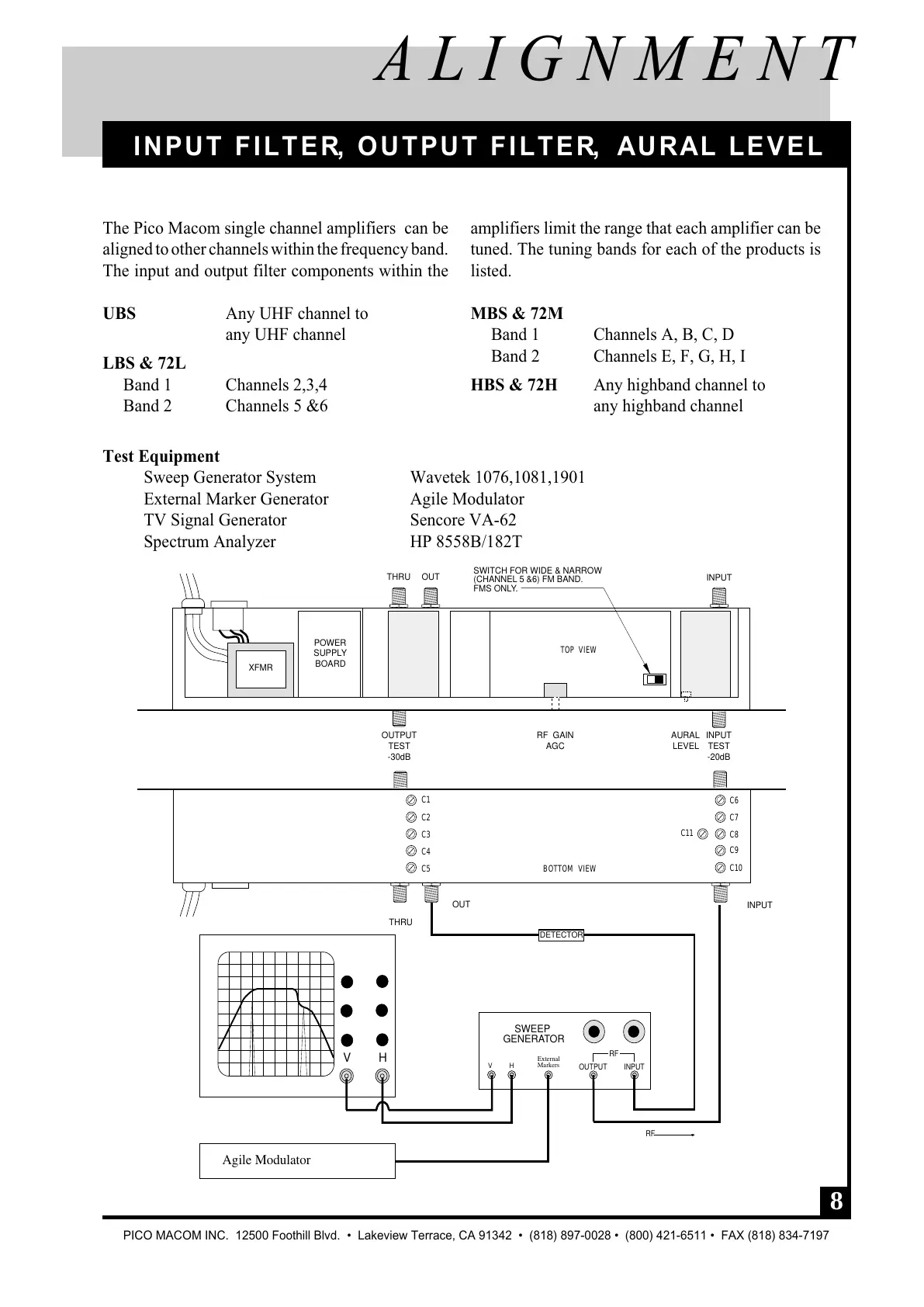

A L I G N M E N T
I N P U T F I L T E R, O U T P U T F I L T E R, A U R A L L E V E L
8
amplifiers limit the range that each amplifier can be
tuned. The tuning bands for each of the products is
listed.
UBS Any UHF channel to
any UHF channel
LBS & 72L
Band 1 Channels 2,3,4
Band 2 Channels 5 &6
MBS & 72M
Band 1 Channels A, B, C, D
Band 2 Channels E, F, G, H, I
HBS & 72H Any highband channel to
any highband channel
The Pico Macom single channel amplifiers can be
aligned to other channels within the frequency band.
The input and output filter components within the
Test Equipment
Sweep Generator System Wavetek 1076,1081,1901
External Marker Generator Agile Modulator
TV Signal Generator Sencore VA-62
Spectrum Analyzer HP 8558B/182T
IN
TOP VIEW
XFMR
BOARD
POWER
SUPPLY
RF GAIN
AGC
AURAL
LEVEL
INPUT
TEST
-20dB
OUTPUT
TEST
-30dB
THRU OUT
INPUT
DETECTOR
RF
THRU
OUT
INPUT
BOTTOM VIEW
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
Agile Modulator
RF
INPUT
V
H
OUTPUT
SWEEP
GENERATOR
HV
External
Markers
SWITCH FOR WIDE & NARROW
(CHANNEL 5 &6) FM BAND.
FMS ONLY.
