Pilot-1 Aeronca Champ - Page 27

27

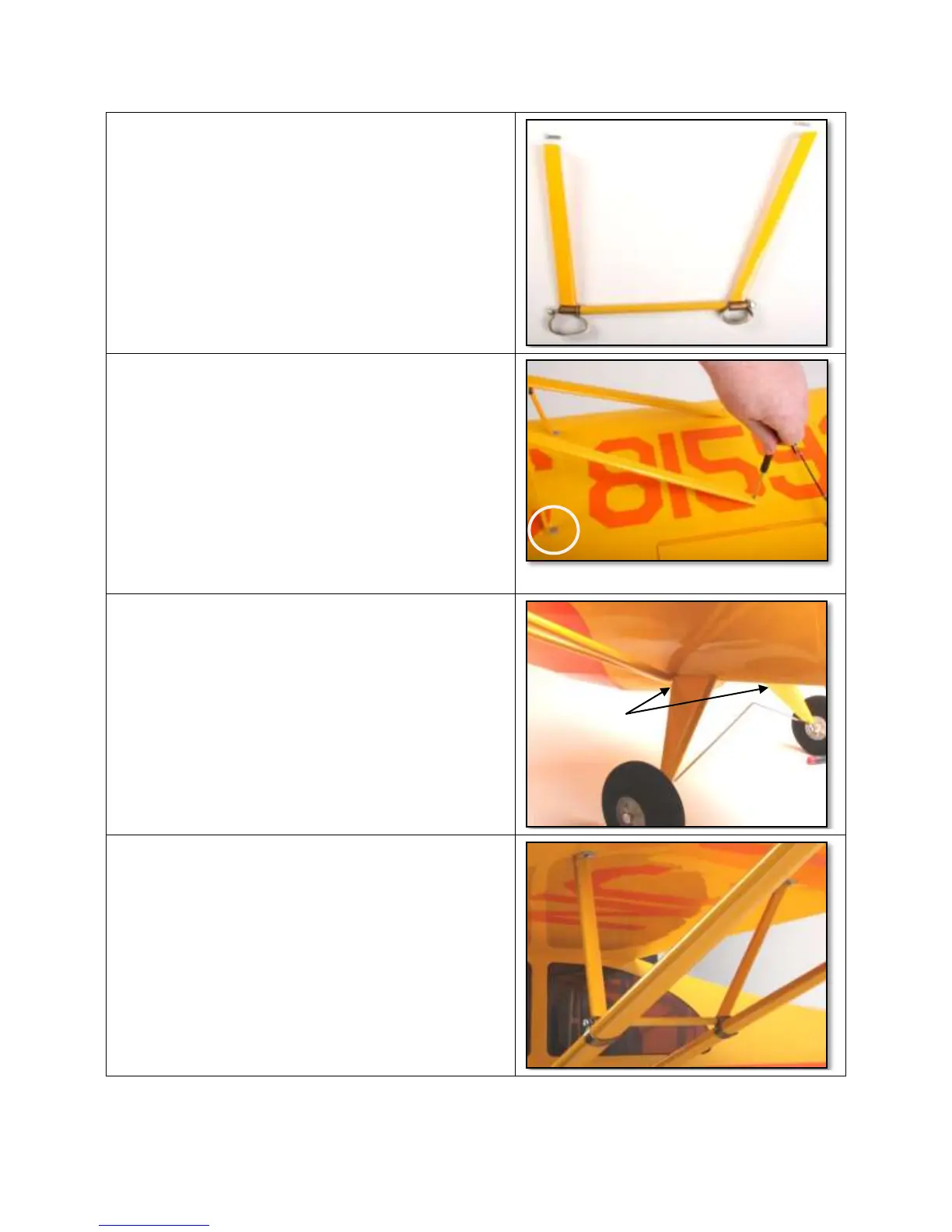

89. Trial fit all the jury strut parts as shown here.
90. Install the main wing struts with the longer
screws. Also install the jury struts as shown.
Note that the jury strut top “L” bracket points
toward the wing tip.
91. Install the Wing strut countersunk screws in
the end of the struts.
92. Here is another photo of the completed jury
strut assembly.
Install Screws
