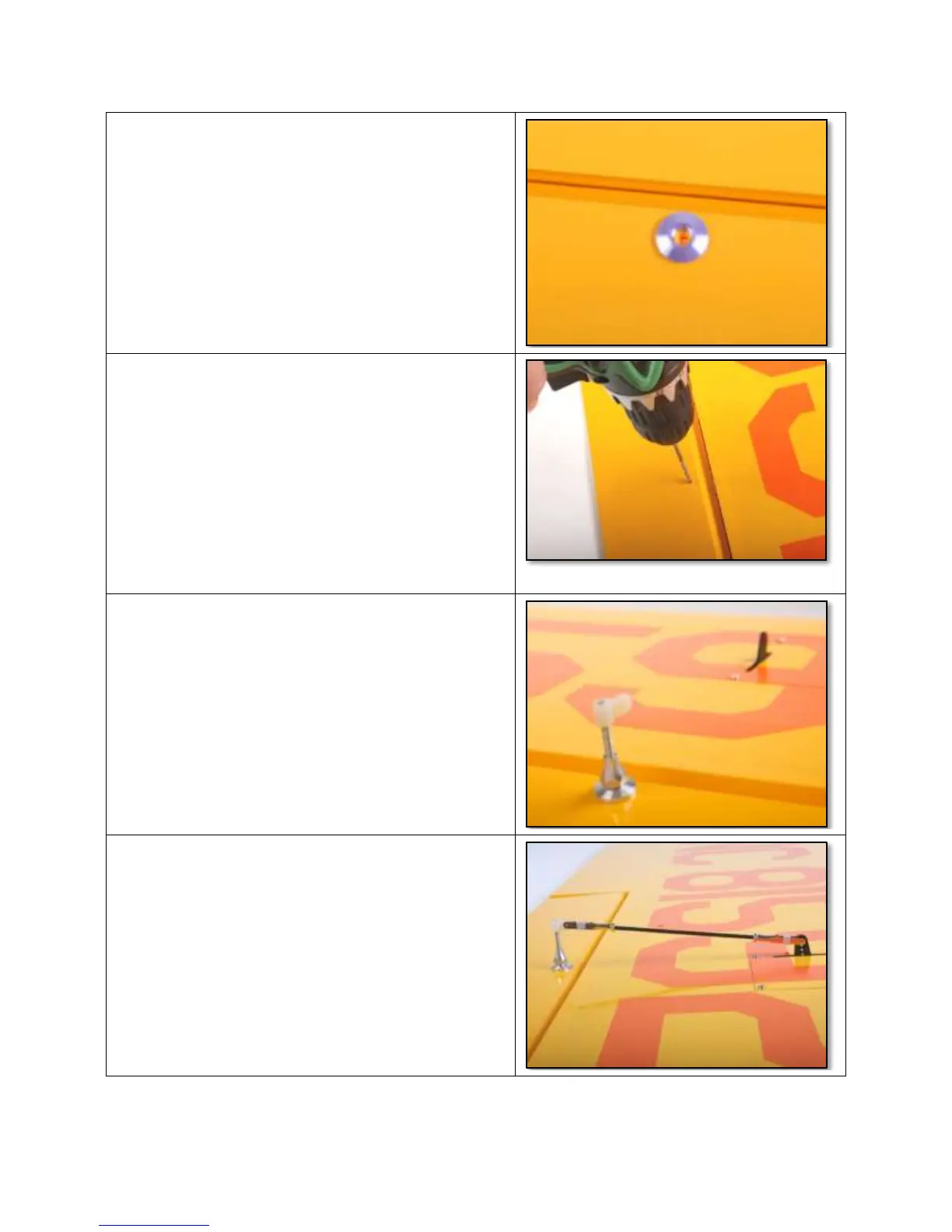

13. Use aileron horn washer as a guide to how
far back on aileron to drill. Mark center on
washer with pen.
14. Drill a 1/8” hole through wing. Take special
care to keep drill straight.
15. Install washer on screw, then insert through
aileron. Then insert another washer, tapered
nut, and nylon horn as shown. Tighten snug
but do not crush wood.
16. Install aileron pushrod, nut, clevis, and
clevis safety tubing as shown. With servo
centered, adjust pushrod length to level
aileron.
