Before Assembly:
- Read instructions and check that all parts are present in the boxes. If any parts are missing,
refer to warranty information on pg. 9.
- Assembly will require at least two persons and 2 hours.
- A stepladder will be required for assembly.
- The gazebo should be assembled on a level, flat surface.

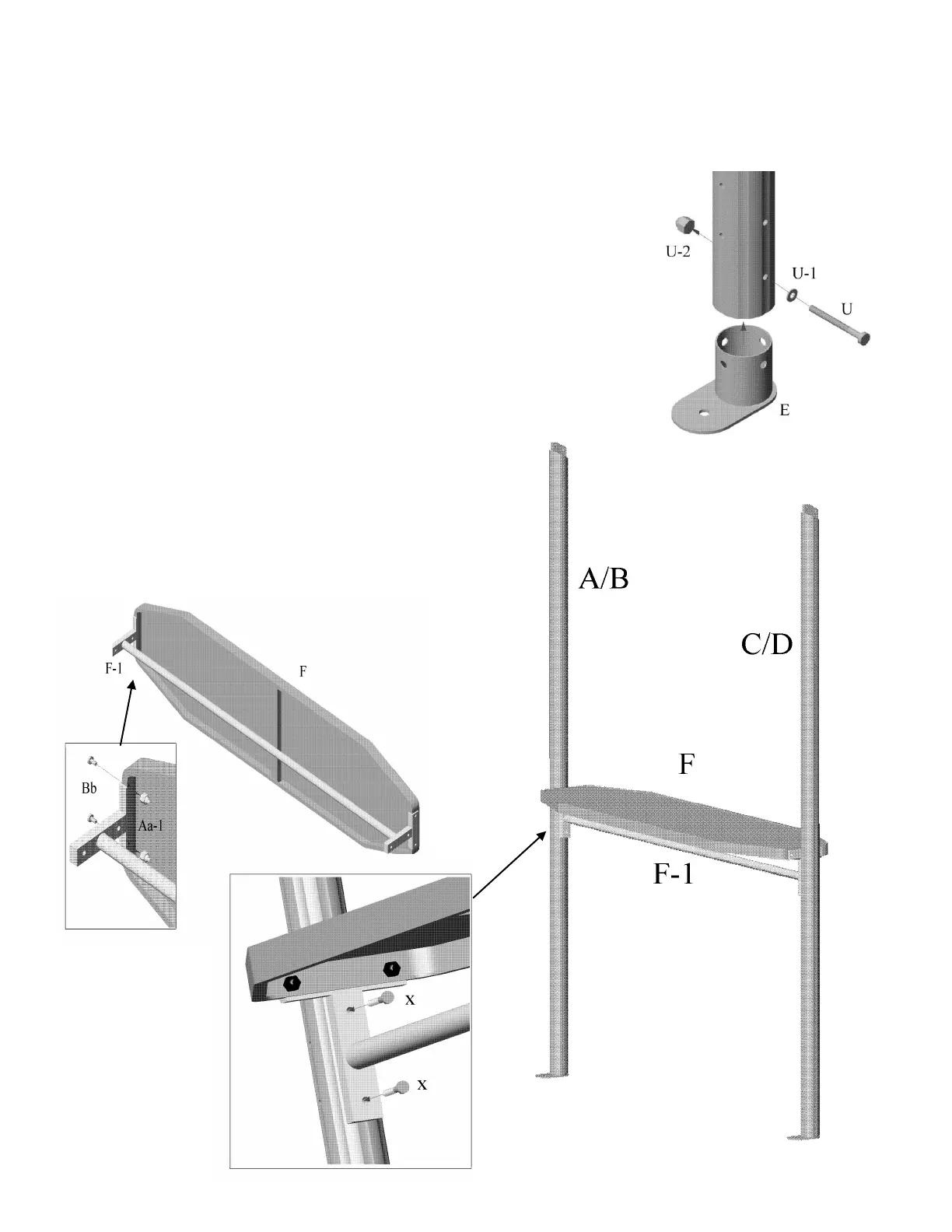

Step 1:
Assemble each leg (A, B, C, D) onto base (E) using bolt (U), washer
(U-2), and acorn nut (U-1). Each base can be installed in 4
directions, orient as required for your surface.
Step 2:
Assemble shelf support bar (F-1) under each top
shelf (F) using 4 bolts (Bb) and locknuts (Aa-1)
each. Attach one shelf between legs (A & C)
using 4 bolts (X). Repeat with the second top
shelf between legs (B & D).
