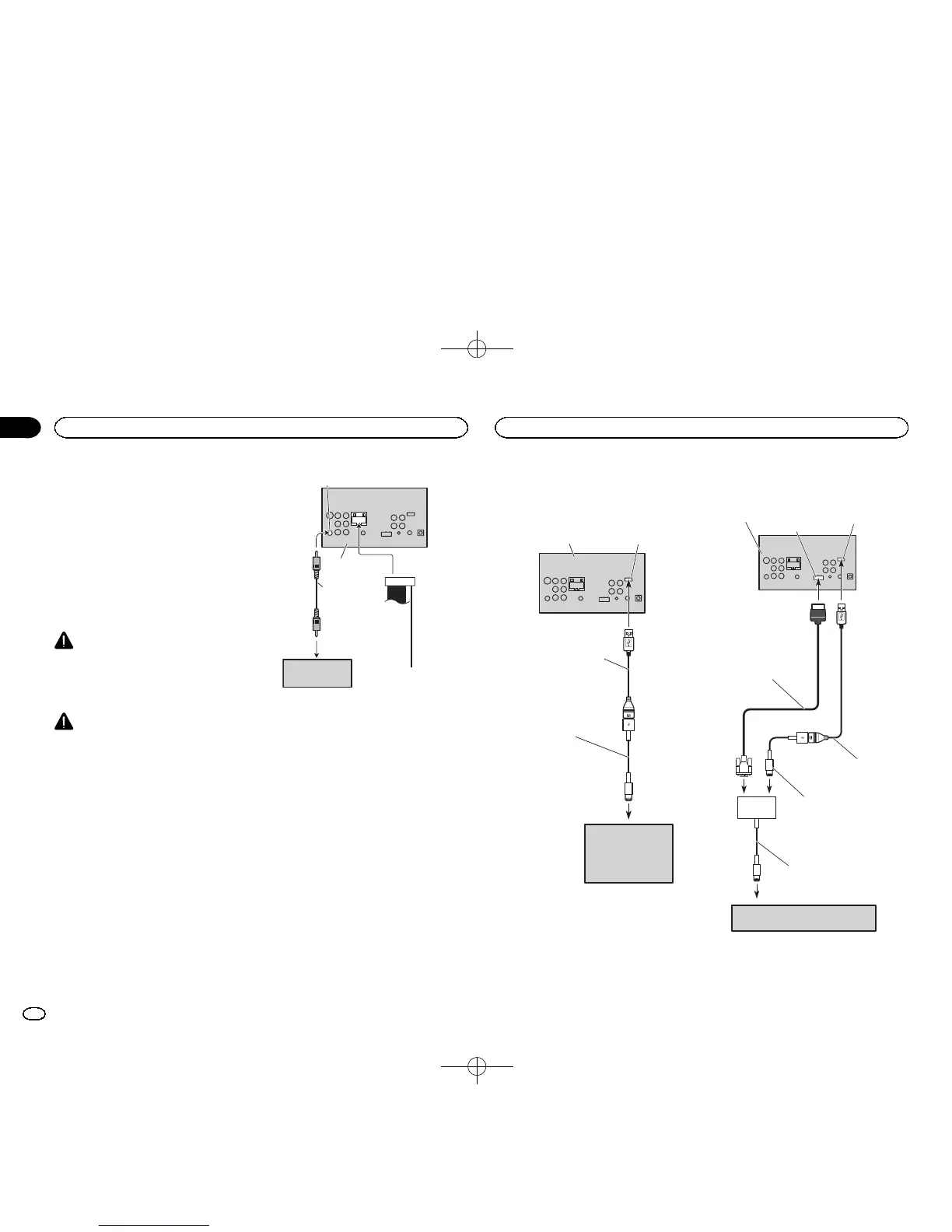

Black plate (52,1)
When connecting with a rear
view camera
If you switch the shift lever to REVERSE (R), the
display on this unit will automatically switch to
the rear view image. You need to set the
Camera Polarity properly in the system unit to
use. For details on settings, refer to Setting the
rear view camera (back up camera) on page 43.
You can also switch to the rear view image by
pressing the touch panel key. For details, refer to
Using the rear view on page 10.
WARNING
USE INPUT ONLY FOR REVERSE OR MIR-
ROR IMAGE REAR VIEW CAMERA. OTHER
USE MAY RESULT IN INJURY OR DAM-
AGE.
CAUTION
! You must use a camera which outputs
mirror reversed images.
! The screen image may appear reversed.
! The rear view camera function is to be used
as an aid to keep an eye on trailers, or while
backing up. Do not use for entertainment
purposes.
! Objects in the rear view may appear closer or
more distant than they actually are.
To video output
Rear view camera
(sold separately)
Rear view camera input (R.C IN)
Violet/white
Of the two lead wires
connected to the back lamp,
connect the one in which the
voltage changes when the
gear shift is in the REVERSE
(R) position. This connection
enables the unit to
sense whether the car is
moving forwards or
backwards.
This product
RCA cable
(sold separately)
iPod with lightning connector
When connecting with optional
CD-IU52 cable
iPod with lightning
connector
(sold separately)
USB cable
(Supplied with this unit)
Connect to separately sold
USB device.
Lightning to USB Cable
(CD-IU52) (sold separately)
This product
USB/iPod input
When connecting with optional
CD-IV203 cable
RGB input
iPod with lightning connector
(sold separately)
Lightning to VGA Adapter
(Apple Inc. products)
(sold separately)
USB/iPod input
This product
USB cable
(Supplied with this unit)
Connect to separately sold
USB device.
RGB to VGA Cable
(CD-IV203) (sold separately)
Lightning to USB Cable
(CD-IV203) (sold separately)
Connection
52
Section
Connection
En
26
<CRD4758-A>52
