73
DEH-2000R,2030R,2020R

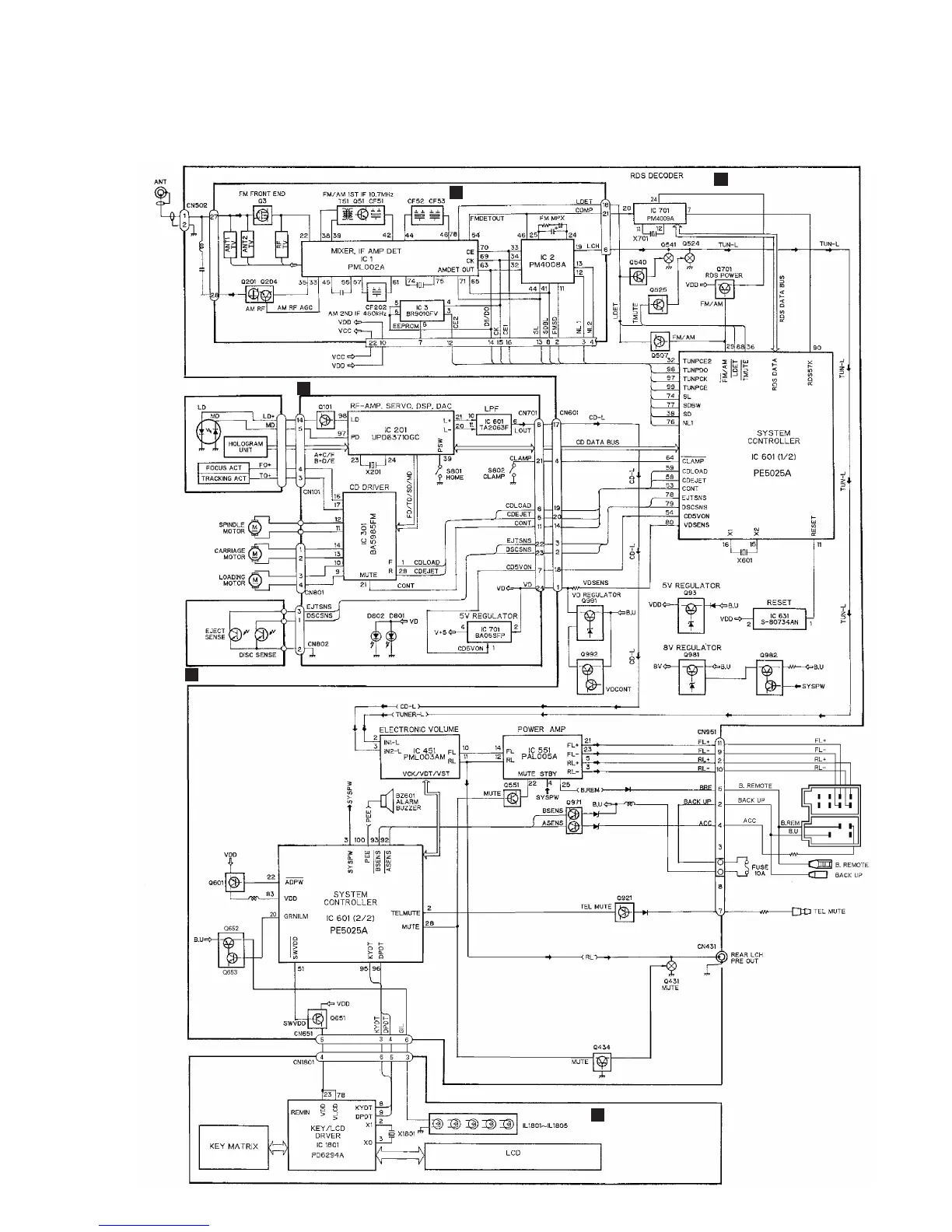

7.3 BLOCK DIAGRAM
- DEH-2000R/X1N/EW, DEH-2030R/X1N/EW
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
D
CONTROL UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E
KEYBOARD UNIT
C
