Pioneer XR-A390 User Manual

_ 3] Controls & Displays

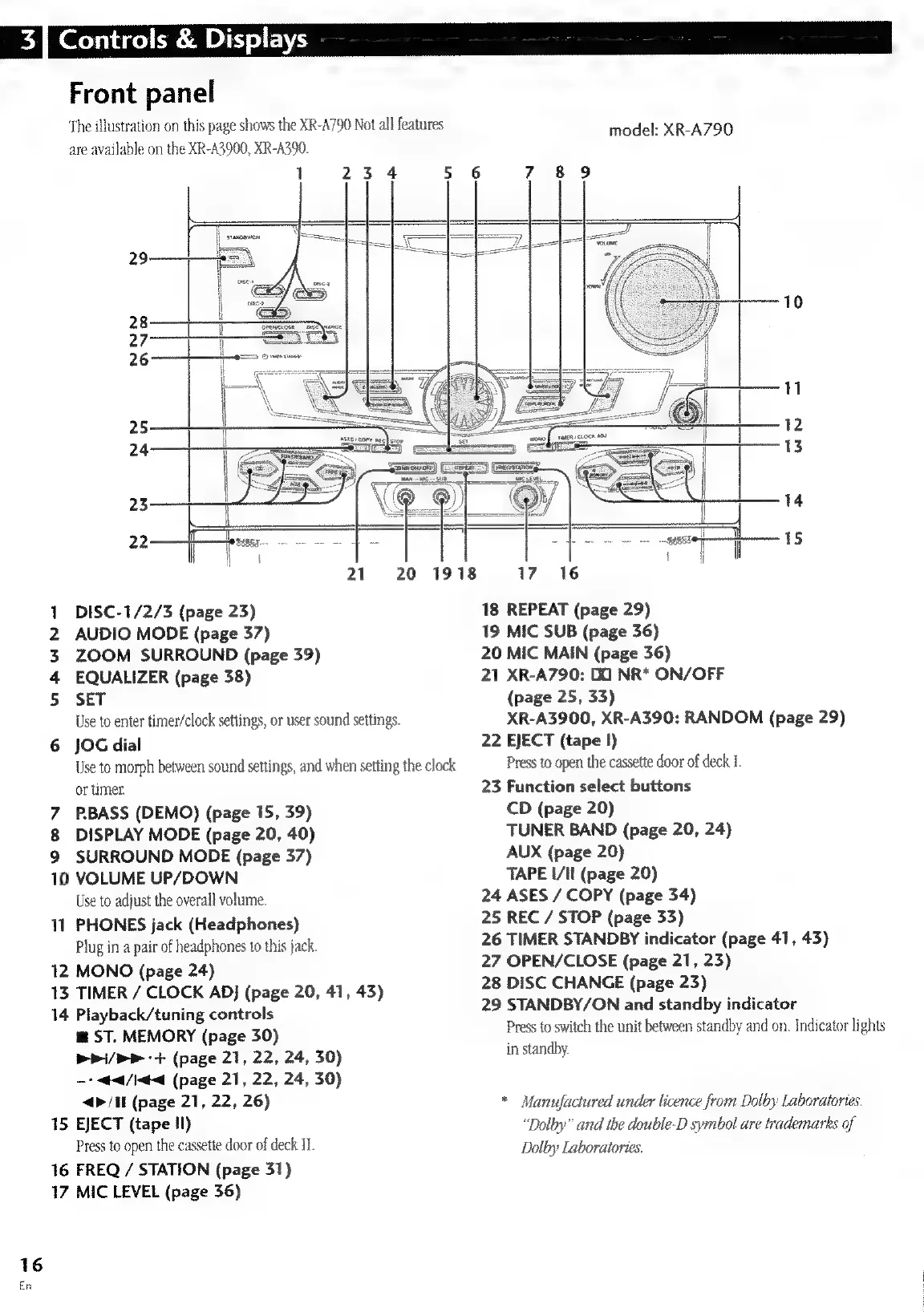

Front panel
The illustration on this page shows the XR-A790 Not all features
are available on the XR-A3900, XR-A390.
3 4
model: XR-A790
21 20 1918
DISC-1/2/3 (page 23)
AUDIO MODE (page 37)
ZOOM SURROUND (page 39)
EQUALIZER (page 38)
SET
Use to enter timer/clock settings, or user sound settings.
JOG dial
wWbWN =
a
Use to morph between sound settings, and when setting the clock
or timer.
P.BASS (DEMO) (page 15, 39)
DISPLAY MODE (page 20, 40)
SURROUND MODE (page 37)
0 VOLUME UP/DOWN
Use to adjust the overall volume.
11 PHONES jack (Headphones)
Plug in a pair of headphones to this jack.
12 MONO (page 24)
13 TIMER / CLOCK AD} (page 20, 41, 43)
14 Playback/tuning controls
m ST. MEMORY (page 30)
>Pi/Pr -+ (page 21, 22, 24, 30)
~' d//44 (page 21, 22, 24, 30)
<> / (page 21, 22, 26)
15 EJECT (tape fl)
Press to open the cassette door of deck I.
16 FREQ / STATION (page 31)
17 MIC LEVEL (page 36)
N
— OO OO
16
En
17 16
18 REPEAT (page 29)
19 MIC SUB (page 36)
20 MIC MAIN (page 36)
21 XR-A790: OO NR* ON/OFF
(page 25, 33)
XR-A3900, XR-A390: RANDOM (page 29)
22 EJECT (tape !)
Press to open the cassette door of deck 1.
23 Function select buttons
CD (page 20)
TUNER BAND (page 20, 24)
AUX (page 20)
TAPE I/ll (page 20)
24 ASES / COPY (page 34)
25 REC / STOP (page 33)
26 TIMER STANDBY indicator (page 41, 43)
27 OPEN/CLOSE (page 21, 23)
28 DISC CHANGE (page 23)
29 STANDBY/ON and standby indicator
Press to switch the unit between standby and on. Indicator lights
in standby.
* Manufactured under licence from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
