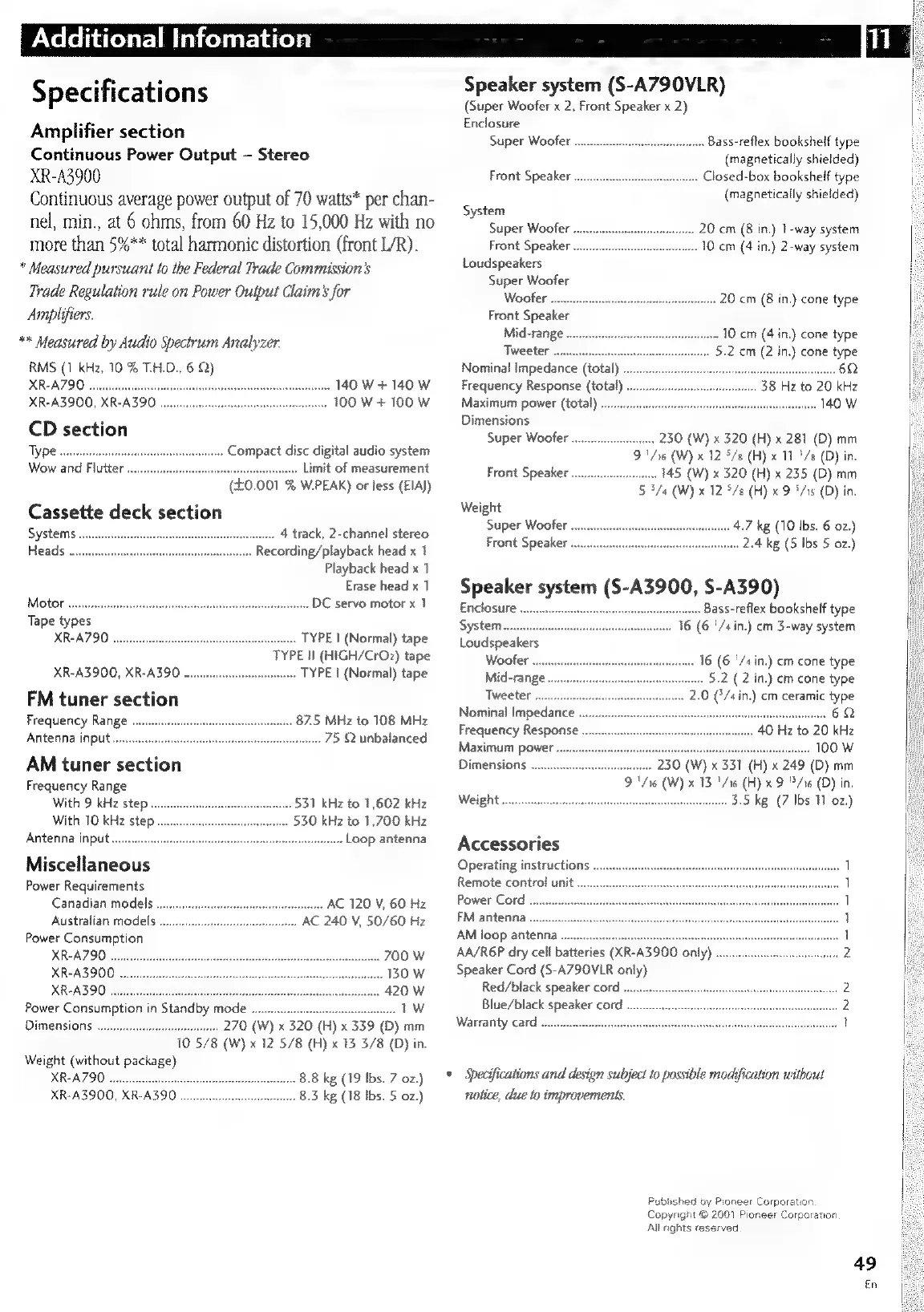

Specifications
Amplifier section
Continuous Power Output ~- Stereo
XR-A3900
Continuous average power output of 70 watts* per chan-
nel, min., at 6 ohms, from 60 Hz to 15,000 Hz with no
more than 5%** total harmonic distortion (front L/R).
* Measured pursuant to the Federal Trade Commission’s
Trade Regulation rule on Power Output Claim:’s for
Amplifiers.
** Measured by Audio Spectrum Analyzer.
RMS (1 kHz, 10 % TH.D., 6 Q)
XR-A790 .... .. 140 W+ 140 W
XR-A3900, XR-A390 . 100 W+ 100 W
CD section
Type Compact disc digital audio system
Limit of measurement
(£0.001 % W.PEAK) or less (EIAJ)
Cassette deck section
Systems ...
Heads ..
Wow and Flutter
4 track, 2-channel stereo
Recording/playback head x 1
Playback head x 1
Erase head x 1
MGROF sinssssonsisnsiseotnendsizensedbvetsecooccencsatuducntgonidasesseabcnnsnace DC servo motor x 1
Tape types
MREAZ IO: sssnsesstecdesteerssecistectleccsontgunchevansntatics TYPE | (Normal) tape
TYPE It (HIGH/CrO2z) tape
XR-A3900, XR-A390 .. . TYPE | (Normal) tape
FM tuner section
Frequency Range vssecsssssuescssssssseneecsssssnieseees 87.5 MHz to 108 MHz
Antenna input 75 Q unbalanced
AM tuner section
Frequency Range
With 9 kHz step.
With 10 kHz step
Antenna input .
Miscellaneous
Power Requirements
Canadian models ....
Australian models ..
Power Consumption
531 kHz to 1,602 kHz
530 kHz to 1,700 kHz
Loop antenna
wee AC 120 V, 60 Hz
AC 240 V, 50/60 Hz
XR-A790 . 700 W
XR-A3900 130 W
XR-A390 . 420 W
Power Consumption in Standby mode . a TW
DIMENSIONS wsercseerssseecrssstessrsseenssnenes 270 (W) x 320 (H) x 339 (D) mm
10 5/8 (W) x 12 5/8 (H) x 13 3/8 (D) in.
Weight (without package)
XR-A790 8.8 kg (19 Ibs. 7 02.)
8.3 kg (18 ibs. 5 oz.)
Speaker system (S-A790VLR)
(Super Woofer x 2, Front Speaker x 2)
Enclosure
Super: Woole tins. nnncksahceeasend Bass-reflex bookshelf type
(magnetically shielded)
Front Speaker... Closed-box bookshelf type
(magnetically shielded)
System
Super Woofer 20 cm (8 in.) 1-way system
Front Speaker 10 cm (4 in.) 2-way system
Loudspeakers
Super Woofer
WO GREG care cicessteteeta RaceaBosatitininttiend 20 cm (8 in.) cone type
Front Speaker
Mid-range .. 10 cm (4 in.) cone type
Tweeter ... 5.2 cm (2 in.) cone type
-6Q
8 Hz to 20 kHz
Nomina! Impedance (total)
Frequency Response (total)
Maximum power (total)
Dimensions
Super Woofer... 230 (W) x 320 (H) x 281 (D) mm
9 '/16 (W) x 12 °/2 (H) x 11 '/s (D) in.
Front Speaker .....-c-sssessesen 145 (W) x 320 (H) x 235 (D) mm
5 3/4 (W) x 12 5/2 (H) x 9 */15 (D) in,
Weight
Super Woofer .
Front Speaker .
4.7 kg (10 Ibs. 6 02.)
2.4 kg (5 Ibs 5 02.)
Speaner: Aye (S-A3900, S-A390)
Enclosure .. ssmsseenee Bass-reflex bookshelf type
Geena RNS nike went 6 (6 '/sin.) cm 3-way system
Loudspeakers
Woofer . 16 (6 '/s in.) cm cone type
Mid-range . 5.2 ( 2 in.) cm cone type
Tweeter .... 2.0 (3/4 in.) cm ceramic type
Nominal Impedance .. ~60
Frequency Response . “40 He to 20 kHz
Maximum power 100 W
Dimensions. -eceseesessseesenensesensnene 230 (W) x 331 (H) x 249 (D) mm
9 "/i6 (W) x 13 '/16 (H) x 9 B/r6 (D) in.
. 3.5 kg (7 lbs 11 02.)
Accessories
Operating instructions
Remote control unit
Power Cord
FM antenna .......
AM loop antenna
AA/R6P dry cell batteries (XR-A3900 only)
Speaker Cord (S-A790VLR only)
Red/black speaker cord
Blue/black speaker cord
Warranty card
Specifications and design subject to possible modification without
notice, due to improvements,
Published by Pioneer Corporation
Copynght © 2001 Pioneer Corparation
All nghts reserved
