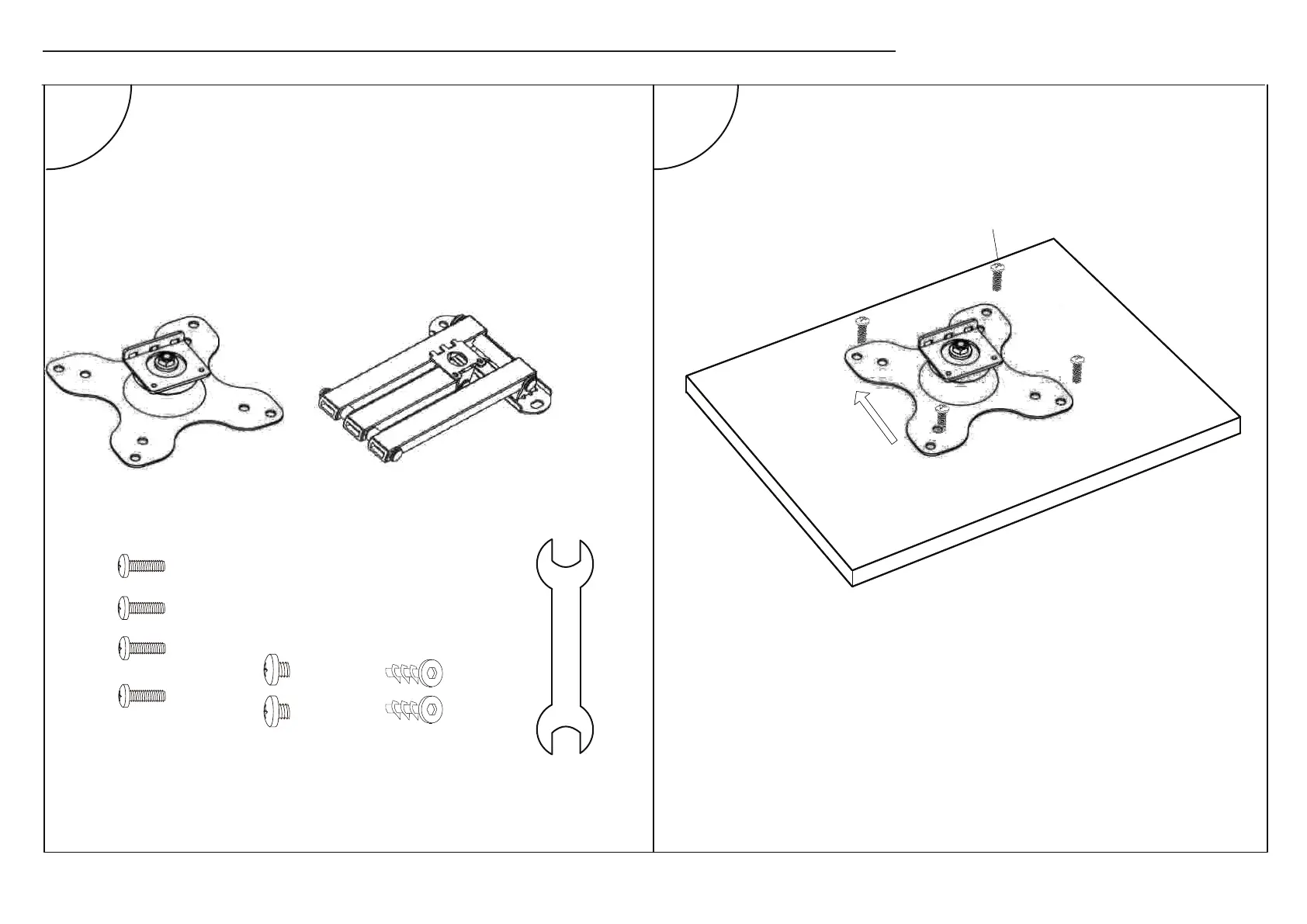

To install your monitor on an Extendable Arm Mount
2x VESA Plate-b
2x Wall Plate &
Articulating Arms-A
4x M4 Bolt - f 2 x M4 Bolt - d
2 x M6 Bolt
Wrench-c
1
This way up.
4 x M4 Bolt-f
This way up.
Carefully place your monitors face down on a
clean, at surface. Attach the VESA Plate-b to the
back of your monitor using the M4 Bolts-f
provided.
