6. Mount assembled base to selected
floor surface (such as a wood
pallet or concrete floor) using
7/16″ mounting holes at ends of
Side Bases and Post Base.
7. Place Bead Breaker Handle (7) into
bracket on side of Center Post until
hole on Handle’s end aligns with
top or bottom holes of the bracket
(depending on the size of the tire.)

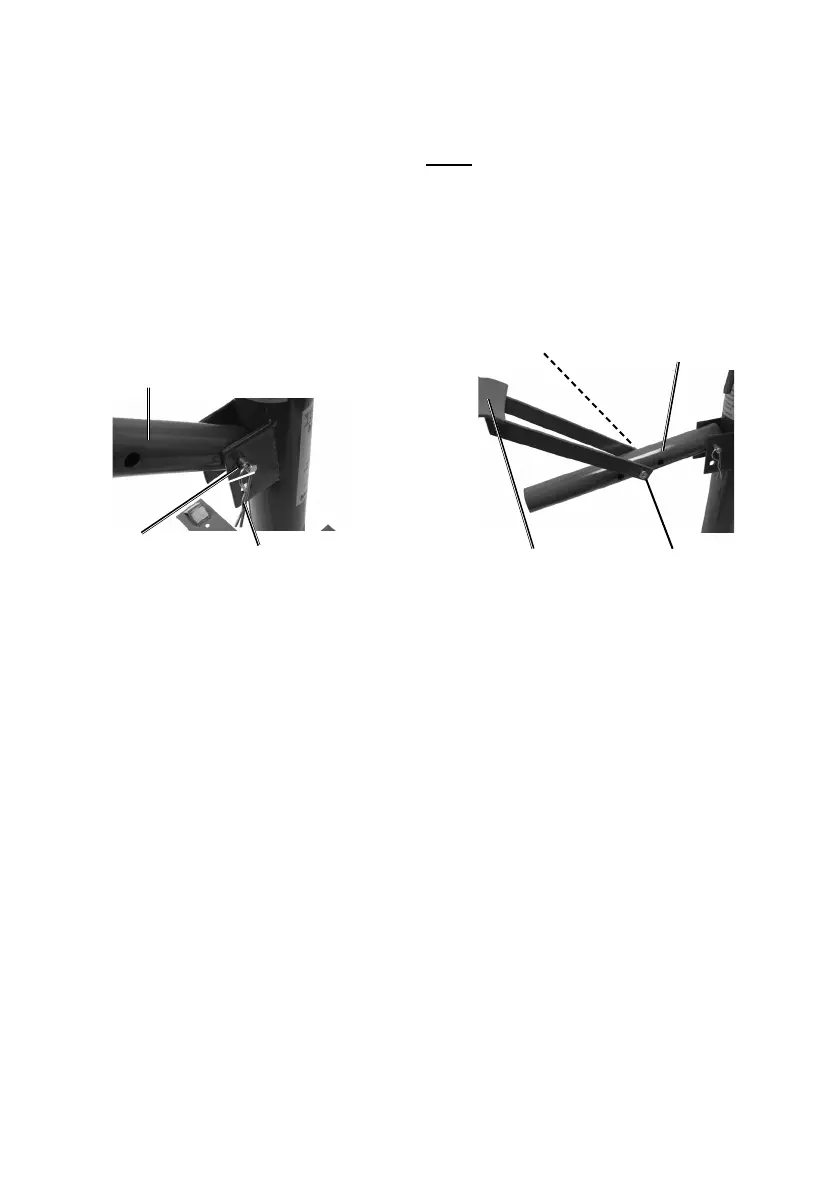

8. Slide a Clevis Pin (5) through
bracket and Bead Breaker Handle,
securing it using R-Clip (8).
Clevis
Pin (5)
R-Clip (8)
Bead Breaker Handle (7)
9. Slide end slots of
Bead Breaker Shoe (10) over
mounting holes along middle
of Bead Breaker Handle.
Note: Closest hole to Center
Post is for smaller tires.
10. Align with end or middle holes
(depending on which tire size).
11. Secure with Clevis Pin (5)
and R-Clip (8).
Bead Breaker
Shoe (10)
Clevis
Pin (5)
Bead Breaker
Handle (7)
R-Clip (8)
