Pittsburgh 61523 - Connect Lift Arm;Shaft Assembly to Base; Attach Extension Beam

Page 4 For technical questions, please call 1-888-866-5797. 61523
SAFETY OPERATION MAINTENANCEASSEMBLY SAFETY OPERATION MAINTENANCEASSEMBLY

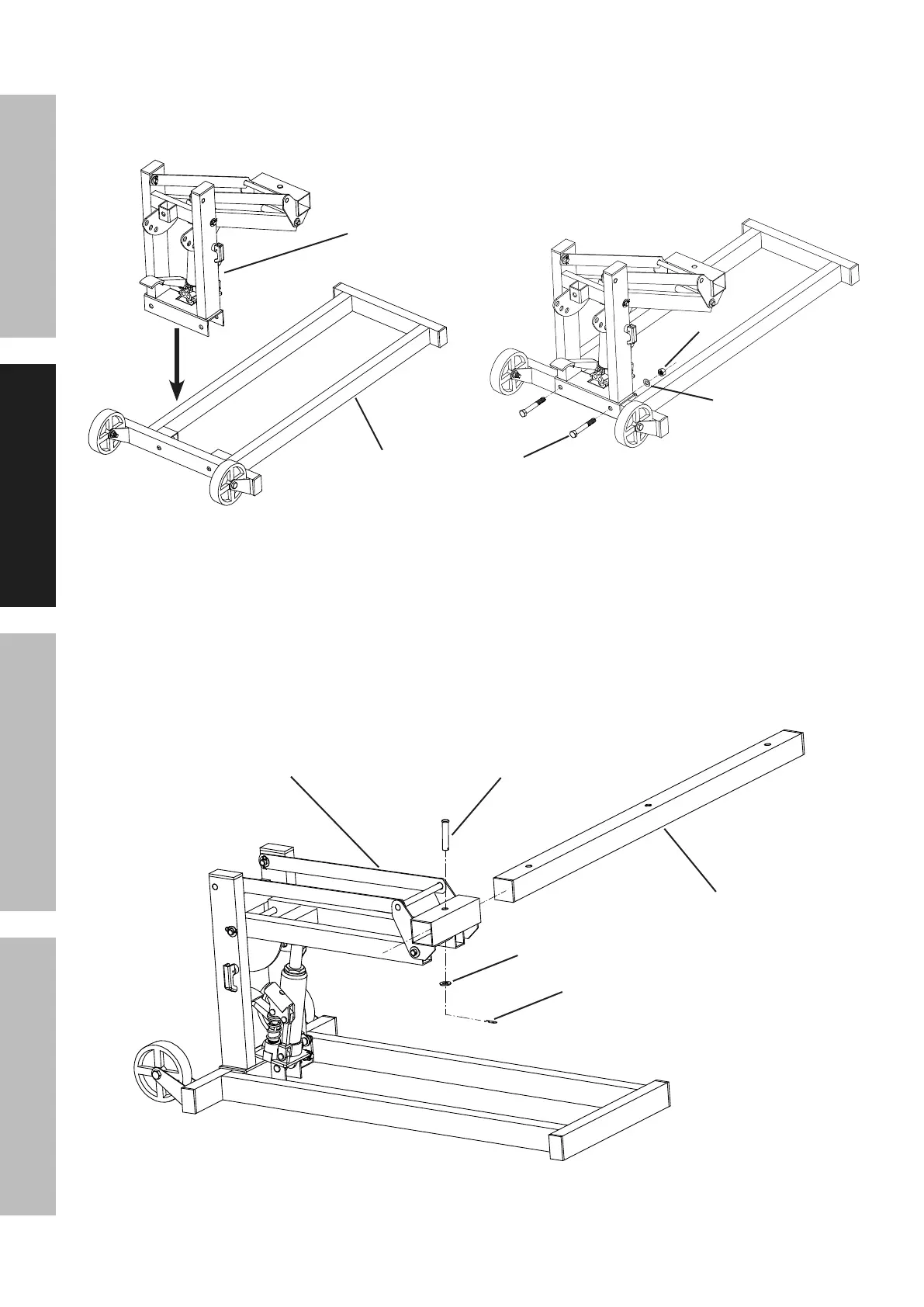

3. Place the Lift Arm / Shaft Assembly onto the wheeled end of the Base (1)
as shown and align the bolt holes.
Secure the Lift Arm / Shaft Assembly to the Base using two Bolts (10),
Lock Washers (9), and Nuts (8).
Lift Arm / Shaft
Assembly
Bolt (10)
Base (1)
Nut (8)
Lock Lock
Washer (9)Washer (9)
Step 3: Connect Lift Arm / Shaft Assembly to Base
4. Insert Extension Beam (33) through the bracket on the Upper Lift Arm (29).
Insert Extension Beam Pin (34) through center of bracket.
Hold Washer (19) over end of Extension Beam Pin and secure it with R-Clip (6).
Upper Lift Arm (29)
Extension Beam Pin
(
34
)
Extension Beam
(
33
)
Washer
(
19
)
R-Clip
(
6
)
Step 4: Attach Extension Beam
