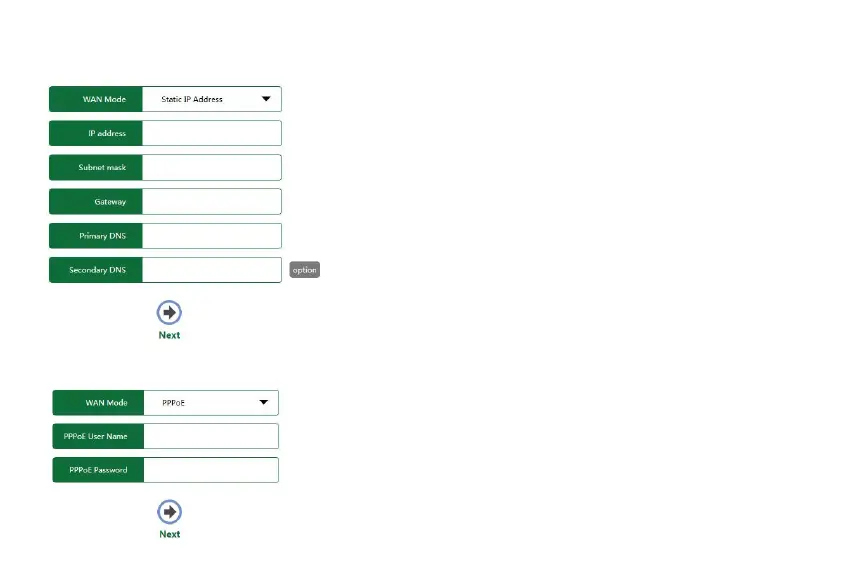

2) If the connection type is Static IP Address, the next screen will appear as shown below. Configure the following
parameters and then click Next to continue.
IP Address - This is the WAN IP address as seen by external users on
the Internet (including your ISP). Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address, it is
Gateway - Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.
Secondary DNS(option) - If your ISP provides another DNS server,
enter it into this field.
3) If the connection type is PPPoE, the next screen will appear as shown below. Configure the following parameters
and then click Next to continue.
PPPoE User Name - Enter the User Name provided by your ISP.
PPPoE Password - Enter the Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please
