Sets the base DMX address from which the control channels will begin.
Shows the main processor software revision. No changes are possible within
this option.
Shows the display controller software revision. No changes are possible within
this option.
Selects the primary internal chase effect. See
Chase effects for descriptions.
Select
MODE
>
EF M to show the selected chase.
Selects the cross fade speed between the steps of the selected
C1 chase effect.
Selects the speed of the selected
C1 chase effect.
Selects the master intensity level of chase effects
C1 and C2.
Selects the secondary internal chase effect. See
Chase effects for descriptions.
Select
MODE
>
EF M to show the selected chase.
Selects the cross fade speed between the steps of the selected
C2 chase effect.
Selects the speed of the selected
C2 chase effect.
Sets the red intensity. Select
MODE
>
MANU (manual) to show the result.
Sets the green intensity. Select
MODE
>
MANU (manual) to show the result.
Sets the blue intensity. Select
MODE
>
MANU (manual) to show the result.
Determines whether this fixture will act as a master controlling others.
When controlled via DMX this fixture must be set to
SLAV.
DMX and 16bt modes only. When set ON this enables the master intensity channel.
When set
oN, this option scrolls through the primary colours at power on to
demonstrate correct operation of the emitters.
Determines the intensity of the four digit control panel display. Values range from
0 (dimmest) to 15 (brightest).
When set to
AOFF, the control panel display will blank out 60 seconds
after the menu is exited. The data dot indicator will remain active.
Allows you to balance the intensities of the red, green and blue emitters in order to
achieve a particular open white colour temperature. See next page for details.
Provides a selection of dimmer curves (
FINE, TV, TUNG or LGCY) to suit particular
circumstances. See next page for descriptions of each option.
RGB control using an external DMX control input.
PERS
>
MINT set to ON provides
a master intensity in
DMX and 16bt modes. No chase effects are selectable.
Displays the resulting RGB levels that are set via the
MAN section of the internal
menu. External DMX control is not possible in this mode.
Ch1 to 3:
C1 Effect, Speed & Xfade, Ch4 to 6: C2 Effect, Speed & Xfade,
Ch7: Master intensity
Displays the chase effect(s) determined within the
PROG section. External DMX
control is not possible in this mode.
DMX Ch1 to 3: RGB colour mixing, Ch4 to 6:
C1 Effect, Speed & Xfade,
Ch7 to 9:
C2 Effect, Speed & Xfade, Ch10: Master intensity.
16bit RGB control using 2x the number of DMX channels determined by
PERS>RES.
PERS>MINT set to On provides a master intensity. No chase effects are selectable.

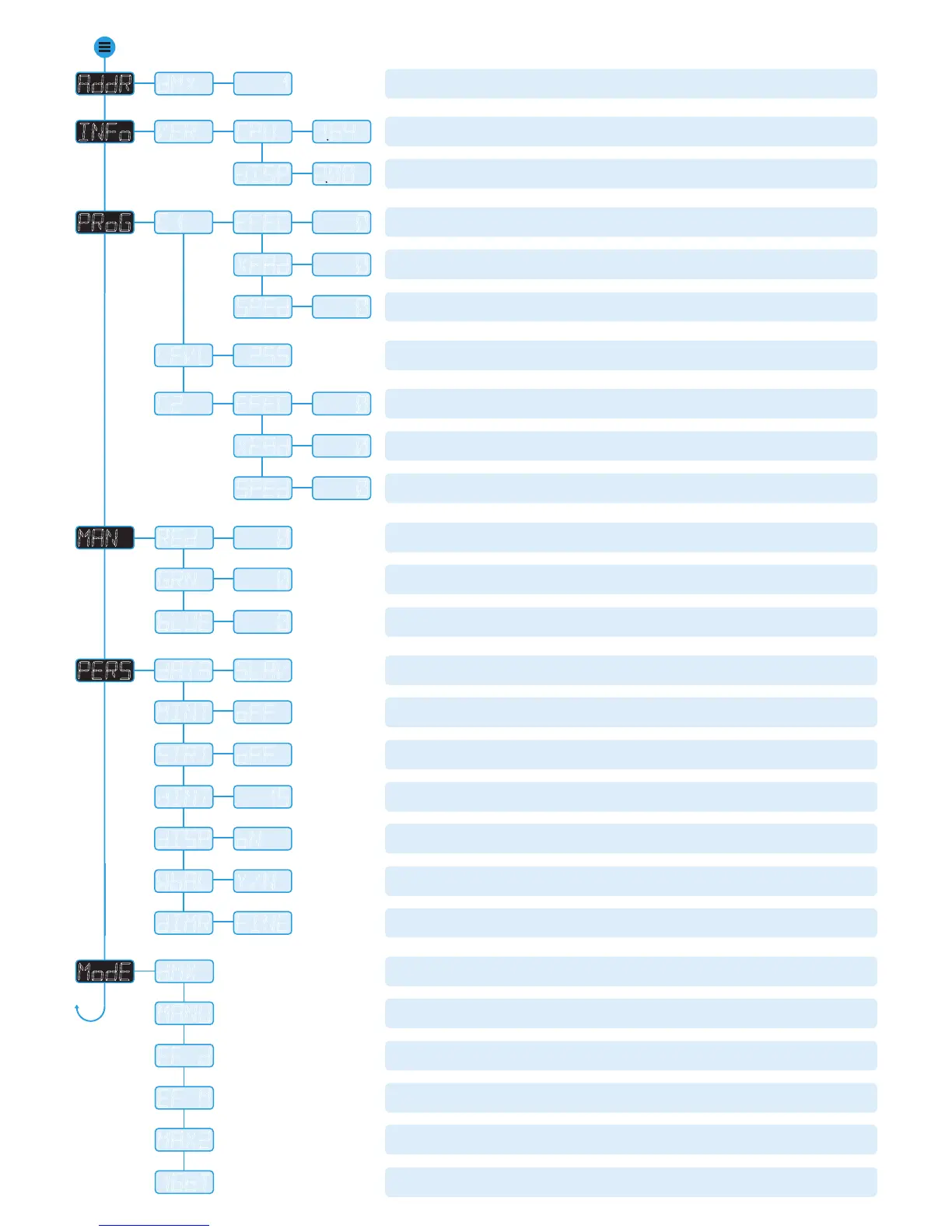

Control menu contents
To Next Page
