PizzaMaster®
Installation – Assembly oven
Assembly for ovens with spacers
Tip! If possible, use a forklift truck to lift the oven to fit
the legs. Alternatively, lift the oven manually on to a
strong table or flat bench, so that the legs can be fitted
safely.
Minimum lift height for fitting of legs:
1-deck oven 110 mm
2-deck oven 110 mm
3-deck oven 110 mm
4-deck oven 110 mm
Approximate weights:
1-deck oven 200 kg
2-deck oven 350 kg
3-deck oven 500 kg
4-deck oven 650 kg
Important!
Do not remove the wooden supports for the
hearthstones until you reach point 5 opposite.
Do not use the oven-door handles or the oven-
vent knobs to lift the oven, for it can damage the
oven.
Warning!
Make sure all 12 bolts for assembly the spacers on
to the oven are in place and proper tightened,
before moving the oven.

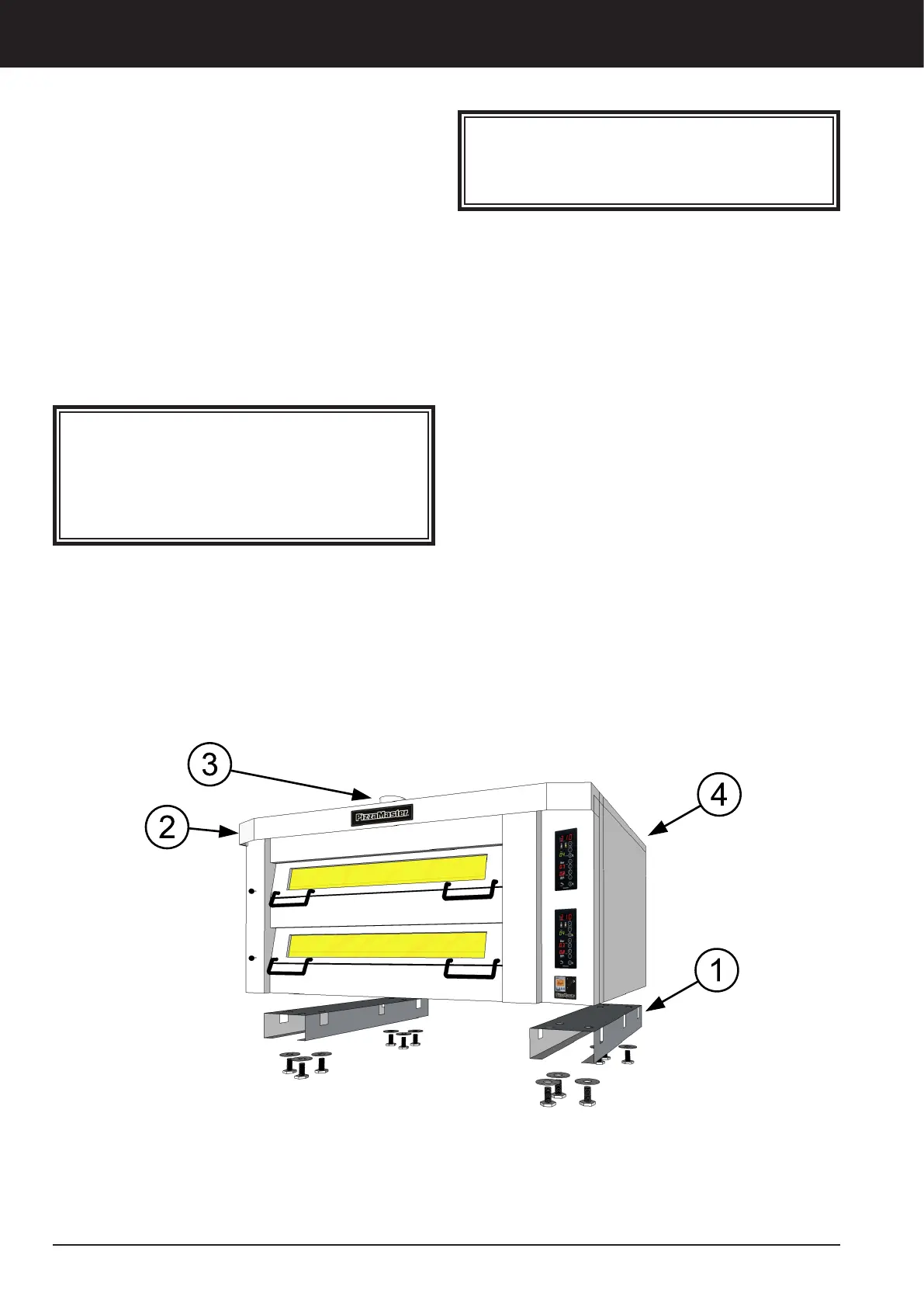

1. Lift the oven and fit the spacers using the M10x30
bolts (12 pcs) + 20x10.5 washers (12 pcs) provided.
For each spacer, first screw in (but do not tighten)
the bolts. When all bults are in place. Now tighten
bolts progressively and alternately to fix the spacer
firmly to the oven.
2. Fit the steam duct, using the screws (wafer head)
provided (no. of screws depending on model).
3. Fit the flue diverter, using the self-tapping screws
(wafer head) provided (3 pcs).
4. Fit the Top side panel (2pcs), using self-tapping
screws (wafer head) (4pcs)
5. Remove the wooden supports that hold the hearth-
stones in place.
6. Remove all protective plastic film from the oven.
