PK PK360 - Assemble Components of Bottom Cast

12 PK360 | OWNER’S GUIDE
ASSEMBLY INSTRUCTIONS
STEP
4

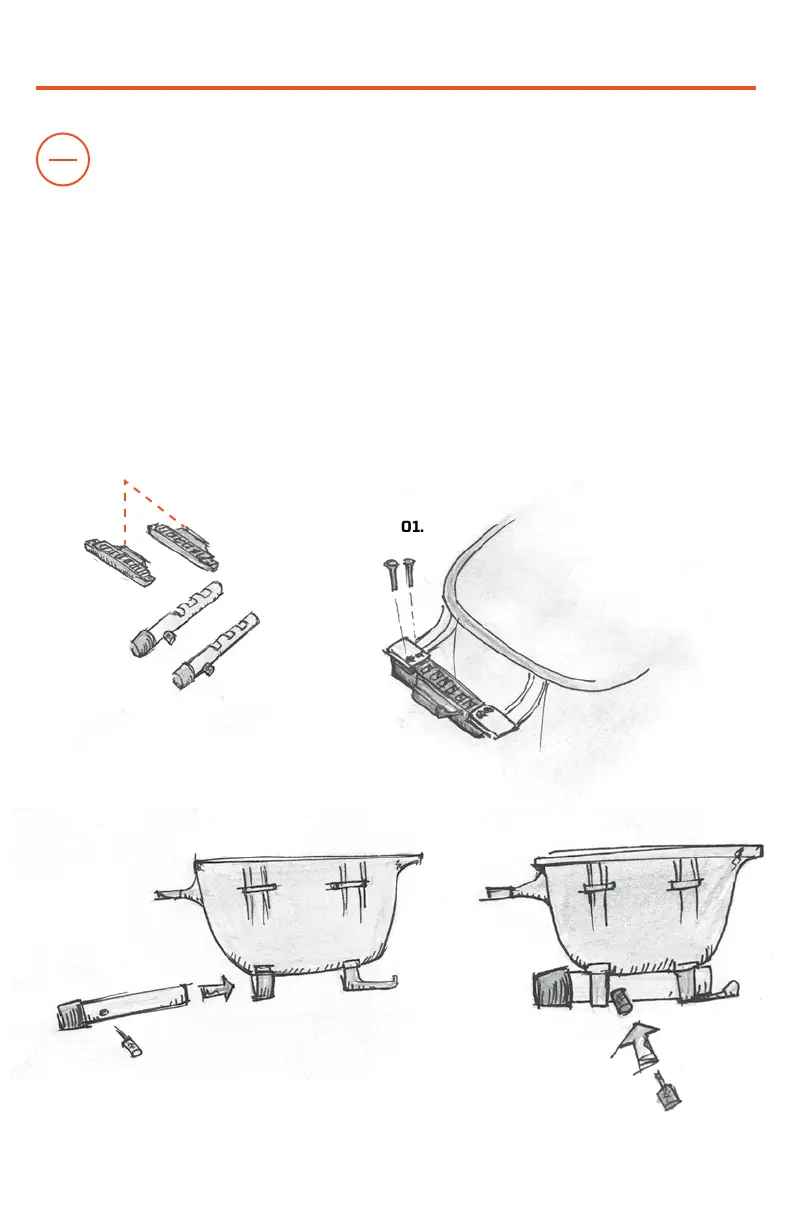

1) Assemble left side handle with hook facing out from Grill Bottom Cast. Repeat
with right handle.
2) Place one Air Intake Cylinder™ (Both Left and Right Intake Cylinder™ are the
same) into left Air Intake Slot on Grill Bottom Cast as shown. Hand tighten
Thumb Screw into hole on Air Intake Cylinder™ to secure in proper position.
Air Intake Cylinder™ should be able to turn 90 degrees when Thumb Screw
is installed properly. Indicator on Air Intake Knob should point up when Air
Intake Cylinder™ holes are in fully open position and point to the right when
Air Intake Cylinder™ holes are in the fully closed position. Repeat with right
Air Intake Cylinder.™
ASSEMBLE COMPONENTS OF BOTTOM CAST AS FOLLOWS:
01.
02.
HOOK
